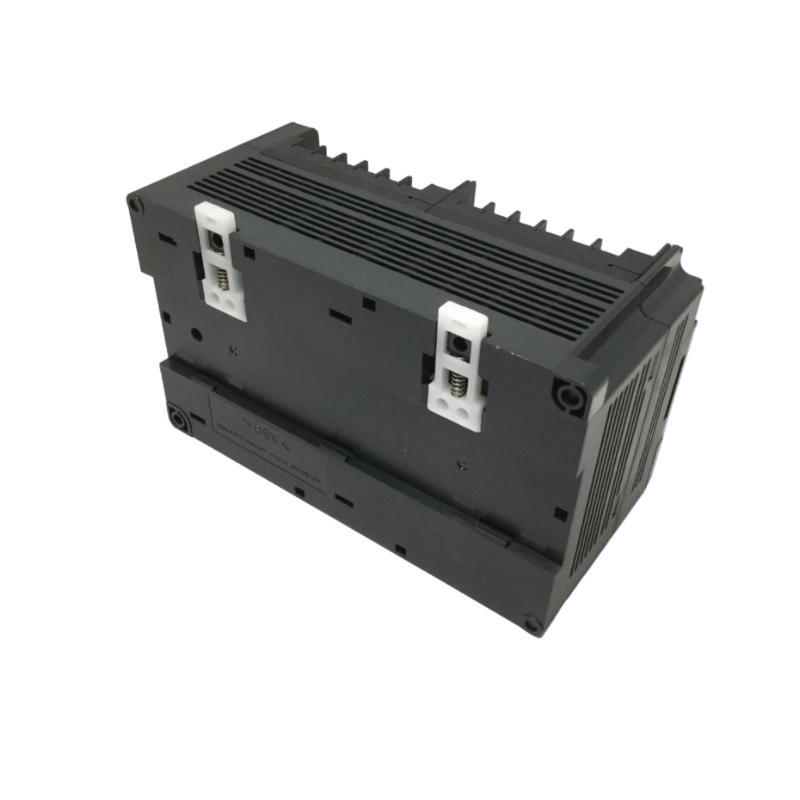

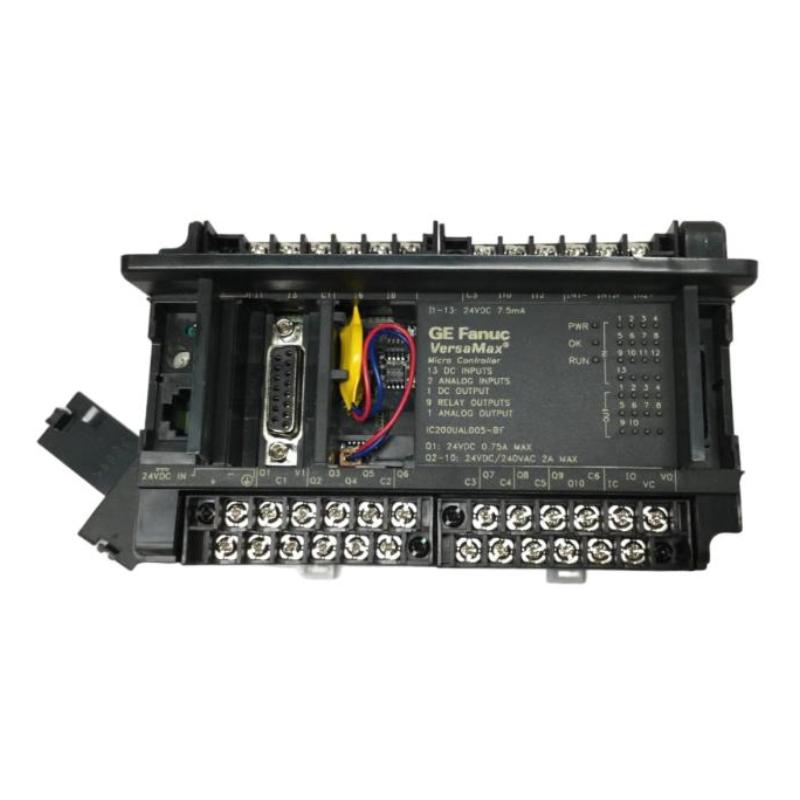

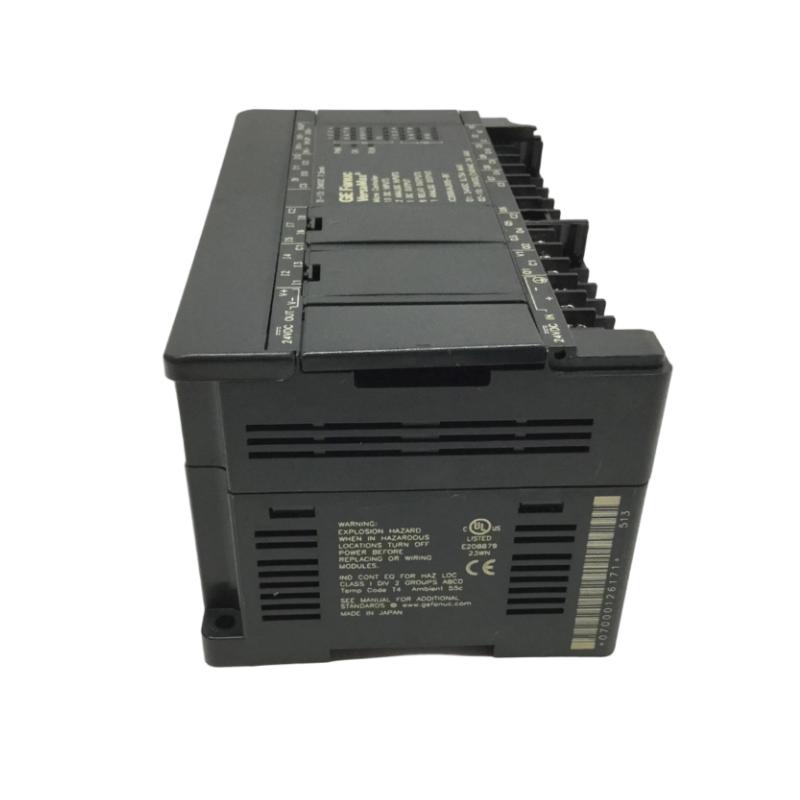

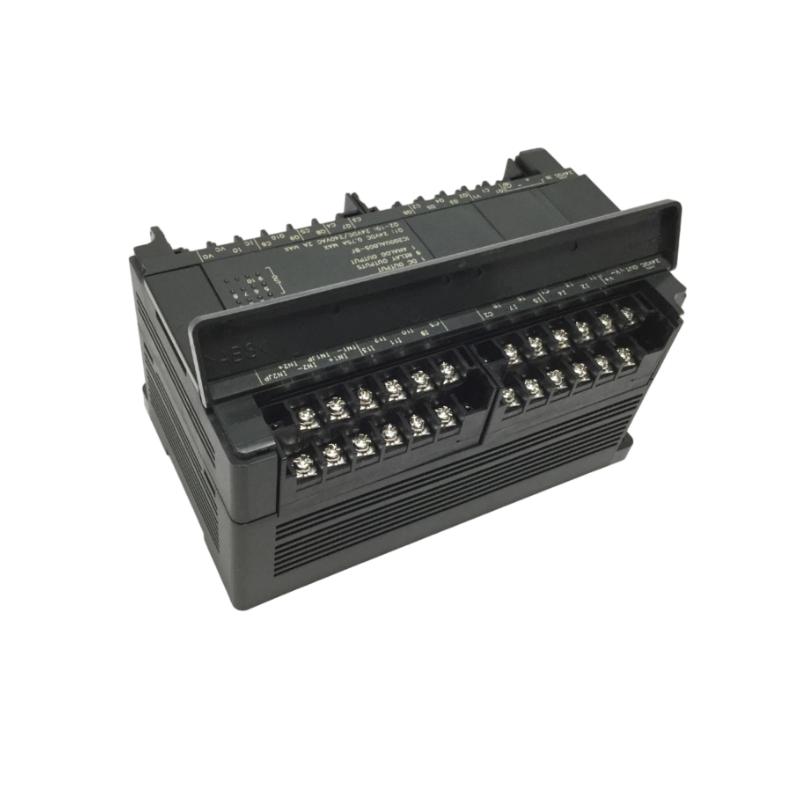

The GE IC200UAL005 is a compact yet powerful VersaMax Micro PLC CPU module that integrates control logic, digital I/O, and analog processing into a single unit. Designed for small to mid-sized automation systems, it provides a complete all-in-one control solution, eliminating the need for multiple separate modules.
With built-in I/O, flexible communication options, and scalable expansion capability, this controller is widely used in OEM equipment, standalone machines, and distributed automation systems where space efficiency and reliability are critical.
Technical Specifications
The IC200UAL005 delivers a balanced combination of digital and analog control with strong processing capability.
| Parameter | Specification |
|---|---|
| Module Type | CPU Module (Micro PLC) |
| Series | GE VersaMax Micro |
| Total I/O Points | 23 points |
| Digital Inputs | 13 × 24VDC |
| Digital Outputs | 1 × 24VDC transistor + 9 × relay outputs |
| Analog Inputs | 2 channels (0–10V / 4–20mA) |
| Analog Outputs | 1 channel |
| Input Voltage | 24 VDC |
| Memory Capacity | 9K logic / 2K registers |
| Scan Time | ~1.1 ms |
| Communication Ports | 2 (RS-232 & RS-485) |
| Expansion Capability | Up to 4 additional I/O modules |
| Mounting | DIN rail |
The controller combines digital and analog control in one unit, simplifying system design and reducing wiring complexity
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~90 × 150 × 76 mm |
| Weight | ~0.3–0.6 kg |
Recommended Related Models
For system expansion or enhanced functionality, the following VersaMax modules are commonly used:
- IC200MDL640 – 24VDC discrete input module
- IC200MDL742 – 32-point output module
- IC200PWR101 – AC power supply module
- IC200PWR012 – DC power supply module
- IC200PBI001 – Profibus communication module
Popular Industrial PLC Alternatives
For similar compact PLC solutions, engineers often evaluate:
- Allen-Bradley MicroLogix 1400 (Compact PLC)
- Siemens S7-1200 series
- Schneider Modicon M221
- GE IC200UDR series (other VersaMax Micro variants)
