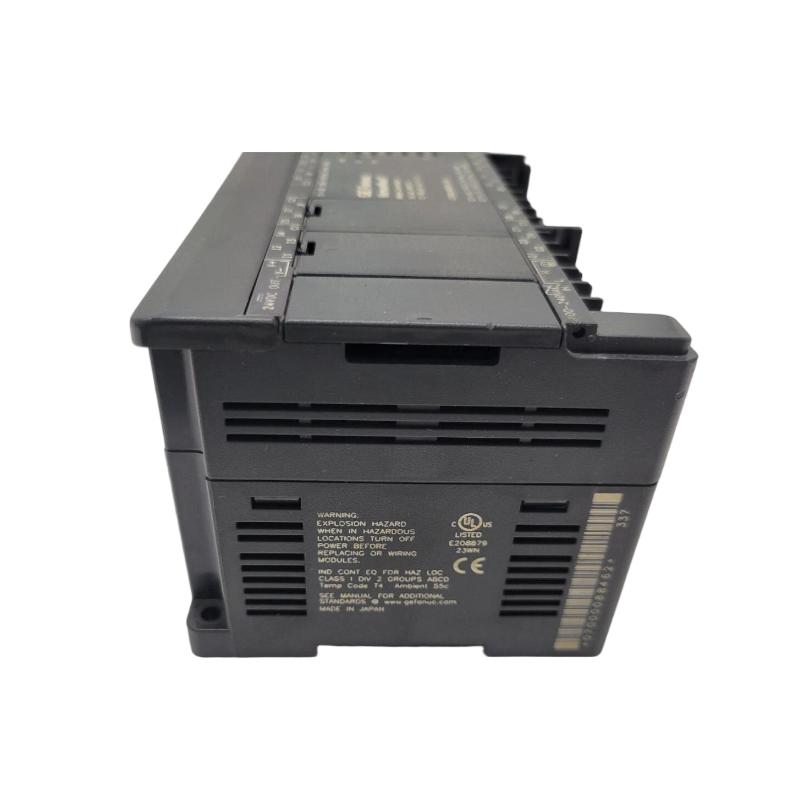

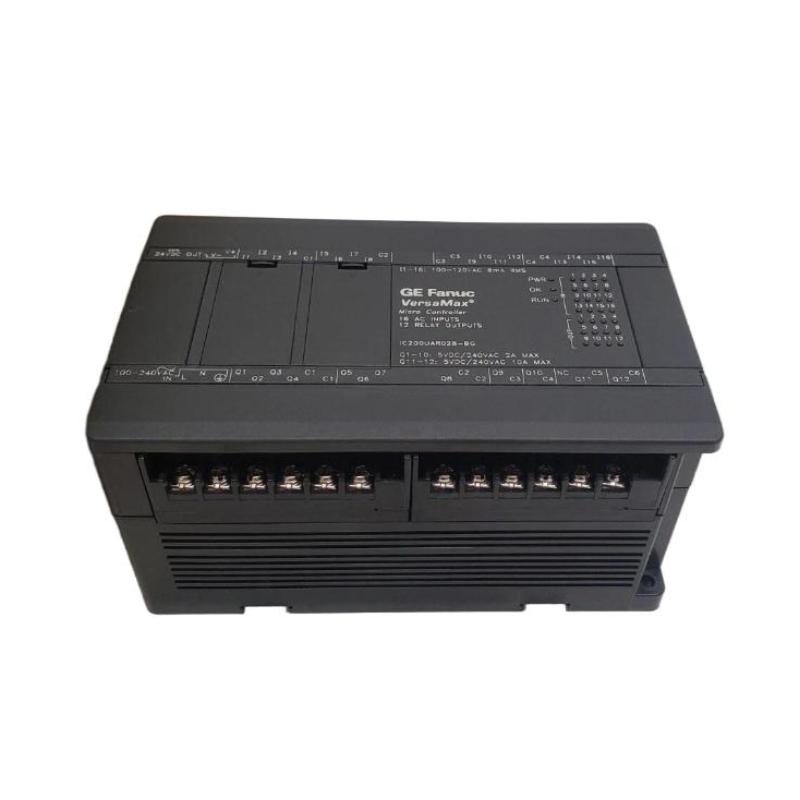

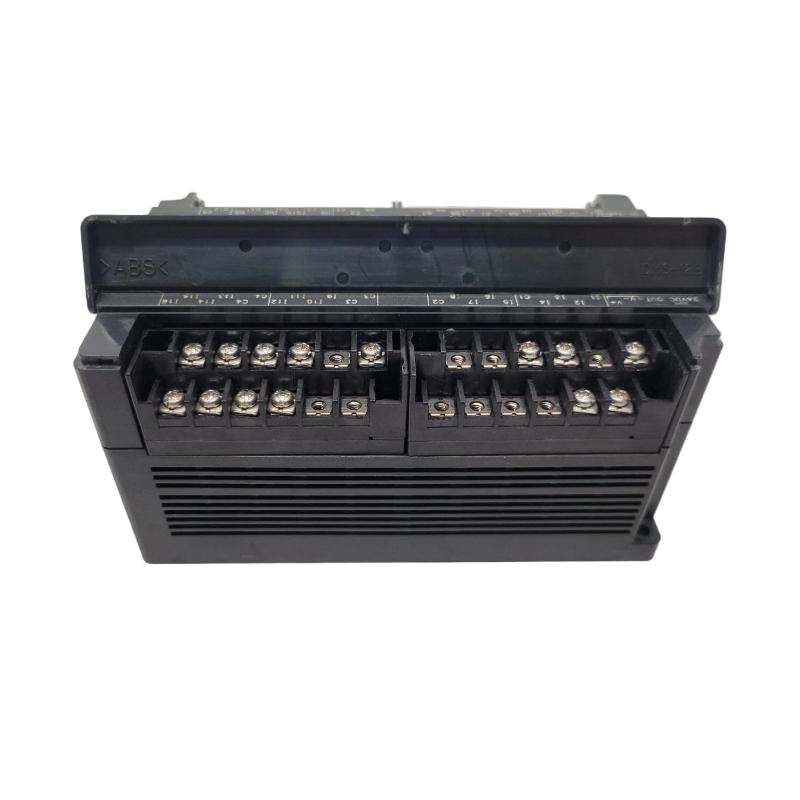

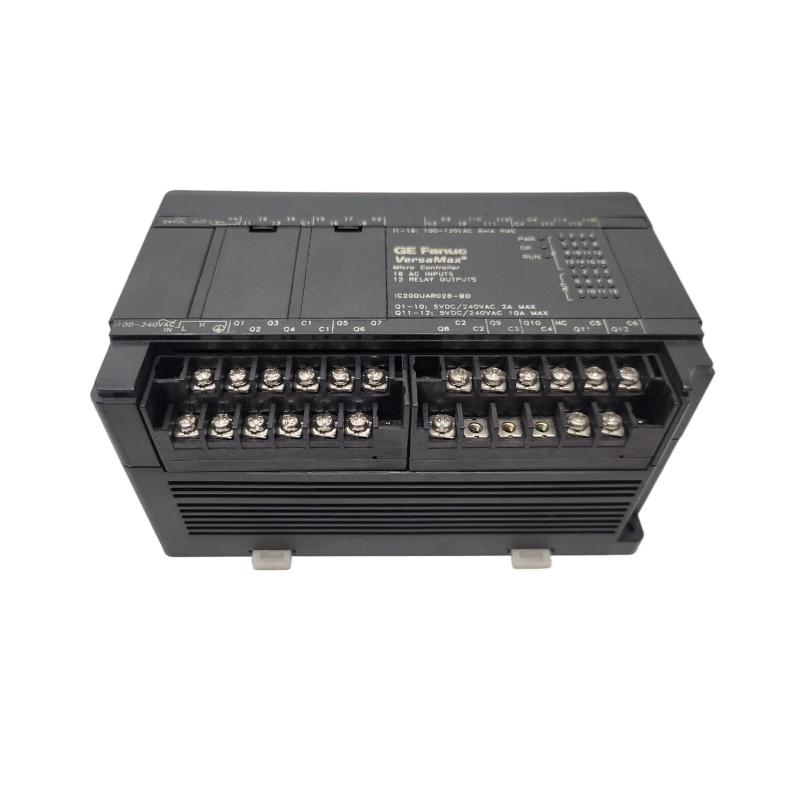

The GE IC200UAR028 is a compact VersaMax Micro PLC controller designed as an all-in-one automation solution combining CPU, I/O, and relay control in a single integrated unit. Built for small to mid-scale industrial applications, it delivers reliable logic processing with built-in field connectivity, reducing the need for multiple separate modules.
This controller is widely used in OEM machinery and standalone automation systems where space efficiency, fast cycle execution, and integrated I/O architecture are essential.
Technical Specifications
The IC200UAR028 integrates control logic and I/O in a compact micro PLC format, supporting mixed input and relay output configurations.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 28 points |
| Digital Inputs | 16 × 120VAC inputs |
| Digital Outputs | 12 relay outputs (2 × 10A, 10 × 2A) |
| Power Supply | 120/240 VAC |
| Scan Time | ~1.1 ms |
| Memory | ~9K logic / 2K data |
| Communication Ports | 2 × serial ports |
| Expansion Capability | Up to 140 I/O (with expansion modules) |
| Data Retention | Requires external battery (IC200ACC403) |
The unit is designed to handle mixed-load industrial environments with both high-current relay outputs and standard control inputs (turn0search4)
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~90 × 150 × 76 mm |
| Weight | ~0.7–0.9 kg |
Recommended Related Models
For expansion or system integration, the following VersaMax modules are commonly paired:
- IC200UAL005 – micro PLC with analog I/O
- IC200MDL640 – 24VDC input module
- IC200MDL741 – DC output module
- IC200PWR101 – AC power supply module
- IC200PBI001 – Profibus communication module
Popular Industrial Alternatives
Engineers often compare this controller with:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- GE VersaMax Micro other UAR/UDR series variants
