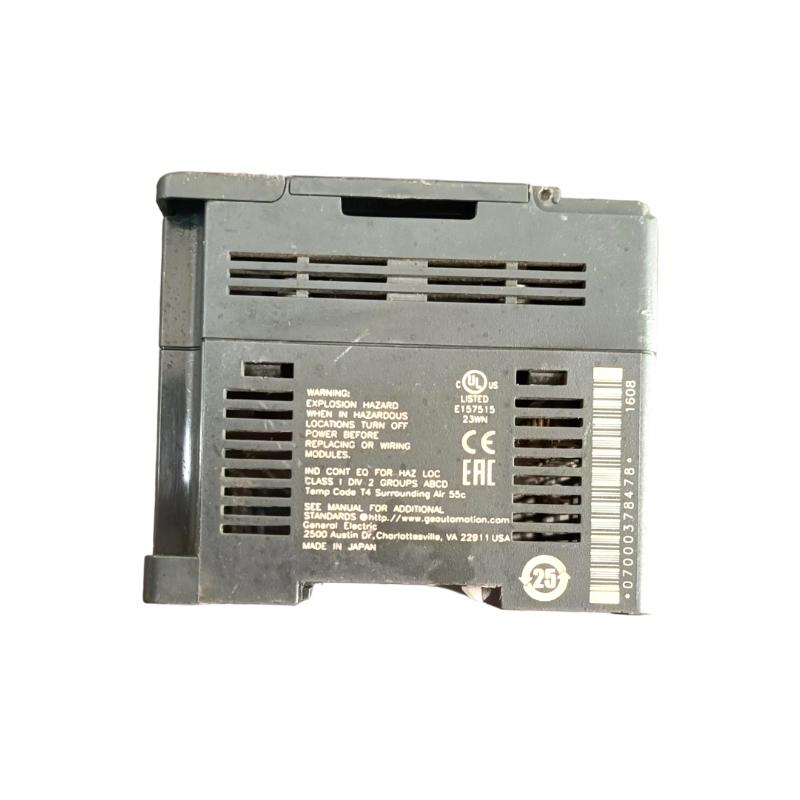

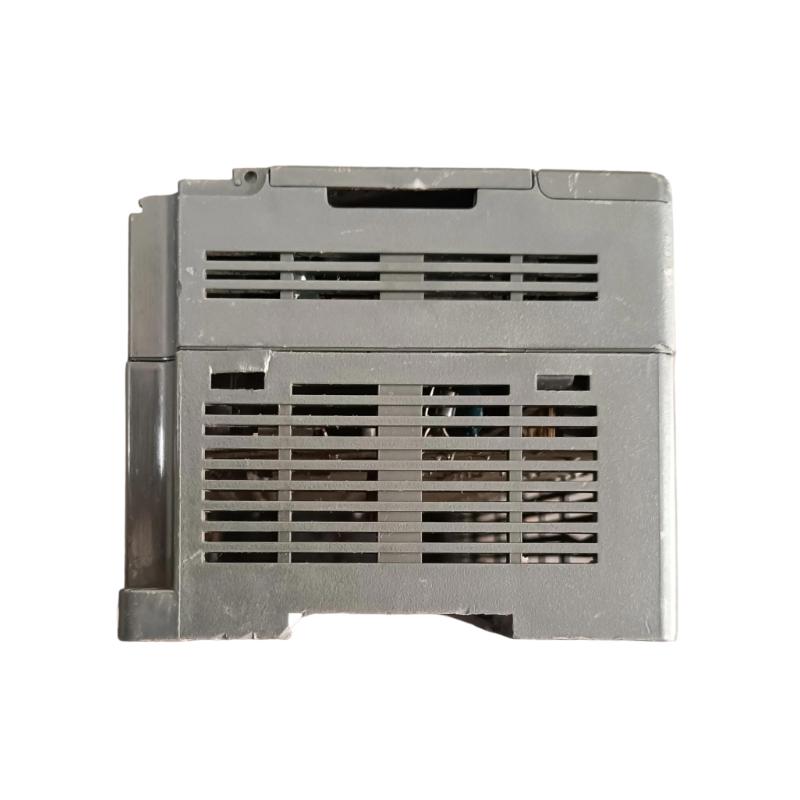

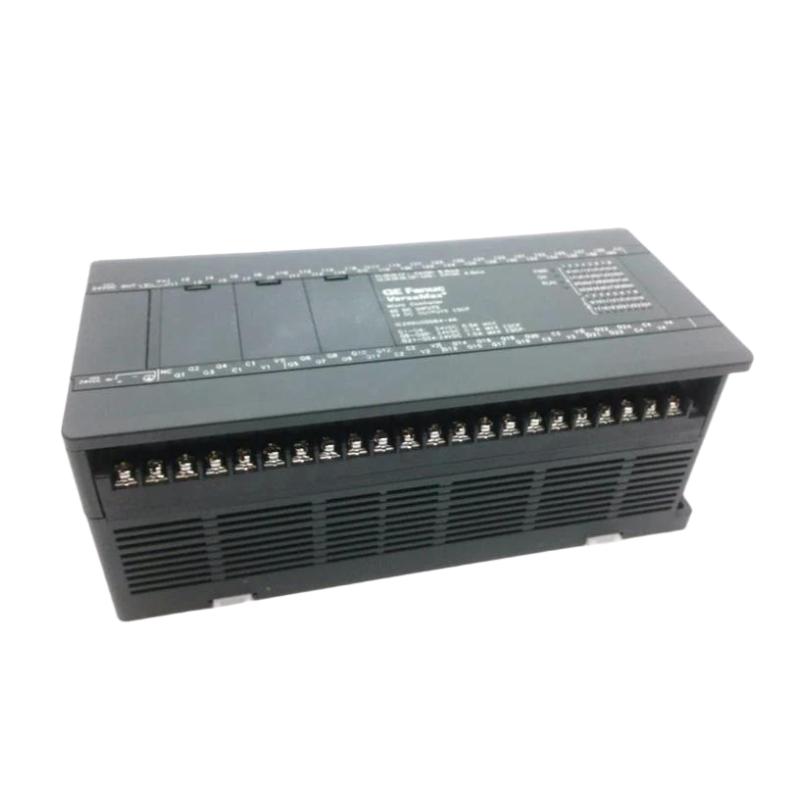

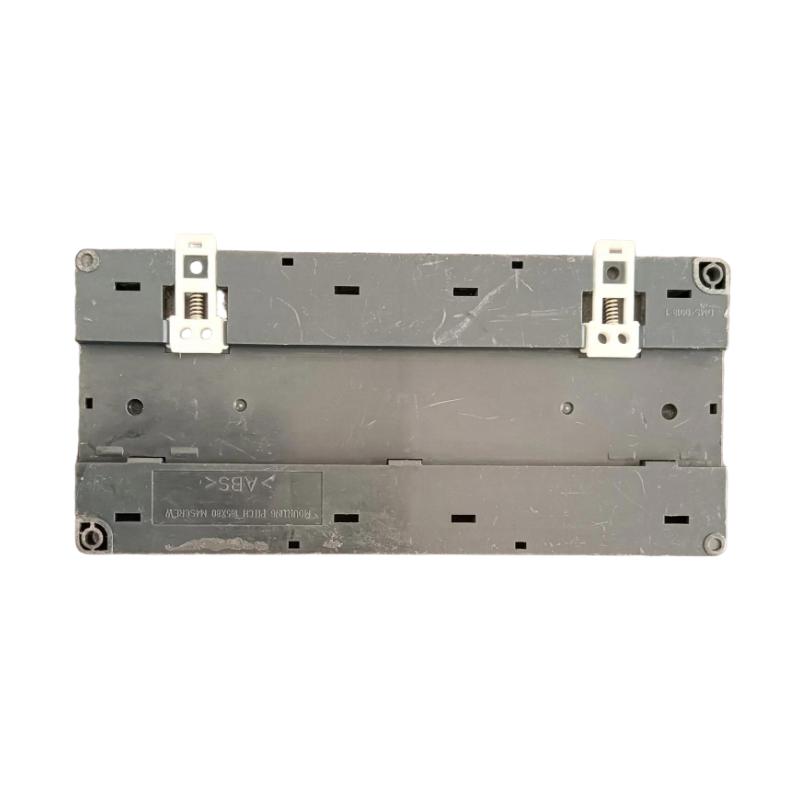

The GE IC200UDD064 is a compact VersaMax Micro PLC controller designed for medium-scale industrial automation systems requiring high I/O density in a small footprint. It integrates CPU, digital inputs, and digital outputs into one modular controller, enabling efficient machine control without the need for separate rack-based architectures.
With its 64-point I/O configuration and fast processing performance, this controller is widely used in OEM machinery, production lines, and compact automation systems where reliability, speed, and space efficiency are critical.
Technical Specifications
The IC200UDD064 delivers strong control capability with a balanced mix of inputs, outputs, and communication options.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 64 points |
| Digital Inputs | 40 × 24VDC (positive/negative logic) |
| Digital Outputs | 24 × 24VDC transistor outputs |
| Output Type | Sourcing transistor outputs |
| Input Voltage | 24VDC (19.2–30VDC range) |
| Power Consumption | ~5W typical |
| Scan Time | ~1.1 ms |
| Memory Capacity | ~24K words logic memory |
| High-Speed Counters | Up to 4 configurable channels |
| Communication Ports | 1 built-in + 1 optional serial port |
| Expansion Capability | Supports up to 4 expansion modules |
The controller supports flexible high-speed counting and real-time control functions, making it suitable for dynamic industrial processes.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~195 × 90 × 76 mm |
| Weight | ~0.5–0.9 kg |
Recommended Related Models
For system expansion or alternative configurations, the following VersaMax modules are commonly paired:
- IC200UAR028 – relay-based micro PLC controller
- IC200UAL005 – analog-capable micro PLC
- IC200MDL640 – 24VDC input module
- IC200MDL741 – DC output module
- IC200PWR102 – AC expanded power supply module
Popular Industrial Alternatives
Engineers often compare this controller with:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- GE VersaMax Micro UDR series variants
