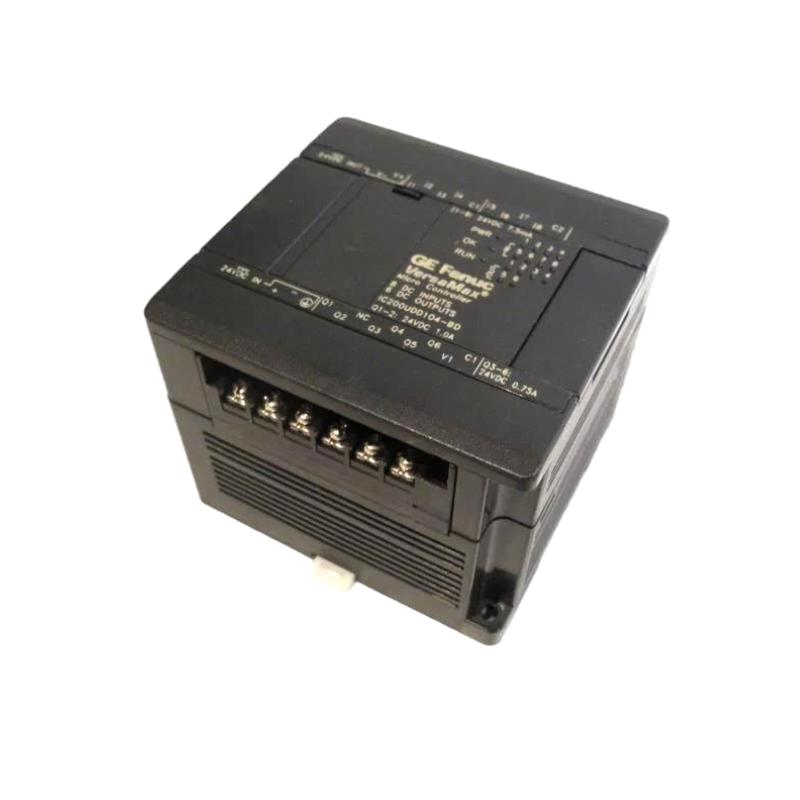

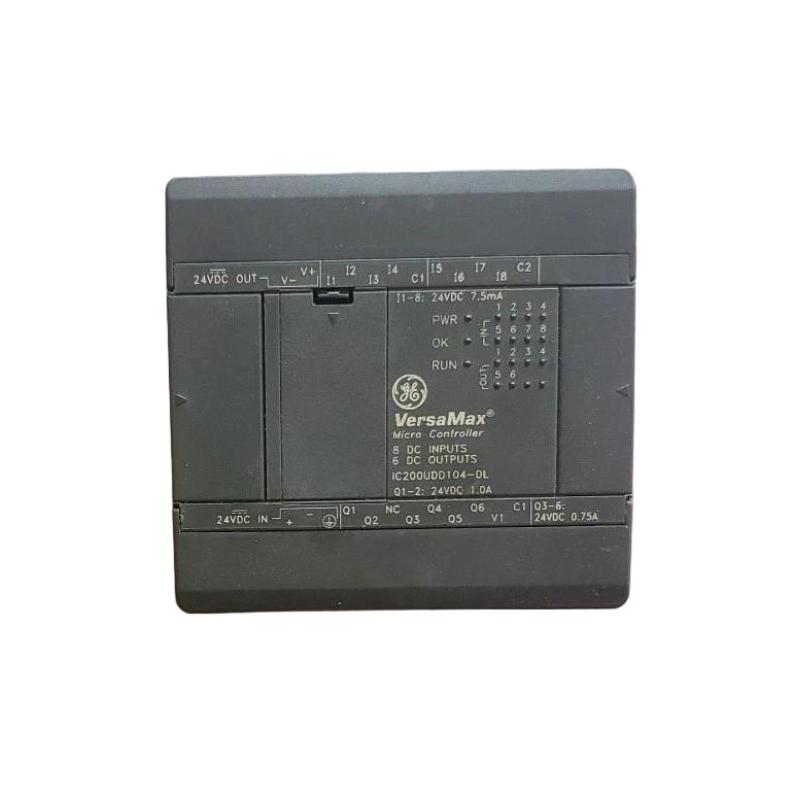

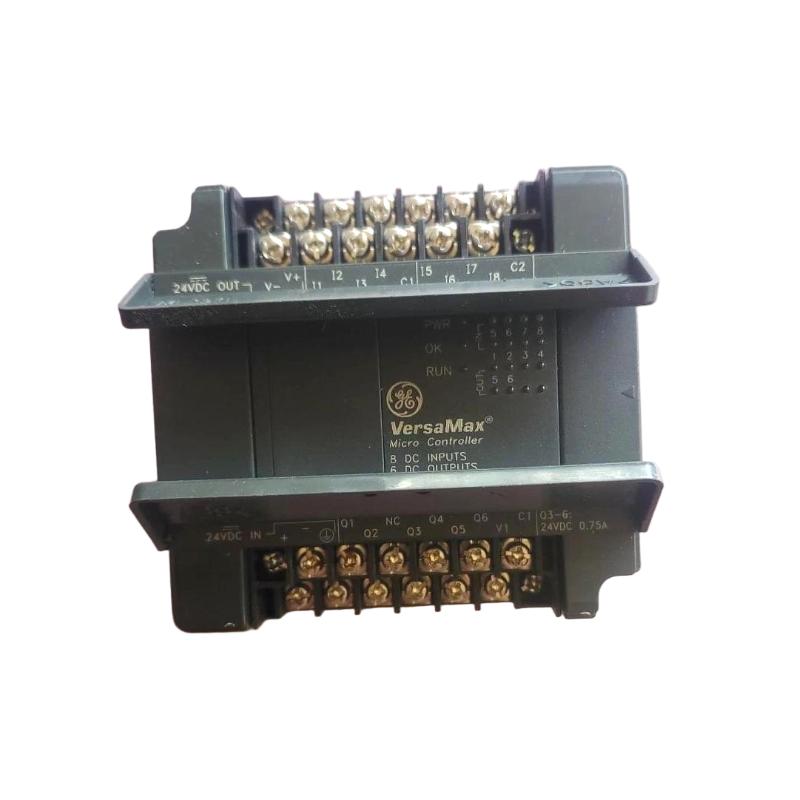

The GE IC200UDD104 is a compact VersaMax Micro PLC controller designed for small industrial automation systems that require a balance of digital inputs, transistor outputs, and high-speed control functions in a single integrated unit.
With its 14 built-in I/O points and expandable architecture, it delivers fast processing, flexible configuration, and reliable performance for OEM machines and compact production systems. Its all-in-one design reduces panel space, wiring complexity, and commissioning time—making it a practical solution for modern industrial control applications.
Technical Specifications
The IC200UDD104 combines discrete control, fast response capability, and flexible communication in a micro PLC format.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 14 points |
| Digital Inputs | 8 × 24VDC inputs |
| Digital Outputs | 6 × DC transistor outputs |
| Output Type | Sourcing transistor outputs |
| Input Voltage | 24VDC (19.2–30VDC range) |
| Power Consumption | ~4W |
| Scan Time | ~1.3 ms |
| Memory | Flash memory (non-volatile) |
| High-Speed Counters | Up to 4 channels (up to 10 kHz) |
| PWM Output | Up to 5 kHz |
| Communication | RS-232 (RJ45), SNP/SNPX, Modbus RTU slave |
| Expansion Capability | Up to 4 expansion modules |
This model supports flexible logic control and fast signal processing, making it suitable for dynamic automation tasks where timing precision is important.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~75 × 75 × 100 mm |
| Weight | ~0.91 kg |
Recommended Related Models
To expand or complement a VersaMax Micro system, these modules are commonly used:
- IC200UAR028 – relay-based micro PLC controller
- IC200UDD064 – higher I/O density micro PLC
- IC200MDL640 – 24VDC input module
- IC200MDL741 – DC output module
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In compact automation designs, engineers often compare:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- GE VersaMax Micro UDR/UDD series variants
