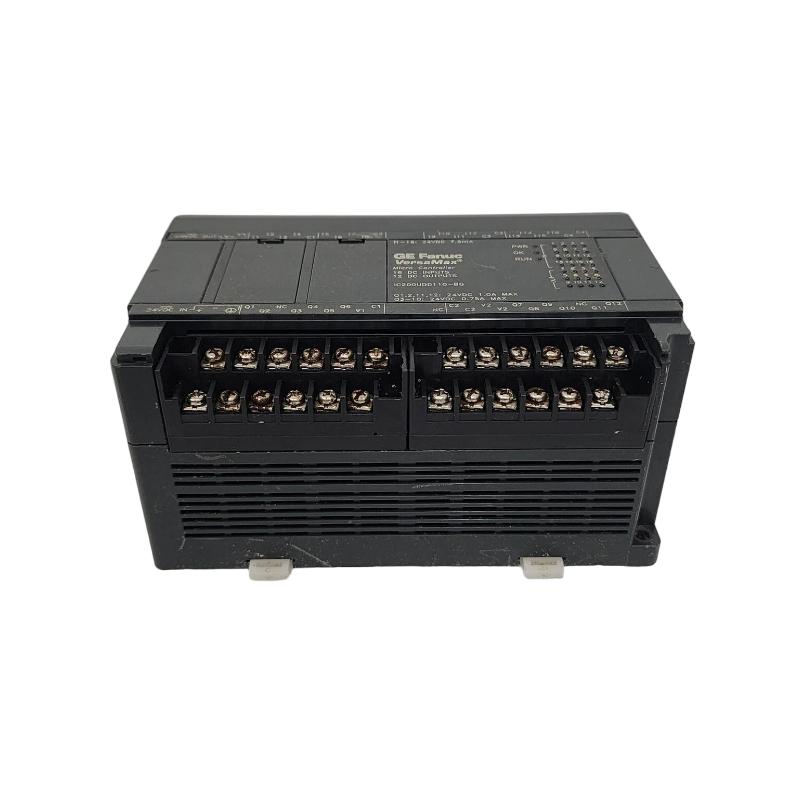

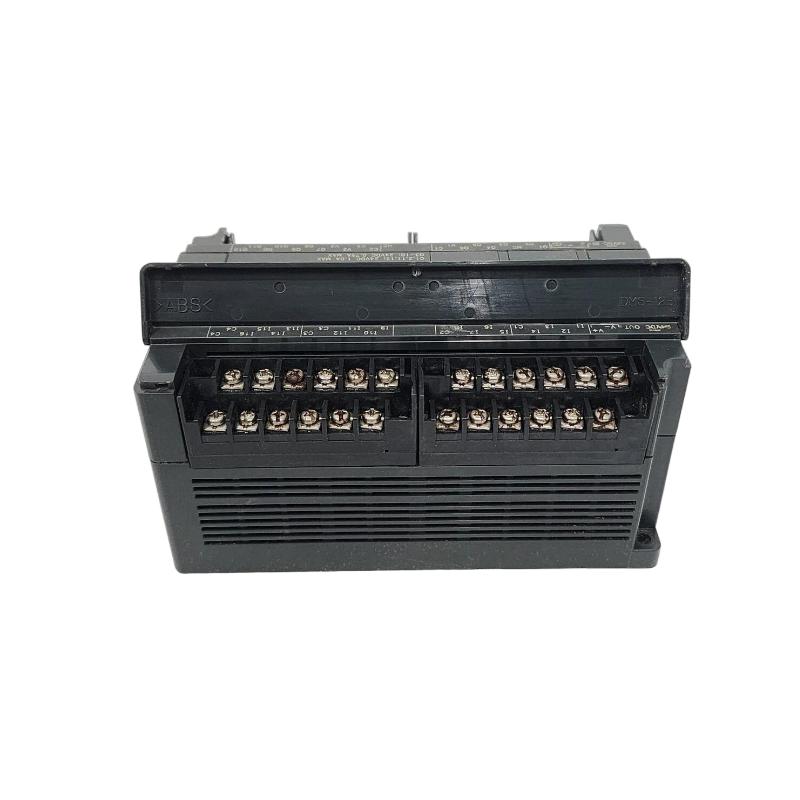

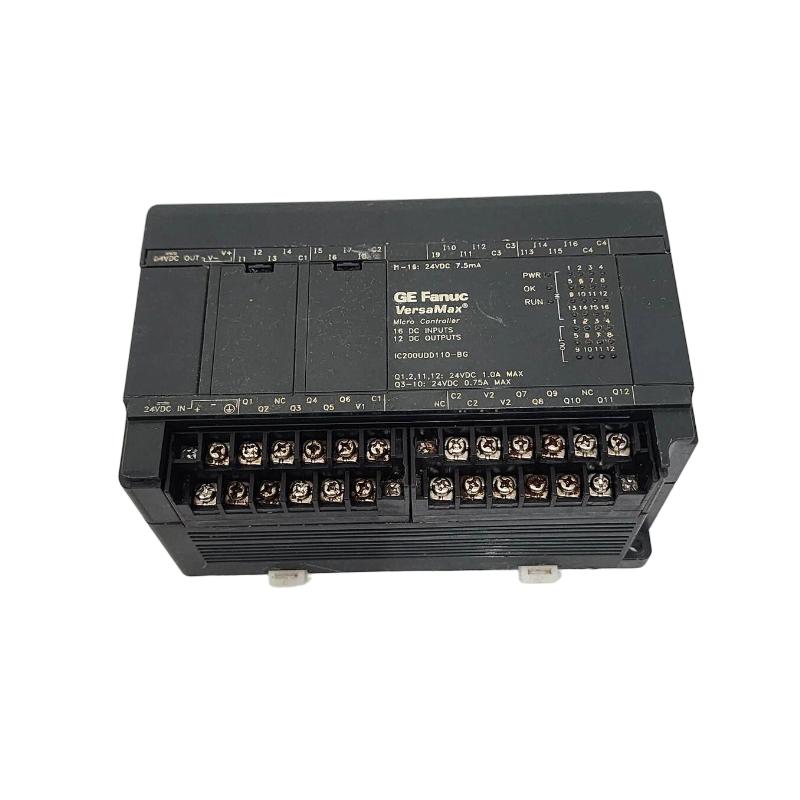

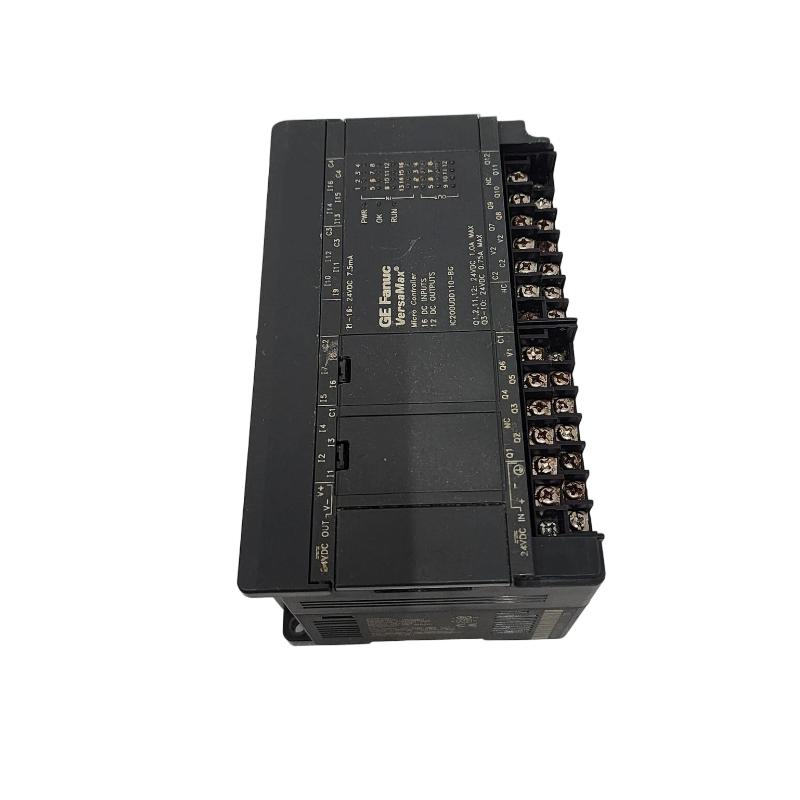

The GE IC200UDD110 is a compact VersaMax Micro PLC controller module designed for small industrial automation systems that require integrated control, fast response, and mixed I/O capability in a single device. With 28 total I/O points and built-in high-speed control functions, it is widely used in OEM machinery and compact production equipment where reliability and space efficiency are critical.
Unlike rack-based PLC systems, this micro controller integrates inputs, outputs, and processing into one unit—helping engineers reduce wiring complexity while maintaining strong industrial performance.
Technical Specifications
The IC200UDD110 is designed for flexible machine-level control with mixed digital I/O and fast switching capability.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 28 points |
| Digital Inputs | 16 × 24VDC (positive logic) |
| Digital Outputs | 12 × 24VDC transistor outputs |
| Output Grouping | 2 isolated output groups |
| Max Output Load | 0.5A per channel / up to 1A on selected outputs |
| Input Voltage Range | 19.2–30 VDC |
| Built-in Power Supply | 24VDC auxiliary output (up to 200 mA) |
| High-Speed Counters | Up to 4 A-type or mixed A/B configuration |
| Response Time | ~0.1 ms switching capability |
| Isolation | 1500V RMS field-to-logic isolation |
| Communication | Serial communication support (Modbus/GE protocols) |
The controller is optimized for fast industrial switching, supporting high-speed counters and precise control in compact systems.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~90 × 150 × 76 mm |
| Weight | ~0.46–0.9 kg |
Recommended Related Models
For system expansion or alternative configurations, the following VersaMax Micro modules are commonly paired:
- IC200UDD104 – 14-point compact micro PLC
- IC200UDD064 – 64-point high-density micro PLC
- IC200UAR028 – relay output micro PLC controller
- IC200UAL005 – analog-capable micro PLC
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
Engineers often compare this model with:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- GE VersaMax Micro UDD/UDR family variants
