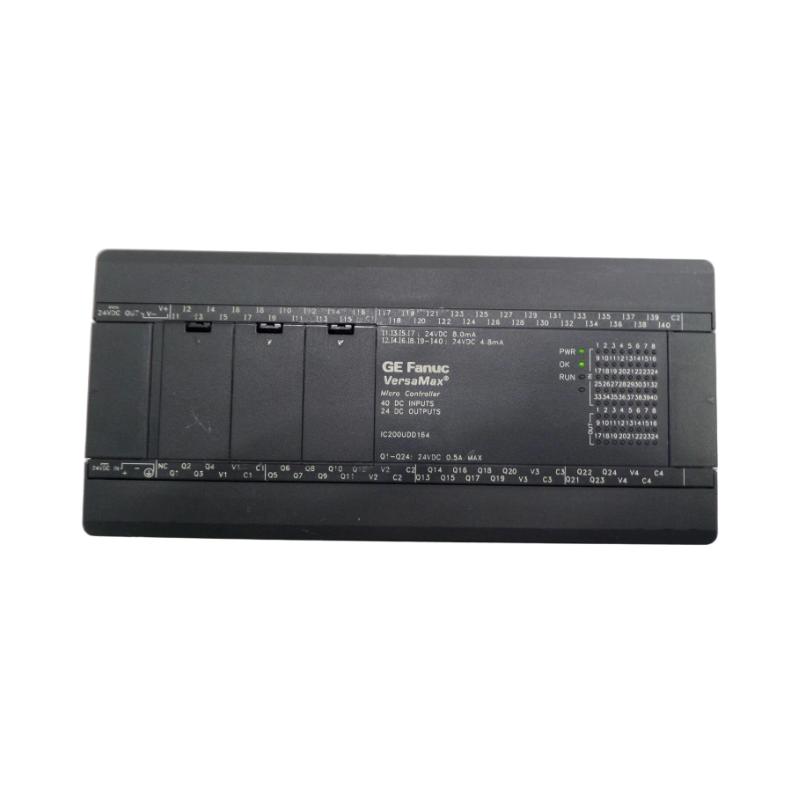

The GE IC200UDD164 is a high-density VersaMax Micro PLC controller designed for compact yet powerful industrial automation applications. It integrates CPU, 64-point digital I/O, and high-speed control functions into a single module, making it a strong choice for OEM machines and mid-scale production systems that require reliable real-time control in a space-saving design.
With its combination of 40 DC inputs and 24 transistor outputs, this controller is built for applications that demand both control flexibility and fast execution performance in distributed automation environments.
Technical Specifications
The IC200UDD164 delivers strong control capability with expanded I/O density and industrial-grade processing performance.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 64 points |
| Digital Inputs | 40 × 24VDC inputs |
| Digital Outputs | 24 × 24VDC transistor outputs |
| Output Type | Sinking transistor outputs |
| Input Voltage Range | 19.2–30 VDC |
| Input Logic | Positive/negative selectable |
| Output Load Capacity | Up to 0.5A per point (typical design range) |
| Power Consumption | ~5W |
| High-Speed Counters | Up to 4 channels |
| Counter Speed | Up to 100 kHz |
| Memory Capacity | ~24K logic / 32K registers |
| Communication | RS-232 + optional second communication port |
| Expansion Capability | Up to 4 expansion modules |
The controller supports fast-cycle processing and flexible I/O expansion, making it suitable for complex machine-level automation tasks.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~190 × 90 × 76 mm |
| Weight | ~0.7 kg |
Recommended Related Models
To build a complete VersaMax Micro system, the following modules are commonly used:
- IC200UDD110 – 28-point micro PLC controller
- IC200UDD120 – enhanced 28-point controller variant
- IC200UDD064 – 64-point compact micro PLC
- IC200UAR028 – relay output micro PLC
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar automation architectures, engineers often consider:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX Series PLCs
- Other GE VersaMax Micro UDR/UDD variants
