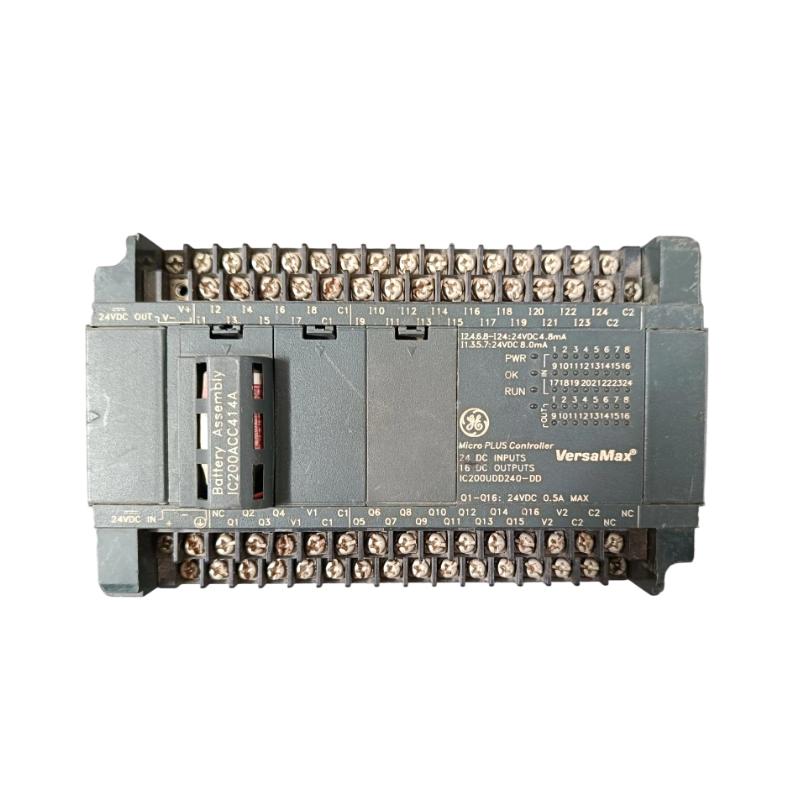

The GE IC200UDD240 is a high-performance VersaMax Micro PLC controller designed for compact industrial automation systems requiring high I/O density, fast processing, and flexible DC control in a single integrated module.
With 40 total I/O points, built-in high-speed counter functions, and a powerful 24VDC architecture, this controller is widely used in OEM machinery and production systems where precision control and compact design must work together without compromise.
Technical Specifications
The IC200UDD240 integrates CPU, I/O, and communication functions into a unified micro PLC platform optimized for industrial performance.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 40 points |
| Digital Inputs | 24 × 24VDC (positive/negative logic) |
| Digital Outputs | 16 × 24VDC transistor (sink) |
| Input Voltage Range | 19.2–30 VDC |
| Rated Power Supply | 24 VDC |
| Input Power Consumption | ~5 W |
| Input Current | ~0.2 A typical @ 24VDC |
| Output Type | DC transistor outputs |
| High-Speed Counters | Up to 4 channels (A/B types supported) |
| Counter Functions | Standard, PTO, PWM, ramping support |
| Hold-up Time | ~10 ms @ 19.2VDC |
| Inrush Current | Up to 1A |
| Communication Ports | 1 serial + optional expansion port |
| Memory | ~24K logic memory |
| Expansion Capability | Supports up to 4 expansion modules |
The system is engineered for real-time control, supporting both standard and motion-related pulse outputs for industrial automation tasks.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~96 × 124 × 73 mm |
| Weight | ~0.12–0.9 kg (depending on configuration) |
Recommended Related Models
To build a scalable VersaMax Micro system, the IC200UDD240 is often paired with:
- IC200UDD164 – higher-density 64-point micro PLC
- IC200UDD120 – 28-point DC controller
- IC200UAR028 – relay output micro PLC
- IC200UAL005 – analog-capable micro PLC
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar compact PLC applications, engineers often compare:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX series PLCs
- Other GE VersaMax Micro UDR/UDD variants
