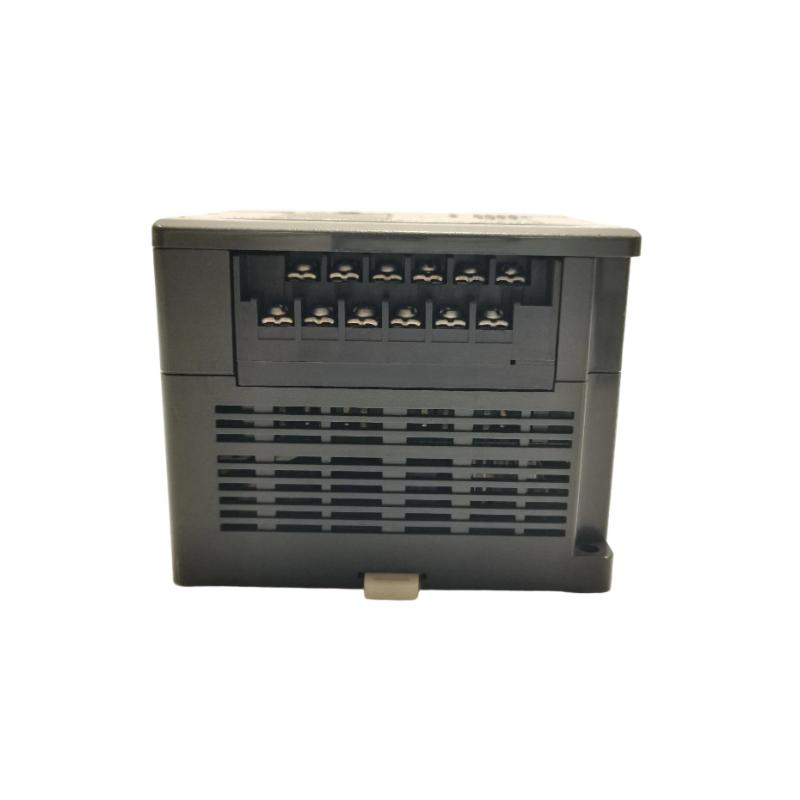

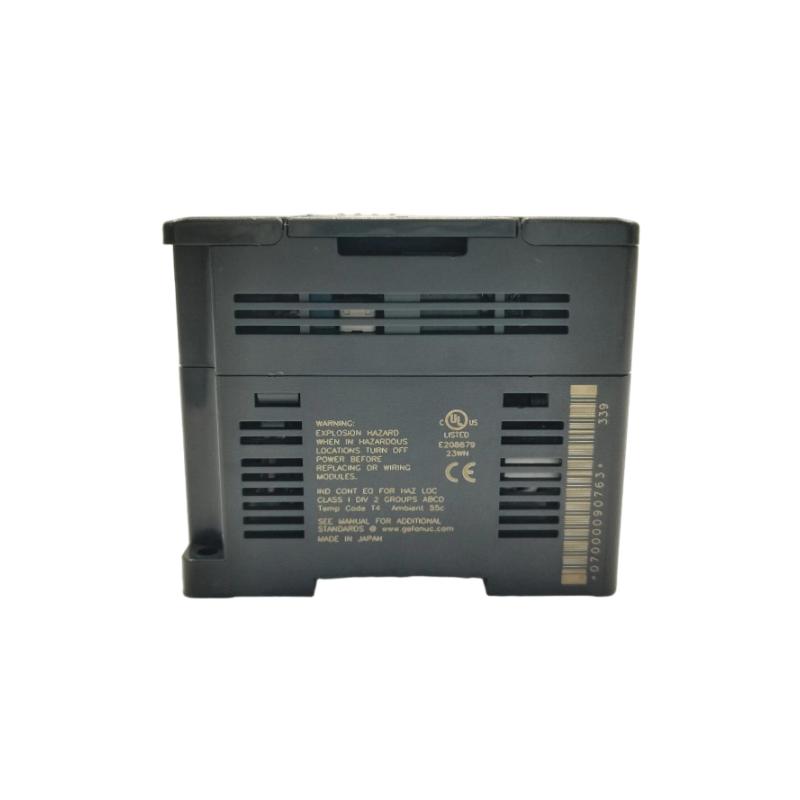

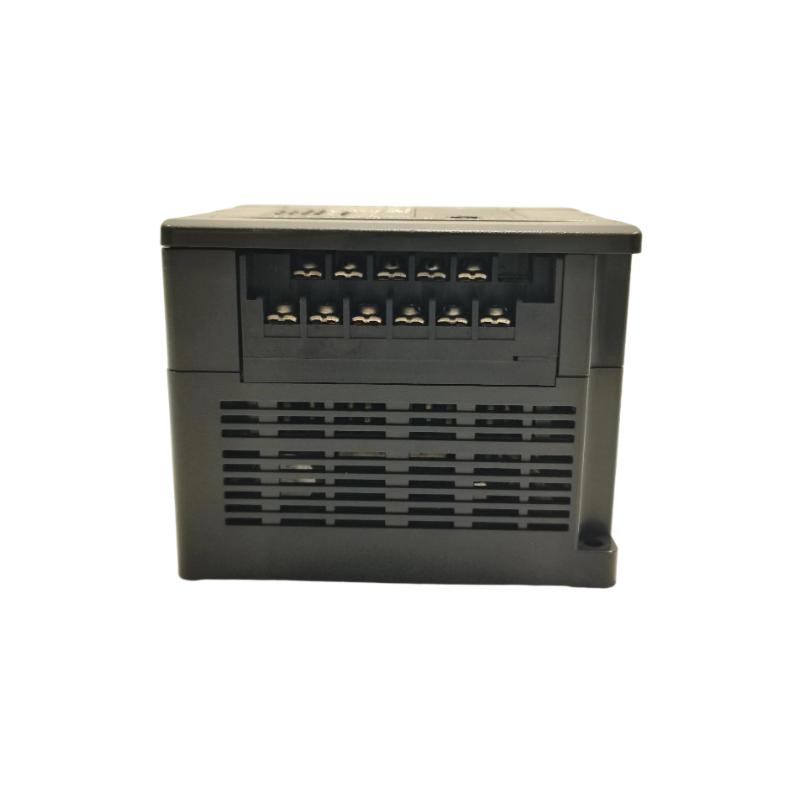

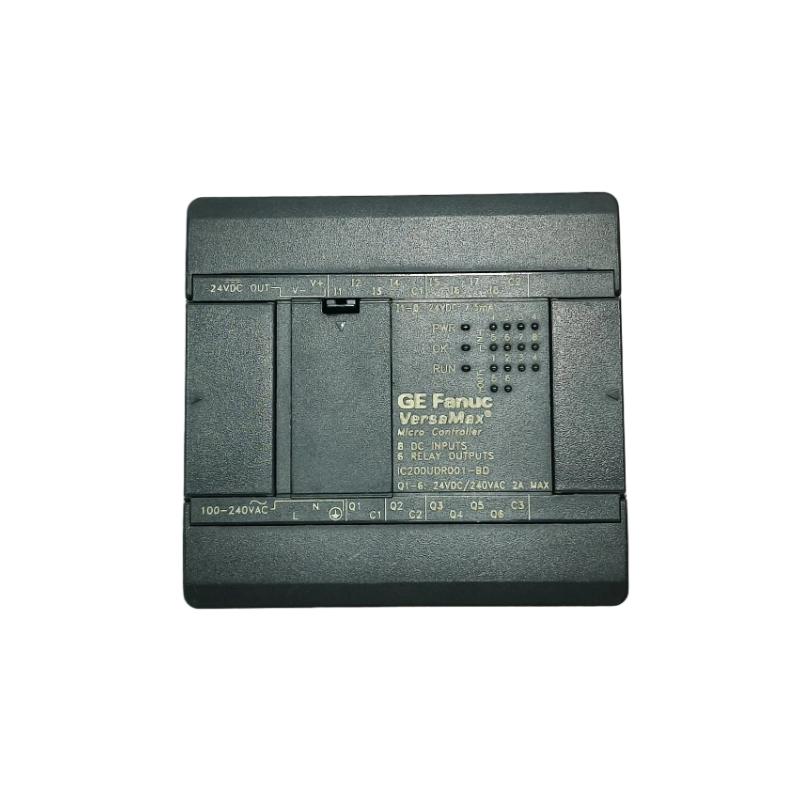

The GE IC200UDR001 is a compact VersaMax Micro PLC controller designed for small industrial automation and machine-level control applications. It integrates a CPU, 8 digital inputs, and 6 relay outputs into a single rugged module, providing a simple yet powerful all-in-one control solution.
With support for AC power input, relay-based output switching, and expandable architecture, this controller is widely used in OEM machinery, small production systems, and retrofit automation projects where flexibility, reliability, and low system complexity are essential.
Technical Specifications
The IC200UDR001 combines discrete control, flexible voltage handling, and industrial communication capabilities in a compact form factor.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 14 points |
| Digital Inputs | 8 × 24VDC inputs |
| Digital Outputs | 6 × relay outputs (NO contact) |
| Input Voltage | 100–240 VAC |
| Input Signal Range | 0–30 VDC (inputs) |
| Output Switching Range | 5–250 VAC / 5–30 VDC |
| Output Current | Up to 2A per relay |
| Memory Capacity | 9K logic words / 256 register words |
| Scan Time | ~1.1–1.3 ms per K logic |
| High-Speed Counters | Up to 4 channels (up to 10 kHz) |
| Communication Ports | RS-232 / RS-485 (SNP, Modbus RTU support) |
| Expansion Capability | Up to 4 expansion modules |
| Backup Memory | Capacitor-backed RAM |
The controller supports high-speed counting and pulse handling, making it suitable for flow measurement, positioning, and timing-based industrial tasks.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~76 × 90 × 150 mm |
| Weight | ~0.9 kg |
Recommended Related Models
To expand or complement a VersaMax Micro system, the following modules are commonly used:
- IC200UDD120 – 28-point DC transistor micro PLC
- IC200UDD064 – high-density 64-point micro PLC
- IC200UAR028 – relay-based micro controller variant
- IC200UAL005 – analog-capable micro PLC
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar compact PLC applications, engineers often compare:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX series PLCs
- Other GE VersaMax Micro UDR/UDD variants
