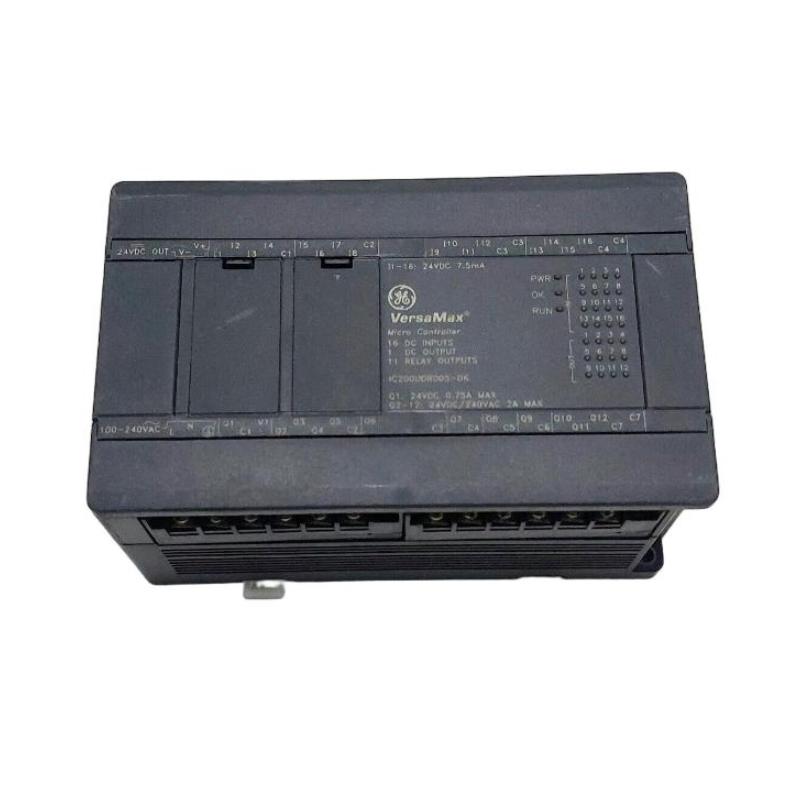

The GE IC200UDR005 is a compact yet powerful VersaMax Micro PLC controller designed for small-to-medium industrial automation systems that require a balance of digital inputs, relay outputs, and embedded control intelligence in a single unit.
It is one of the most versatile controllers in the VersaMax Micro family, offering 28 integrated I/O points, flexible expansion capability, and dual communication ports, making it a strong choice for OEM machinery, packaging systems, and general-purpose industrial automation where reliability and cost efficiency matter.
Technical Specifications
The IC200UDR005 combines mixed I/O control with relay switching and AC power flexibility, making it suitable for a wide range of field applications.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 28 points |
| Digital Inputs | 16 × 24VDC inputs |
| Digital Outputs | 11 × relay outputs (NO, 2A) |
| Additional Output | 1 × 24VDC output |
| Input Power | 100–240 VAC |
| Input Frequency | 47–63 Hz |
| Relay Rating | Up to 2A per point (resistive load) |
| Memory | ~9K logic words / 2K registers |
| Scan Time | ~1.1 ms (typical) |
| High-Speed Counters | Up to 4 channels |
| Analog Support | Built-in potentiometers (2) |
| Communication Ports | 2 × serial ports (RS-232 / RS-485 configurable) |
| Expansion Capability | Up to 4 I/O expansion modules |
The controller supports flexible programming, including floating-point math and advanced instruction sets for more complex automation tasks.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~150 × 90 × 76 mm |
| Weight | ~0.6 kg |
Recommended Related Models
To build a scalable VersaMax Micro system, IC200UDR005 is often paired with:
- IC200UDD120 – DC transistor output micro PLC
- IC200UDD064 – high-density 64-point controller
- IC200UAR028 – relay-based micro PLC variant
- IC200UAL005 – analog-capable micro PLC
- IC200PWR102 – expanded AC power supply module
Popular Industrial Alternatives
In similar compact PLC applications, engineers often compare:
- Siemens S7-1200 series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX series PLCs
- Other GE VersaMax Micro UDR/UDD family controllers
