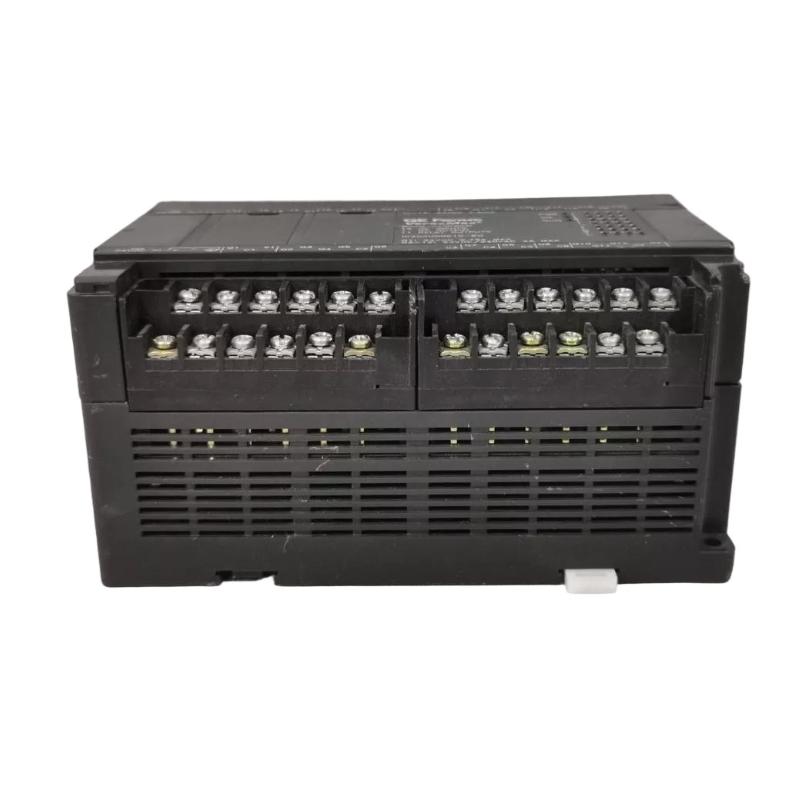

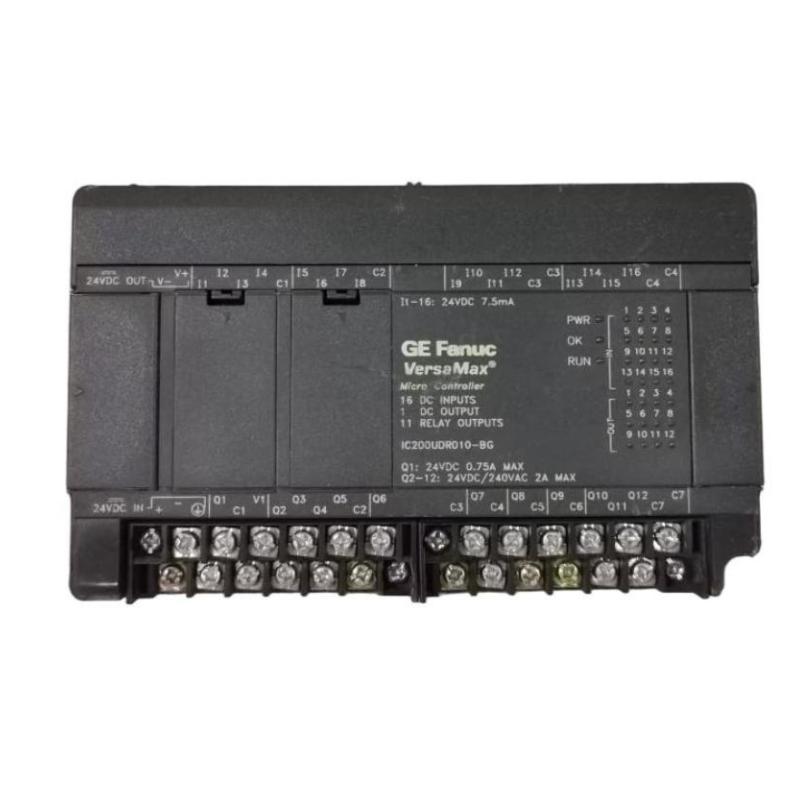

The GE IC200UDR010 is a compact VersaMax Micro PLC controller designed for small industrial automation systems requiring flexible digital I/O, relay switching, and embedded control logic in a single integrated unit.
With 28 total I/O points and AC/DC universal power input, it is widely used in OEM machinery, packaging equipment, and light industrial control systems where reliability, simple architecture, and cost efficiency are essential. Its built-in relay outputs make it especially suitable for direct field device switching without additional interface relays.
Technical Specifications
The IC200UDR010 combines mixed input control and relay output switching in a compact micro PLC platform.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 28 points |
| Digital Inputs | 16 × 24VDC inputs |
| Digital Outputs | 11 × relay outputs (NO, 2A) |
| Additional Output | 1 × 24VDC output |
| Power Supply | 24VDC nominal (range supported) |
| Input Voltage Range | 19.2–30 VDC |
| Output Switching | AC/DC loads (relay-based) |
| Relay Rating | Up to 2A per channel |
| Memory Capacity | ~9K logic / 2K data registers |
| Scan Time | ~1.1 ms per K logic |
| High-Speed Counters | Up to 4 channels |
| Communication Ports | RS-232 / RS-485 (Modbus RTU, SNP support) |
| Expansion Capability | Up to 4 expansion modules |
| Protection | Field isolation up to 1500V |
The controller is designed for stable real-time operation, with fast scan performance and flexible I/O configuration for industrial applications.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~90 × 150 × 76 mm |
| Weight | ~0.5–0.9 kg |
Recommended Related Models
To build or expand a VersaMax Micro system, the IC200UDR010 is commonly paired with:
- IC200UDR005 – enhanced 28-point micro PLC variant
- IC200UDR001 – compact relay-based controller
- IC200UDD120 – DC transistor output controller
- IC200UAR028 – alternative relay I/O micro PLC
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar applications, engineers often evaluate:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX Series PLCs
- Other GE VersaMax Micro UDR/UDD controllers
