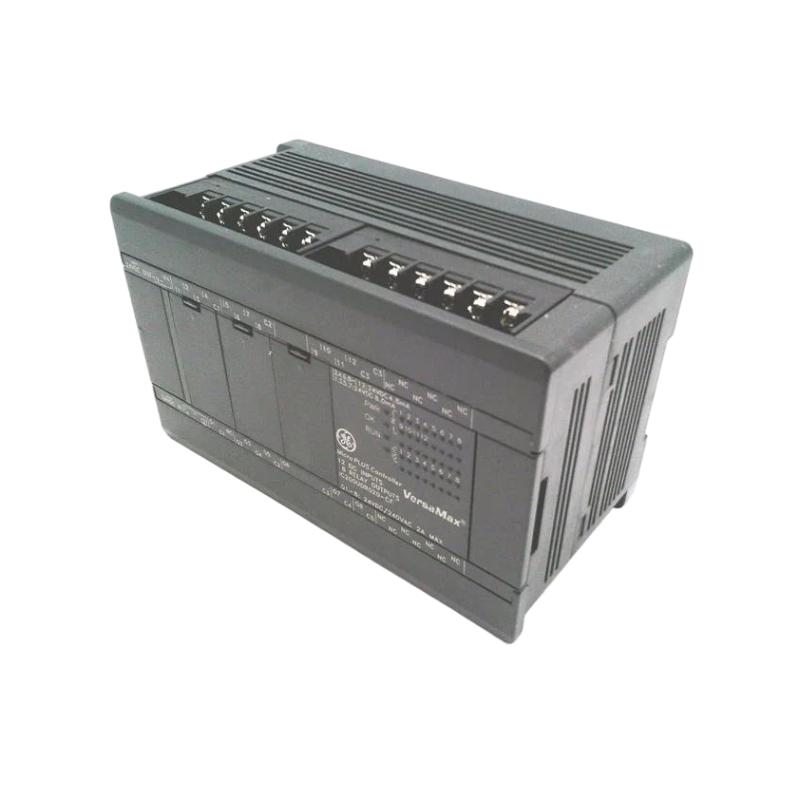

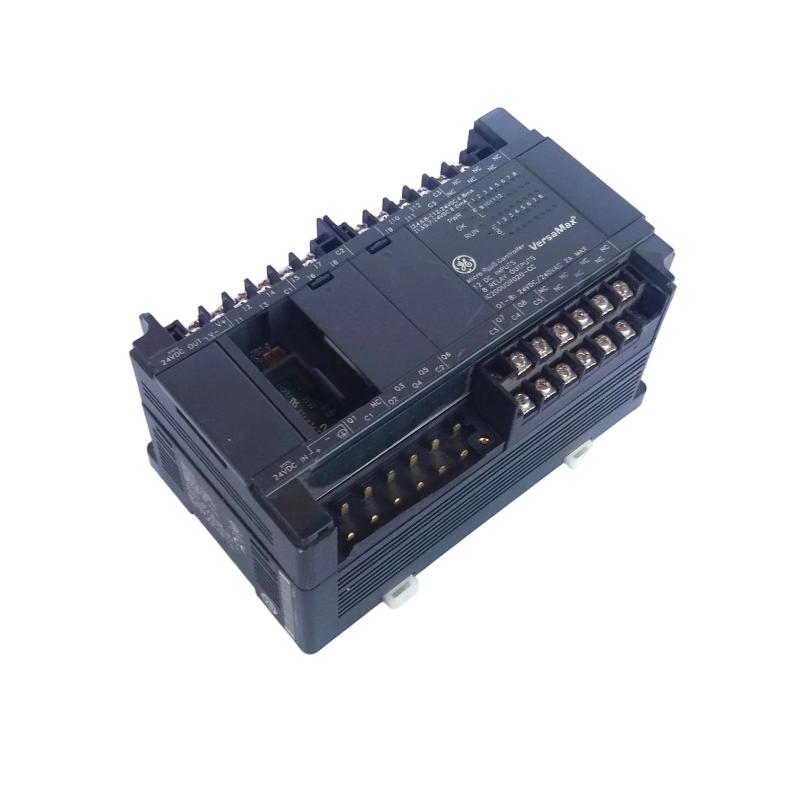

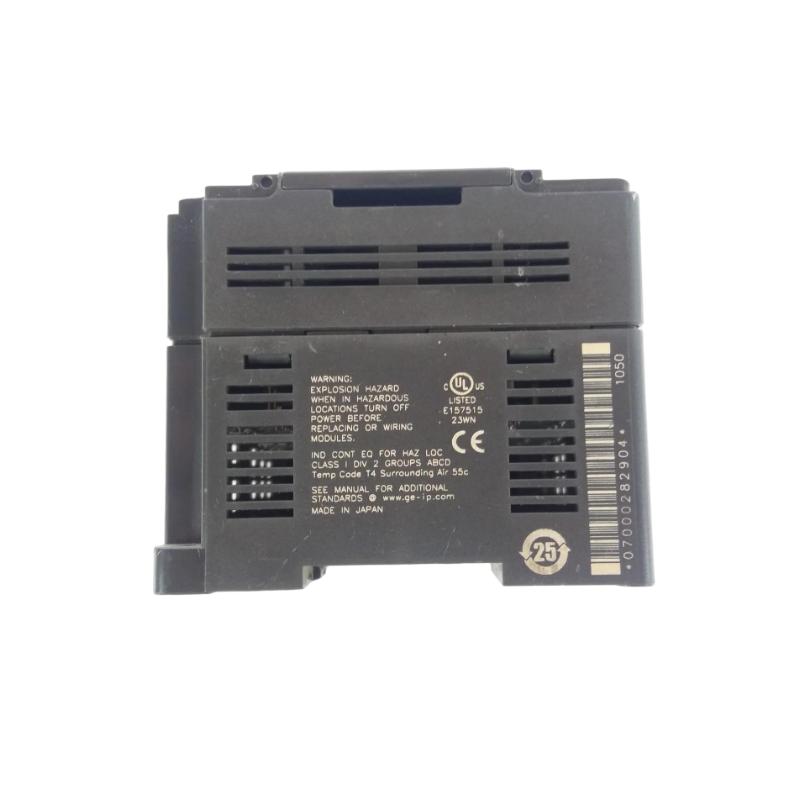

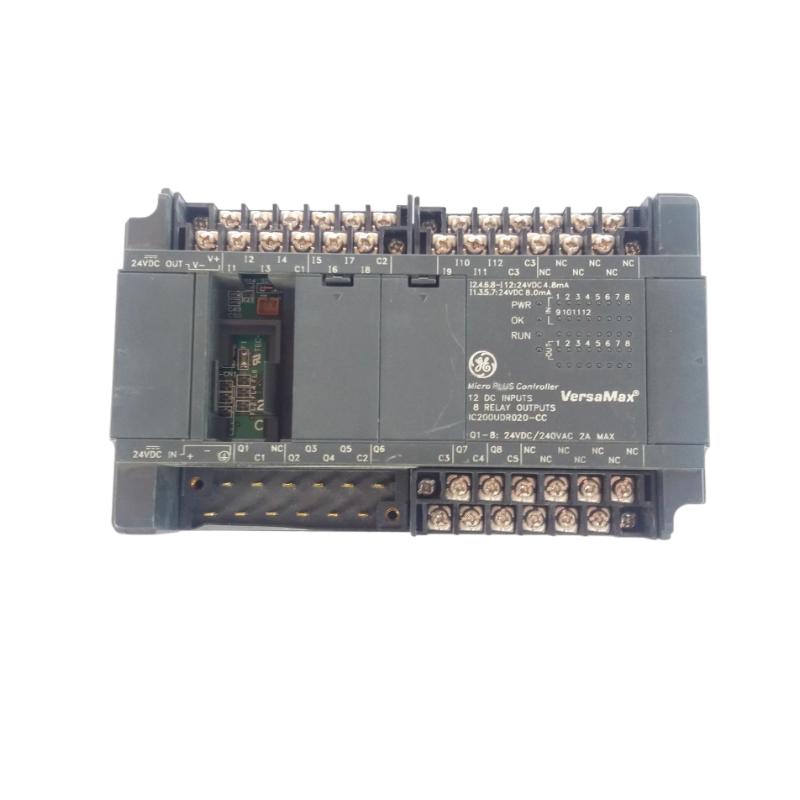

The GE IC200UDR020 is a compact VersaMax Micro PLC controller designed for small industrial automation applications that require a balanced mix of digital inputs, relay outputs, and embedded processing power in a single unit.
With its 20-point integrated I/O architecture, this controller is widely used in light machinery, discrete manufacturing, and OEM equipment where space-saving design, reliable switching, and flexible communication are key priorities. Despite its compact footprint, it delivers stable performance and scalable control capability for a wide range of industrial tasks.
Technical Specifications
The IC200UDR020 combines digital control, relay switching, and flexible expansion options for industrial automation systems.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 20 points |
| Digital Inputs | 12 × 24VDC inputs |
| Digital Outputs | 8 × relay outputs (NO contact, 2A) |
| Input Voltage | 24VDC or AC-powered system (variant dependent) |
| Power Consumption | ~10W |
| Processor | High-speed RISC CPU |
| Memory | ~24K logic words / 32K registers |
| High-Speed Counters | Up to 4 channels |
| Counter Speed | Up to 10 kHz |
| Communication Ports | RS-232 (RJ45) + RS-485 (optional configuration) |
| Expansion Capability | Up to 4 I/O expansion modules |
| Maximum I/O Expansion | Up to 132 total points |
The controller supports flexible automation architectures with both discrete control and scalable expansion for larger systems.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~133 × 90 × 55–76 mm |
| Weight | ~0.5 kg |
Recommended Related Models
To build a complete VersaMax Micro system, the IC200UDR020 is often paired with:
- IC200UDR005 – enhanced 28-point micro PLC
- IC200UDR001 – compact relay-based controller
- IC200UDD120 – DC transistor output controller
- IC200UDD064 – high-density micro PLC
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar compact automation scenarios, engineers often evaluate:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX Series PLCs
- GE VersaMax Micro UDR/UDD family controllers
