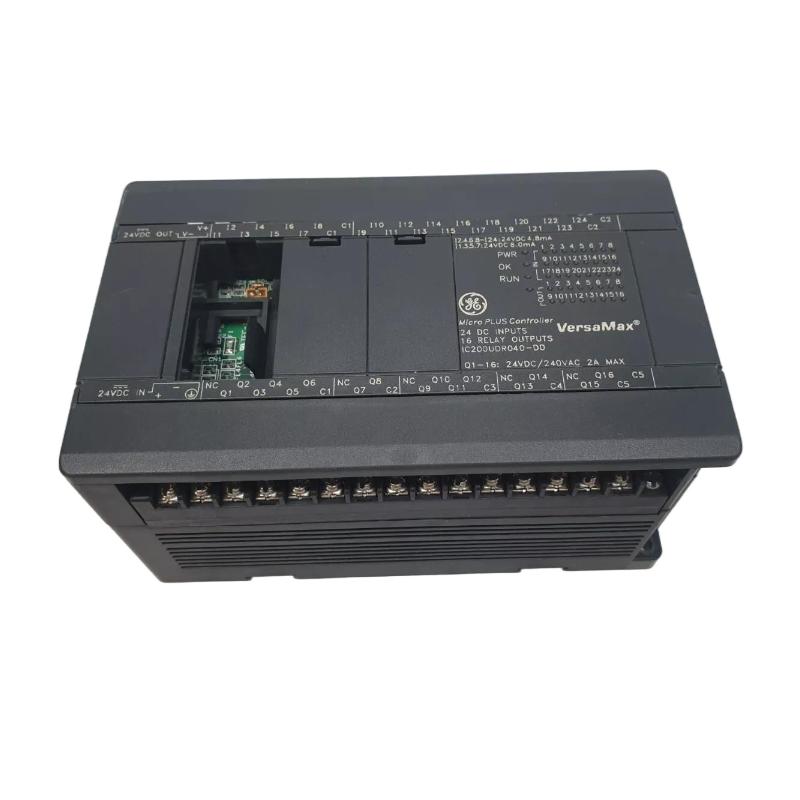

The GE IC200UDR040 is a high-capacity VersaMax Micro PLC controller designed for compact yet powerful industrial automation systems. With its 40 integrated I/O points, it delivers strong control performance for OEM machinery, production lines, and medium-complexity automation tasks.
This model stands out in the Micro PLC family for combining high I/O density, relay-based output flexibility, and expandable architecture, making it a reliable solution for applications that require both simplicity and scalability in one controller.
Technical Specifications
The IC200UDR040 is engineered for mixed-control industrial environments with strong relay switching capability and flexible I/O configuration.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 40 points |
| Digital Inputs | 24 × 24VDC inputs |
| Digital Outputs | 16 × relay outputs (NO contact, 2A) |
| Input Voltage | 24VDC nominal |
| Input Range | 19.2–30VDC |
| Power Consumption | ~10W |
| Logic Memory | ~24K words |
| Register Memory | ~32K words |
| High-Speed Counters | Up to 4 channels (Type A/B, up to 100 kHz) |
| Output Rating | 2A per relay (AC/DC loads supported) |
| Communication Ports | RS-232 (RJ45) + optional RS-485 |
| Protocols | SNP, Modbus RTU (varies by configuration) |
| Expansion Capability | Up to 4 I/O expansion modules |
The controller supports flexible system integration and is designed for stable operation in demanding industrial environments.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 150 × 90 × 76 mm |
| Weight | ~0.91 kg |
Recommended Related Models
To expand or complement a VersaMax Micro system, the IC200UDR040 is often used with:
- IC200UDR020 – 20-point compact controller
- IC200UDR010 – 28-point relay micro PLC
- IC200UDD120 – DC transistor output controller
- IC200UDD164 – 64-point high-density PLC
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar automation architectures, engineers often evaluate:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX Series PLCs
- Other GE VersaMax Micro UDR/UDD family controllers
