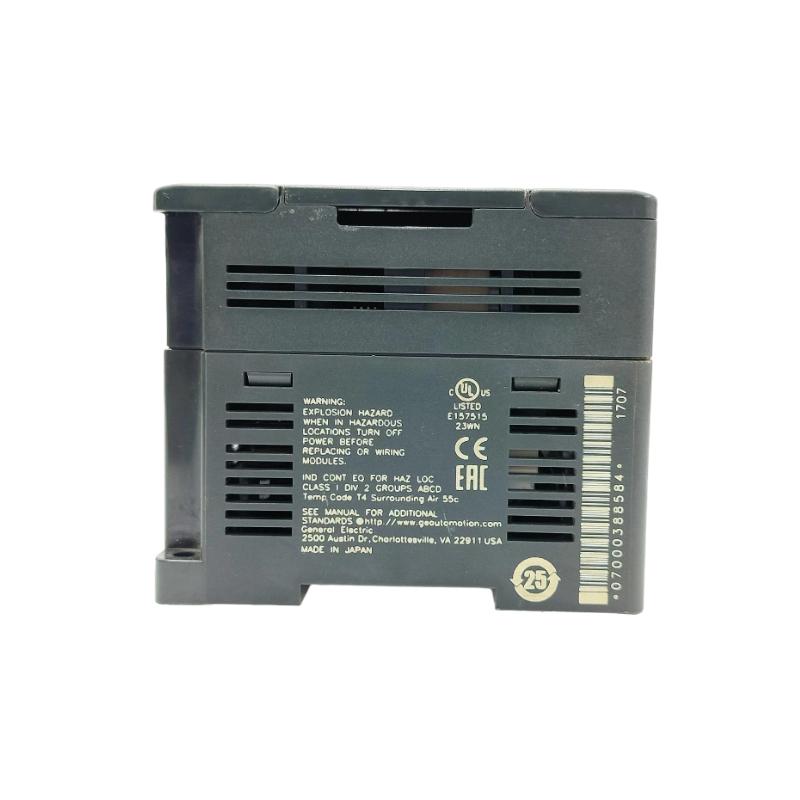

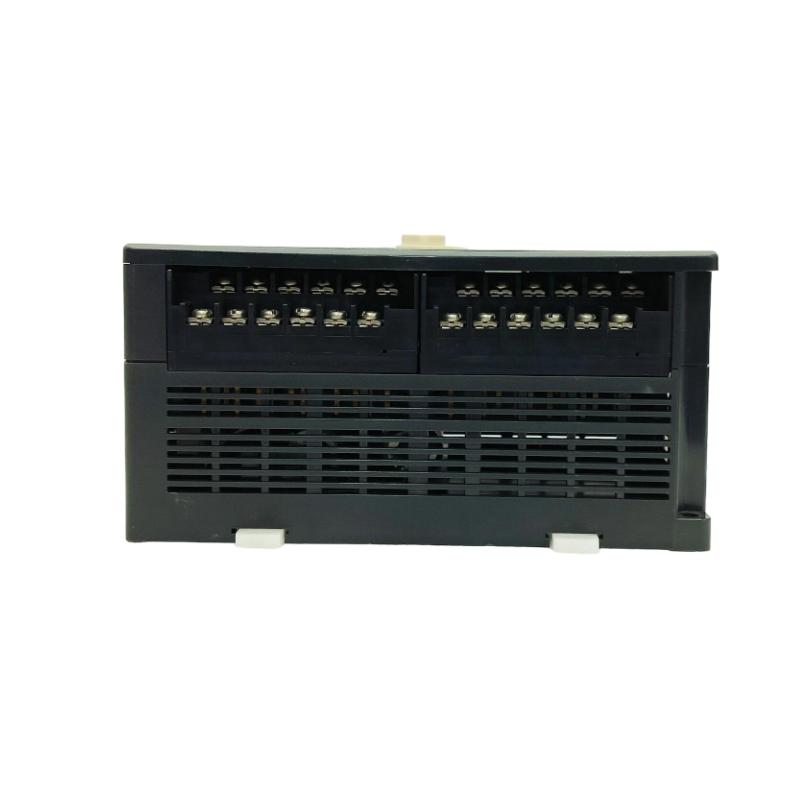

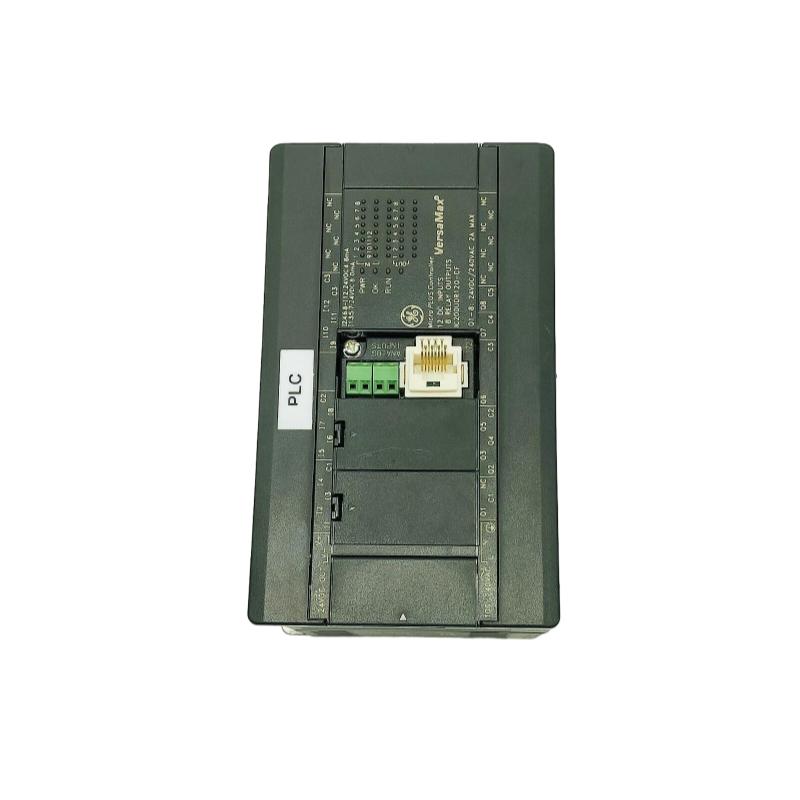

The GE IC200UDR120 is a compact VersaMax Micro PLC controller designed for small industrial automation systems that require a reliable combination of digital inputs, relay outputs, and integrated CPU control in a single all-in-one device.
With its 20-point I/O configuration and AC 100–240V power input, it is widely used in OEM machines, packaging systems, and general-purpose industrial control applications where simplicity, durability, and flexible wiring are essential. Its relay-based outputs make it especially suitable for direct switching of both AC and DC field loads.
Technical Specifications
The IC200UDR120 delivers stable control performance with mixed-voltage compatibility and industrial-grade reliability.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 20 points |
| Digital Inputs | 12 × 24VDC inputs (positive/negative logic) |
| Digital Outputs | 8 × relay outputs (NO contact, 2A) |
| Input Power | 100–240 VAC |
| Output Load Voltage | 5–250 VAC / 5–30 VDC |
| Input Voltage Range | 19.2–30 VDC (field inputs) |
| Memory Capacity | ~12K–24K logic (system dependent) |
| Scan Time | ~1.1 ms |
| High-Speed Counters | Up to 4 channels (up to 100 kHz) |
| Communication Ports | RS-232 + RS-485 (Modbus RTU / SNP support) |
| Expansion Capability | Up to 4 I/O expansion modules |
| Mechanical Life | ~20 million relay operations |
The controller is designed for high reliability in continuous industrial environments with stable logic execution and flexible communication support.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~90 × 150 × 76 mm |
| Weight | ~0.75–0.91 kg |
Recommended Related Models
To expand a VersaMax Micro system, the IC200UDR120 is commonly paired with:
- IC200UDR040 – 40-point relay micro PLC
- IC200UDR020 – compact 20-point controller variant
- IC200UDD120 – DC transistor output PLC
- IC200UDD164 – high-density 64-point PLC
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar automation applications, engineers often consider:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX Series PLCs
- Other GE VersaMax Micro UDR/UDD family controllers
