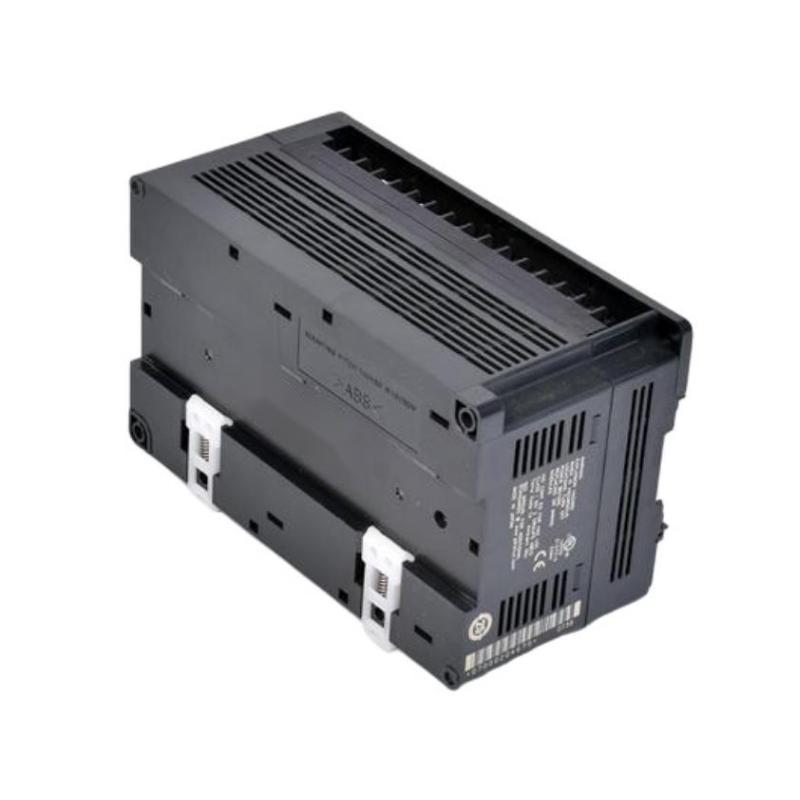

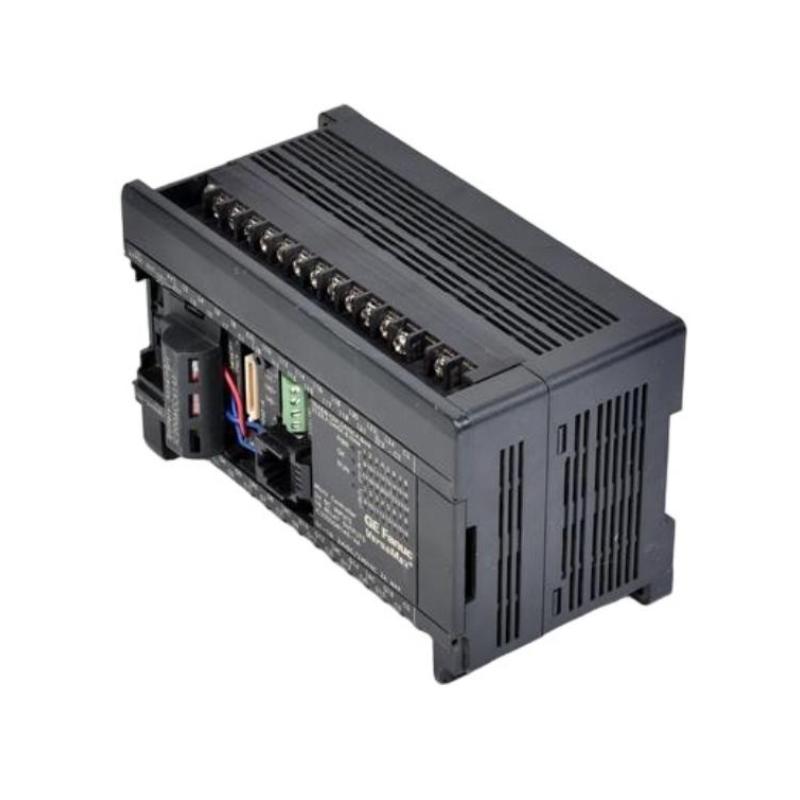

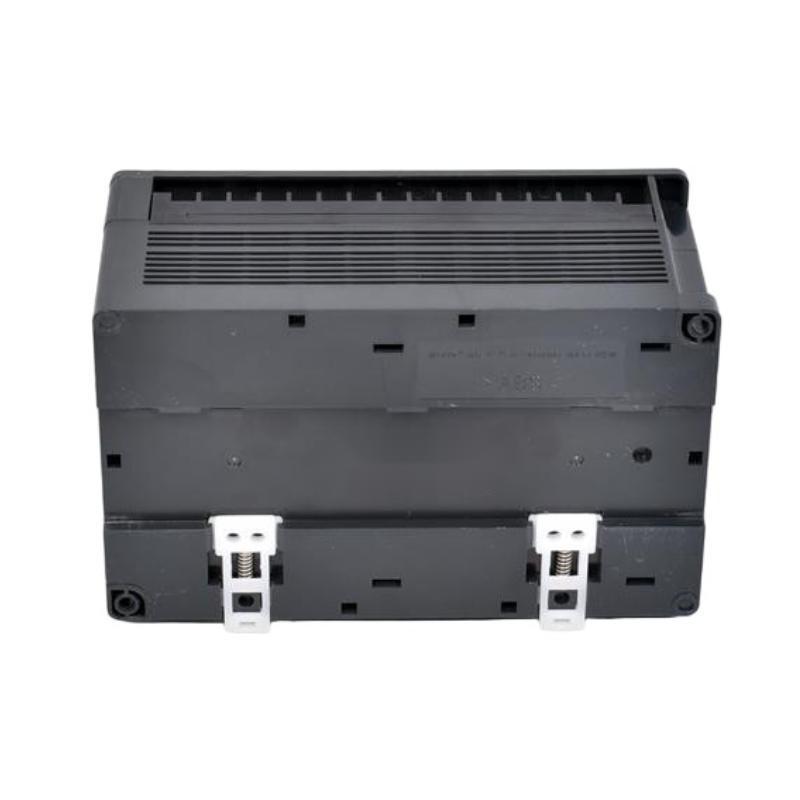

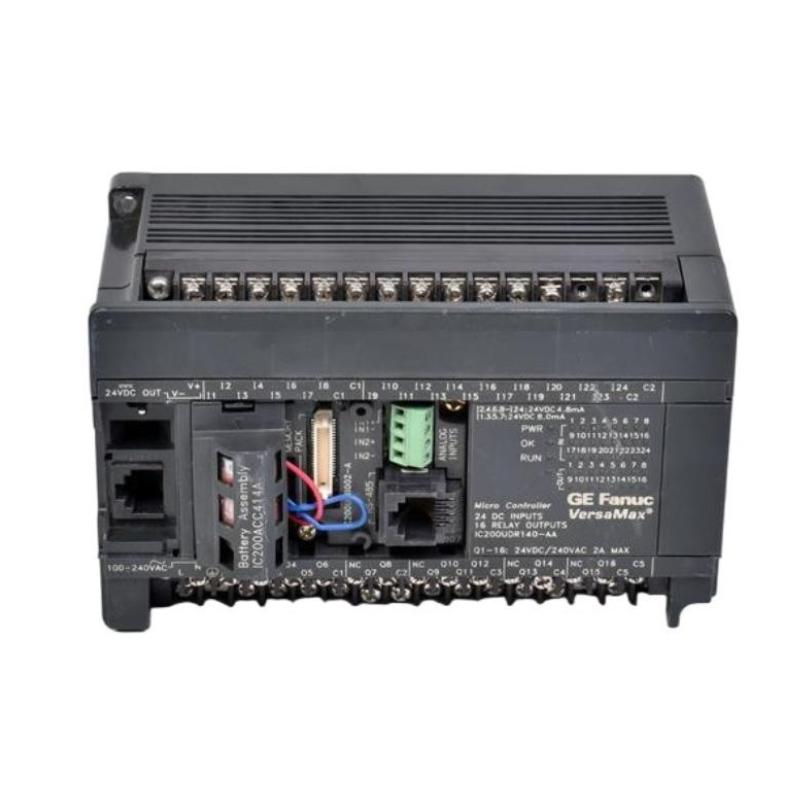

The GE IC200UDR140 is a powerful VersaMax Micro PLC controller designed for compact industrial automation systems that require a higher level of I/O capacity while maintaining a small footprint. With its 40 integrated I/O points, it delivers reliable control for OEM machinery, process equipment, and building automation systems.
This model is often chosen when projects outgrow basic micro PLCs but still need to avoid the complexity and cost of full rack-based PLC systems. It combines high I/O density, relay output flexibility, and expandable architecture in a single industrial-grade controller.
Technical Specifications
The IC200UDR140 integrates CPU, I/O, communication, and expansion capability into a unified micro PLC platform.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Controller |
| Series | GE VersaMax Micro |
| Total I/O Points | 40 points |
| Digital Inputs | 24 × 24VDC inputs |
| Digital Outputs | 16 × relay outputs (NO contact, 2A) |
| Input Power | 120/240 VAC |
| Input Signal Type | 24VDC discrete inputs |
| Output Type | Electromechanical relay outputs |
| Logic Memory | 24K words |
| Register Memory | 32K words |
| Execution Speed | ~1.0 µs per Boolean instruction |
| High-Speed Counters | Up to 4 channels (up to 100 kHz) |
| Communication Ports | RS-232 + optional RS-485 / Ethernet module support |
| Expansion Capability | Up to 4 I/O expansion modules |
| Maximum I/O Capacity | Up to 152 points with expansion |
| Real-Time Clock | Built-in |
| Battery Backup | Optional (for data retention) |
The controller is engineered for fast logic execution and stable operation in continuous industrial environments.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~150 × 90 × 76 mm |
| Weight | ~0.85–0.91 kg |
Recommended Related Models
For system expansion or alternative configurations, the IC200UDR140 is commonly paired with:
- IC200UDR120 – 20-point relay micro PLC
- IC200UDR040 – 40-point compact relay controller variant
- IC200UDD164 – 64-point DC transistor PLC
- IC200UAR028 – mixed I/O relay-based controller
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar automation architectures, engineers often consider:
- Siemens S7-1200 compact PLC series
- Allen-Bradley MicroLogix 1400
- Schneider Modicon M221
- Mitsubishi FX Series PLCs
- Other GE VersaMax Micro UDR/UDD family controllers
