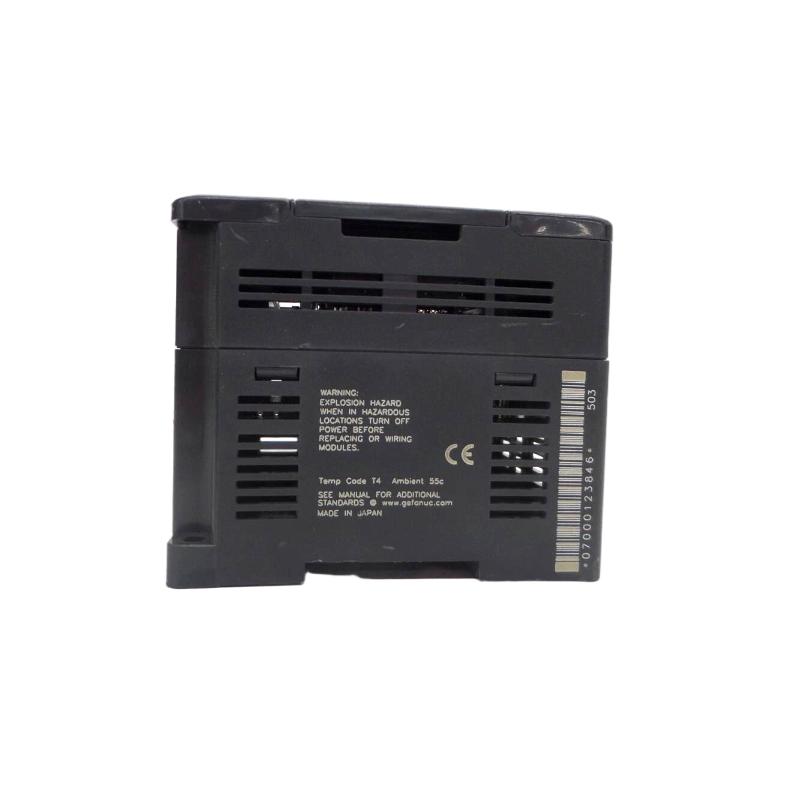

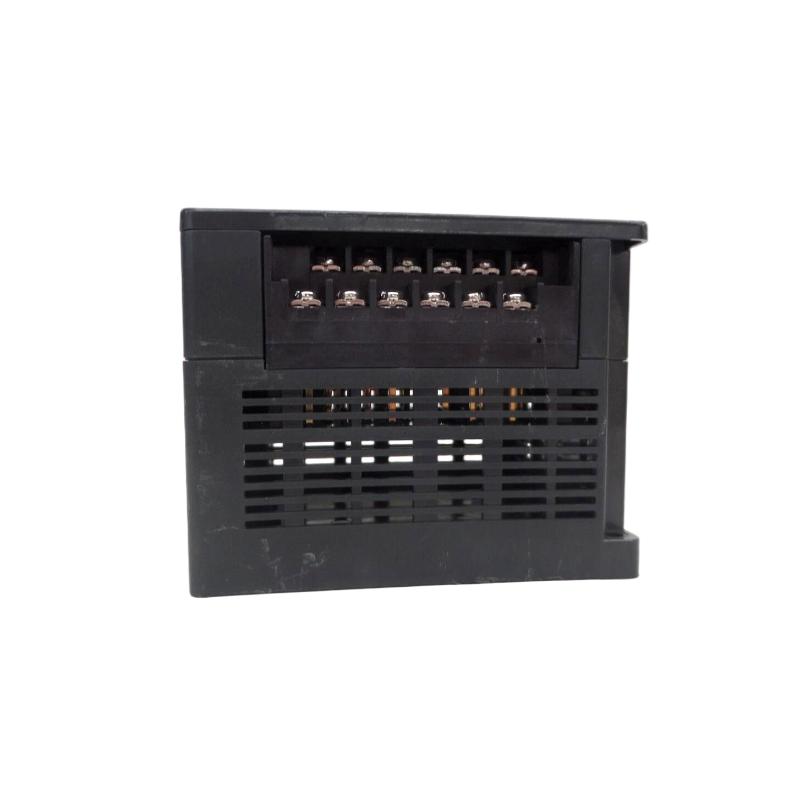

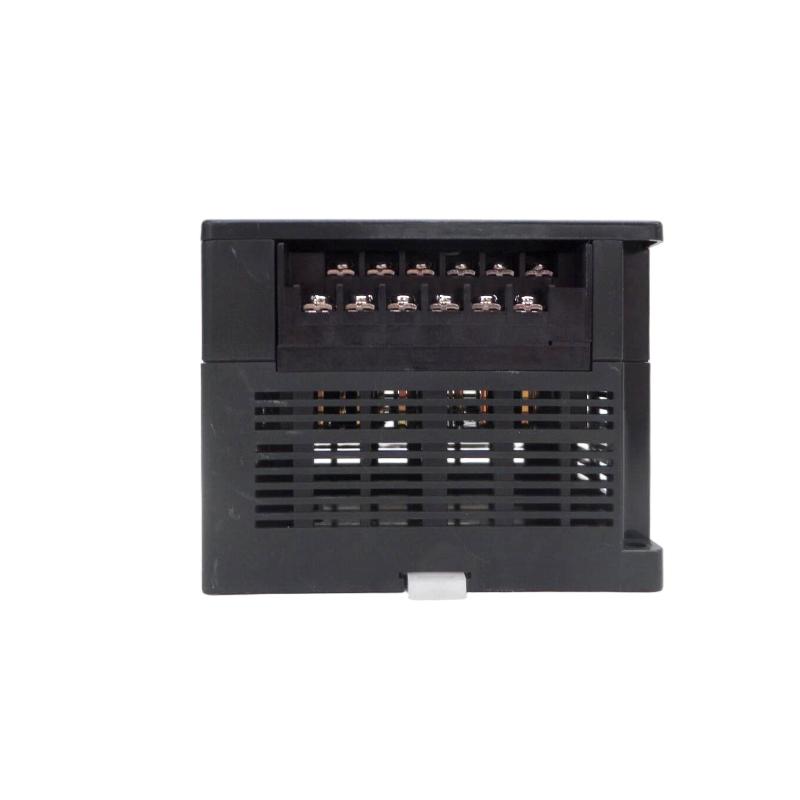

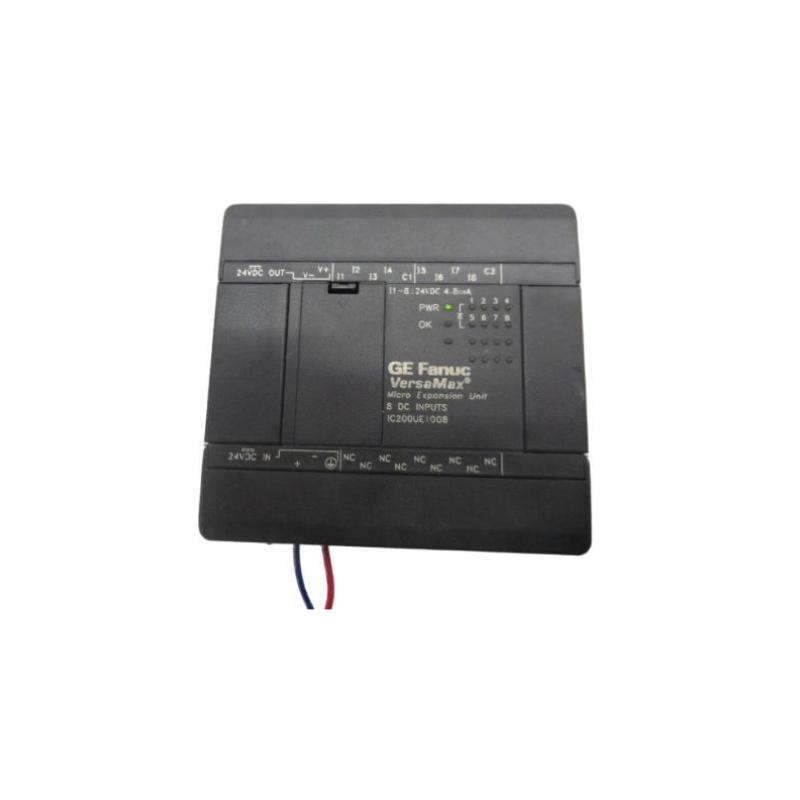

The GE IC200UEI008 is a compact VersaMax Micro discrete input expansion module designed to increase the input capacity of a VersaMax Micro PLC system. It adds 8 additional 24VDC digital input points, making it a practical solution for applications that require more sensor connections without upgrading the main controller.
Engineered for modular scalability, this unit is commonly used in OEM machinery and distributed control systems where space efficiency, flexible expansion, and reliable signal acquisition are critical.
Technical Specifications
The IC200UEI008 extends the PLC’s input capability while maintaining industrial-grade signal stability and electrical isolation.
| Parameter | Specification |
|---|---|
| Module Type | Discrete Input Expansion Module |
| Series | GE VersaMax Micro |
| Input Points | 8 × digital inputs |
| Input Voltage | 24VDC |
| Input Type | Sink/source compatible (field configurable logic) |
| Input Current | ~7–10 mA per point (typical) |
| Power Consumption | ~4W |
| Input Resistance | ~4.8 kΩ |
| Signal Response Time | ~10 ms hold-up time |
| Isolation | 1500V RMS field-to-logic isolation |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Expansion Capacity | Up to 4 modules per PLC system |
The module is designed to maintain stable signal integrity in electrically noisy industrial environments while supporting flexible installation configurations.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~95 × 90 × 76 mm |
| Weight | ~0.68–0.91 kg |
Recommended Related Models
To build a complete VersaMax Micro system, IC200UEI008 is typically paired with:
- IC200UDR120 – 20-point relay micro PLC controller
- IC200UDD064 – 64-point high-density PLC
- IC200UEO008 – 8-point output expansion module
- IC200UAR028 – integrated micro PLC controller
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
In similar expansion scenarios, engineers often consider:
- Siemens ET200 input expansion modules
- Allen-Bradley POINT I/O digital input modules
- Schneider Modicon TM3 expansion I/O
- Mitsubishi FX-series extension blocks
- Other GE VersaMax Micro I/O expansion units
