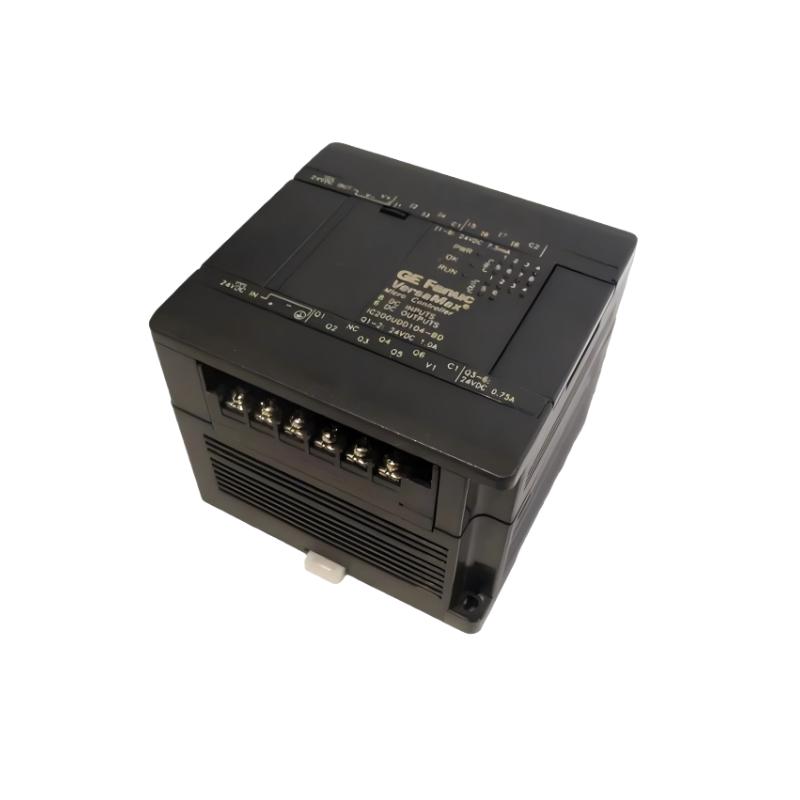

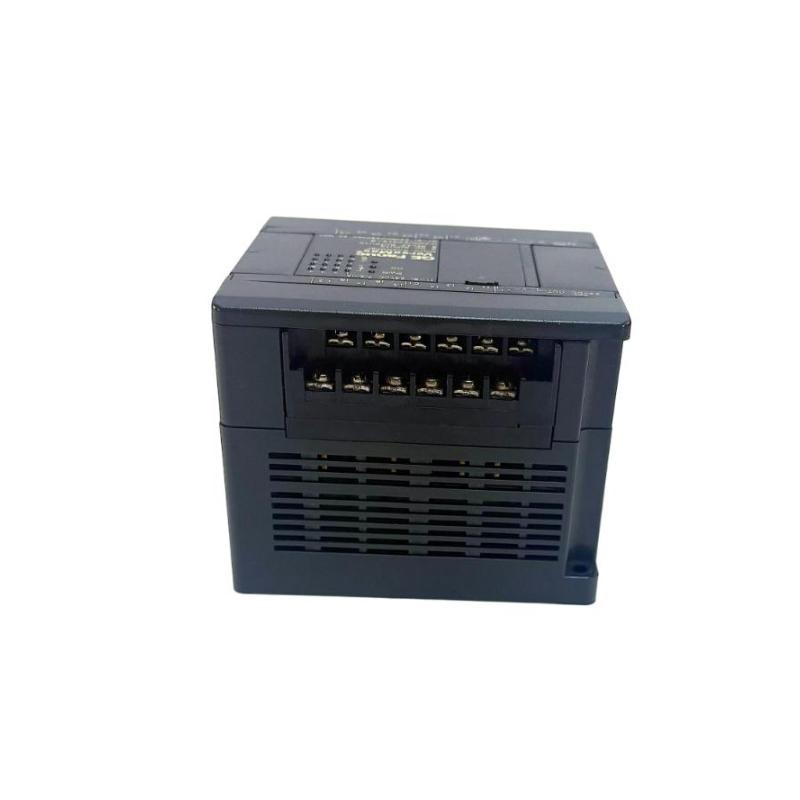

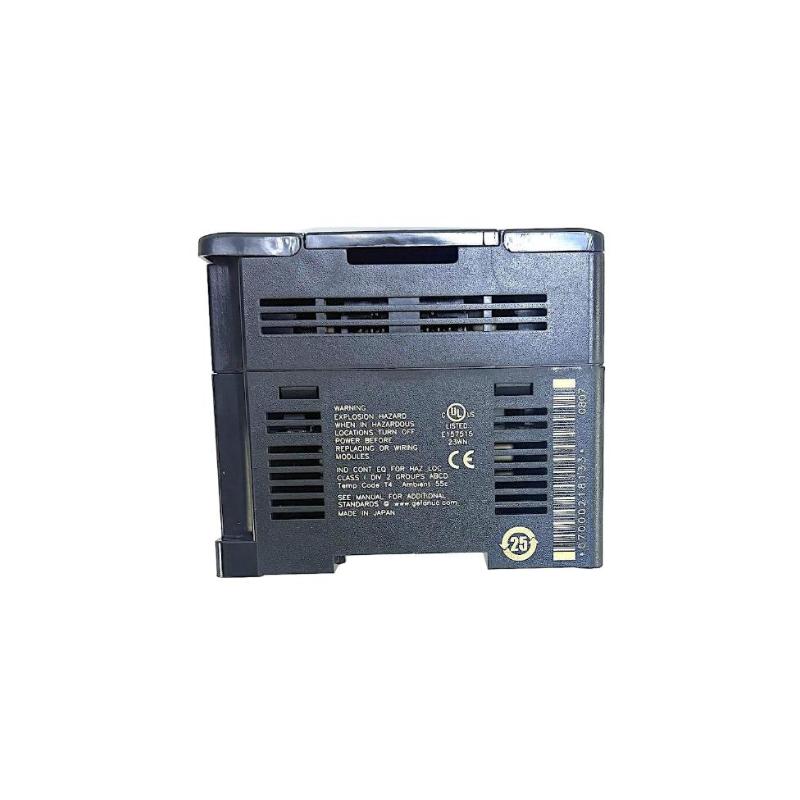

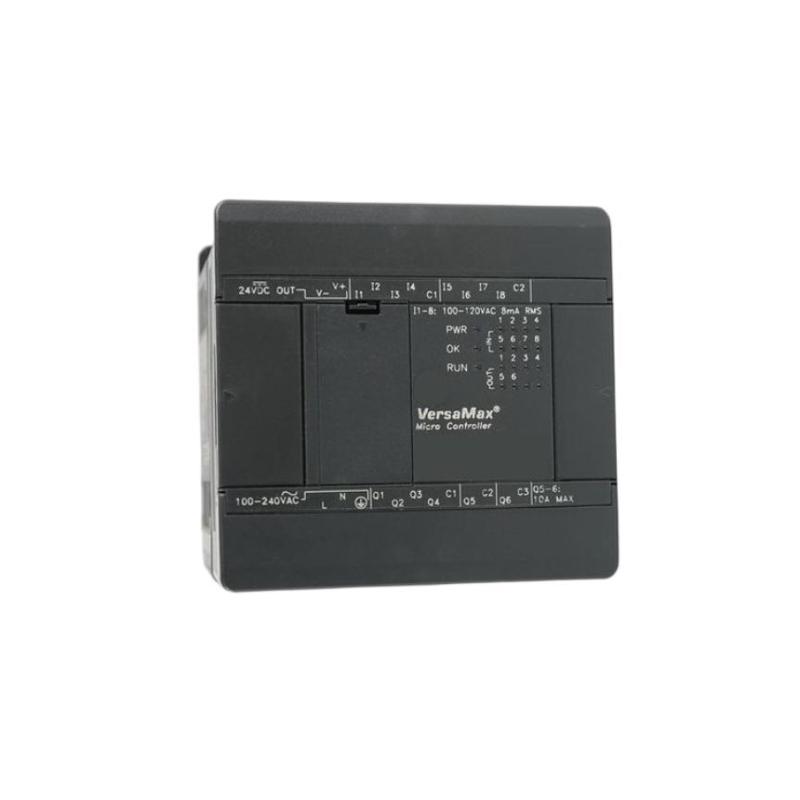

The GE IC200UEO116 is a VersaMax Micro digital output expansion module designed to increase the output capacity of a PLC system without changing the main controller. It provides 16 high-speed 24VDC transistor outputs, making it ideal for compact industrial automation systems that require additional actuator, relay driver, or signal control capability.
This module is widely used in OEM machinery, packaging systems, and distributed control applications where flexible output scaling, fast switching performance, and compact installation are essential.
Technical Specifications
The IC200UEO116 is a dedicated output expansion unit with sink-type transistor switching designed for fast industrial loads.
| Parameter | Specification |
|---|---|
| Module Type | Output Expansion Module |
| Series | GE VersaMax Micro |
| Output Points | 16 × digital outputs |
| Output Type | 24VDC sink-type transistor outputs |
| Output Voltage Range | 12–24 VDC |
| Max Load per Point | 0.5 A |
| Max Load per Common | 3 A |
| Power Supply | 24 VDC (external/field supply) |
| Input Power Consumption | ~4 W |
| Response Time | ~0.5 ms switching |
| Isolation | Field-to-logic isolation |
| Protection | External fuse recommended |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
The module is designed for fast switching applications and can handle inductive loads when properly fused and protected.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 94 × 93 × 75 mm |
| Weight | 0.26 kg |
Recommended Related Models
- IC200UEO108 – 8-point output expansion module
- IC200UDR140 – 40-point micro PLC controller
- IC200UDR040 – 40-point relay PLC controller
- IC200UDD120 – DC transistor PLC controller
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
- Siemens ET200 digital output modules
- Allen-Bradley POINT I/O output modules
- Schneider Modicon TM3 output expansion units
- Mitsubishi FX series output extension blocks
- Other GE VersaMax Micro I/O expansion modules
