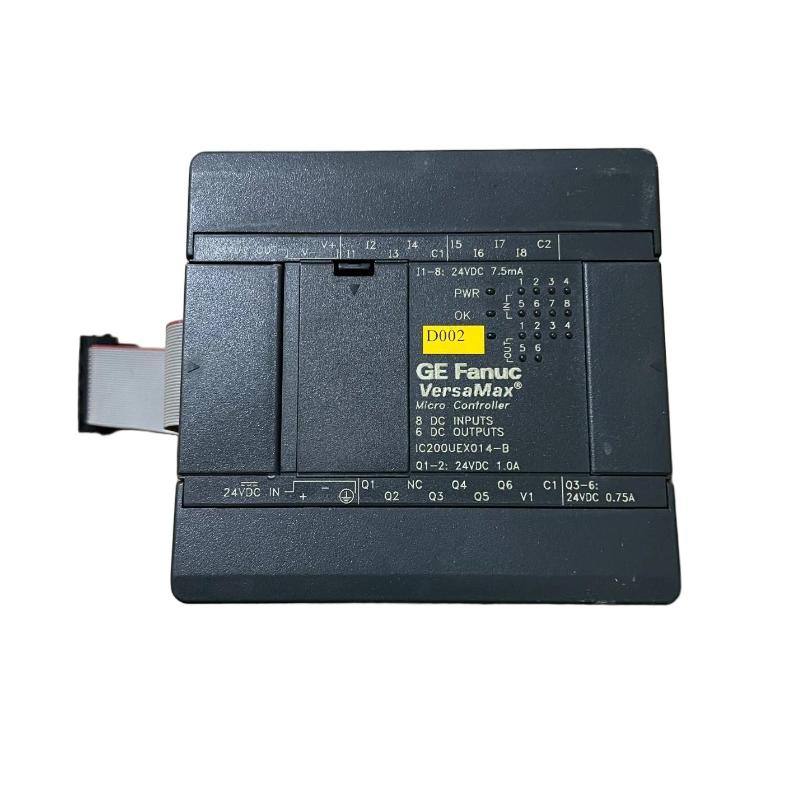

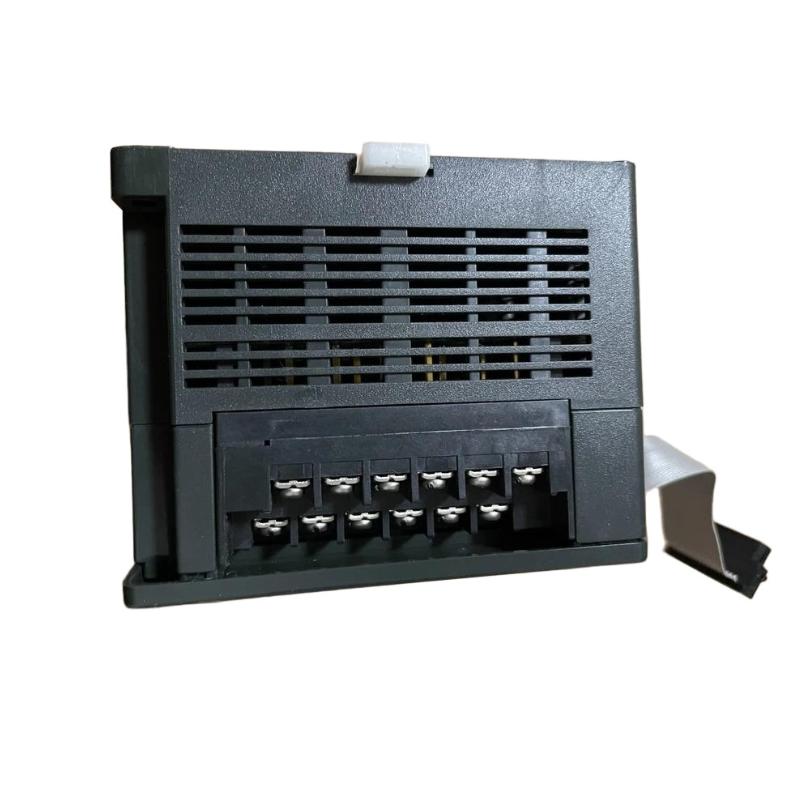

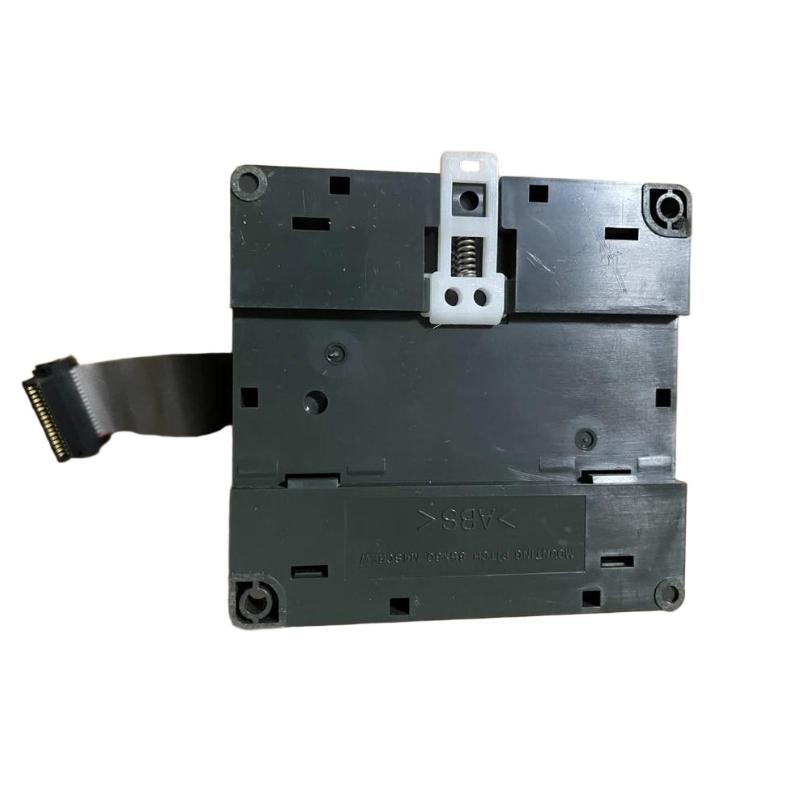

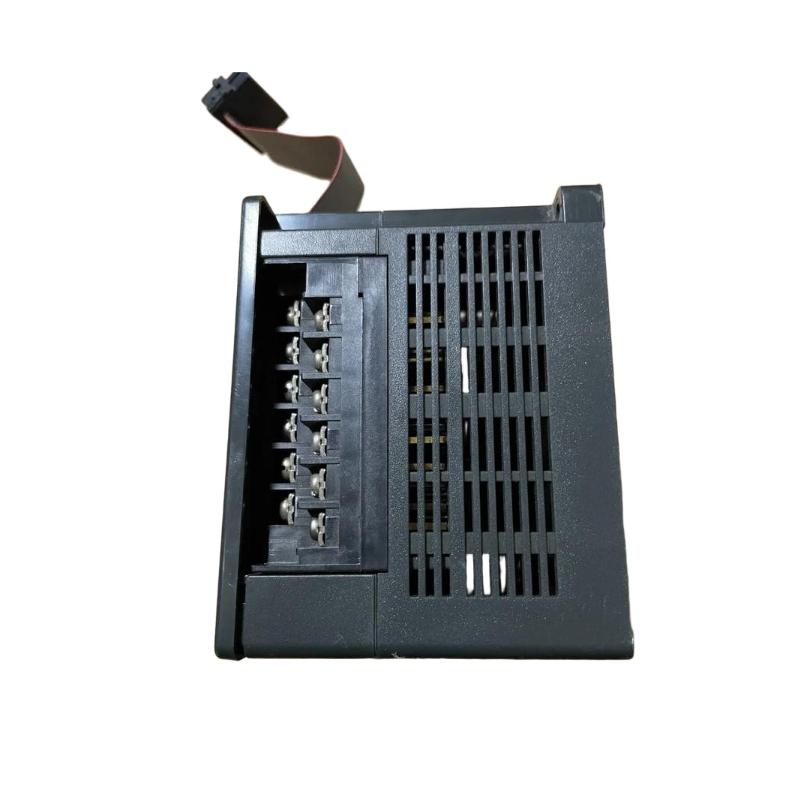

The GE IC200UEX014 is a compact VersaMax Micro I/O expansion module designed to extend the input and output capacity of a Micro PLC system without increasing controller size. It provides a mixed 14-point configuration (8 digital inputs + 6 digital outputs) and is widely used in small-to-medium industrial automation systems requiring flexible I/O scaling.
This module is valued for its plug-in expansion design, fast response time, and integrated 24VDC field power support, making it a practical solution for OEM machines, compact production lines, and distributed control panels.
Technical Specifications
The IC200UEX014 combines digital input acquisition and transistor output control in a single expansion unit.
| Parameter | Specification |
|---|---|
| Module Type | Micro Expansion Module |
| Series | GE VersaMax Micro |
| Total I/O Points | 14 points |
| Digital Inputs | 8 × 24VDC (positive/negative logic) |
| Digital Outputs | 6 × 24VDC transistor outputs |
| Output Type | High-speed DC switching |
| Input Voltage | 24VDC (19.2–30VDC range) |
| Field Power Supply | 24VDC integrated |
| Output Load Capability | Supports inductive and resistive loads (fused recommended) |
| Response Time | <10 ms typical |
| Isolation | 1500V RMS field-to-logic isolation |
| Power Consumption | ~4W |
| Sensor Supply | Up to 200 mA auxiliary 24VDC supply |
This module supports stable signal acquisition and fast switching performance for industrial control environments.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 90 × 95 × 76 mm |
| Weight | 0.27 kg |
Recommended Related Models
- IC200UDR040 – 40-point micro PLC controller
- IC200UDR120 – 20-point relay PLC controller
- IC200UEO116 – 16-point output expansion module
- IC200UEI008 – 8-point input expansion module
- IC200PWR101 – system power supply module
Popular Industrial Alternatives
- Siemens ET200S I/O expansion modules
- Allen-Bradley POINT I/O digital modules
- Schneider Modicon TM3 expansion units
- Mitsubishi FX-series extension blocks
- Other GE VersaMax Micro expansion I/O modules
