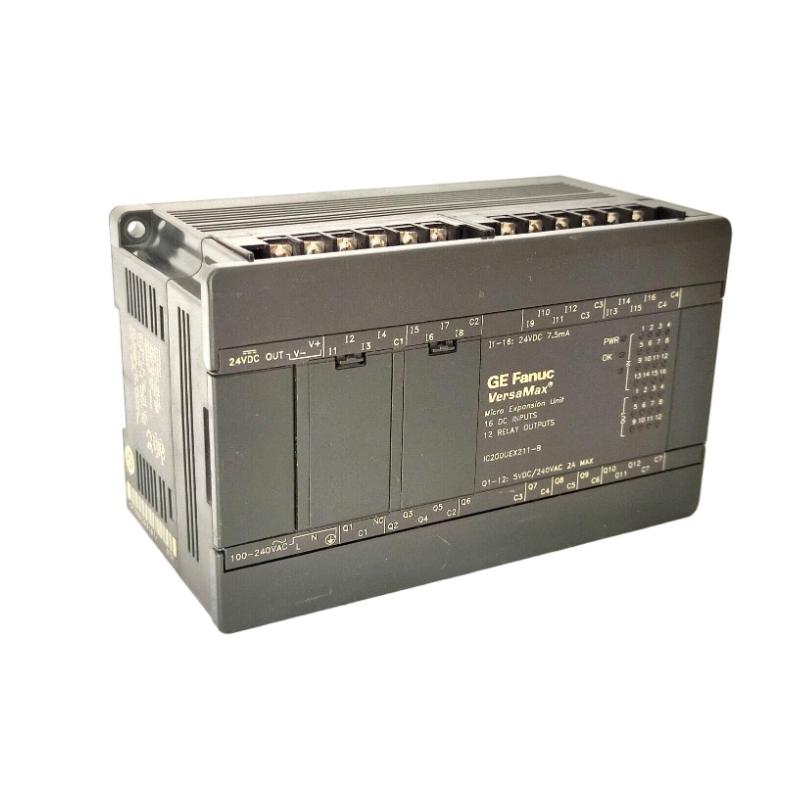

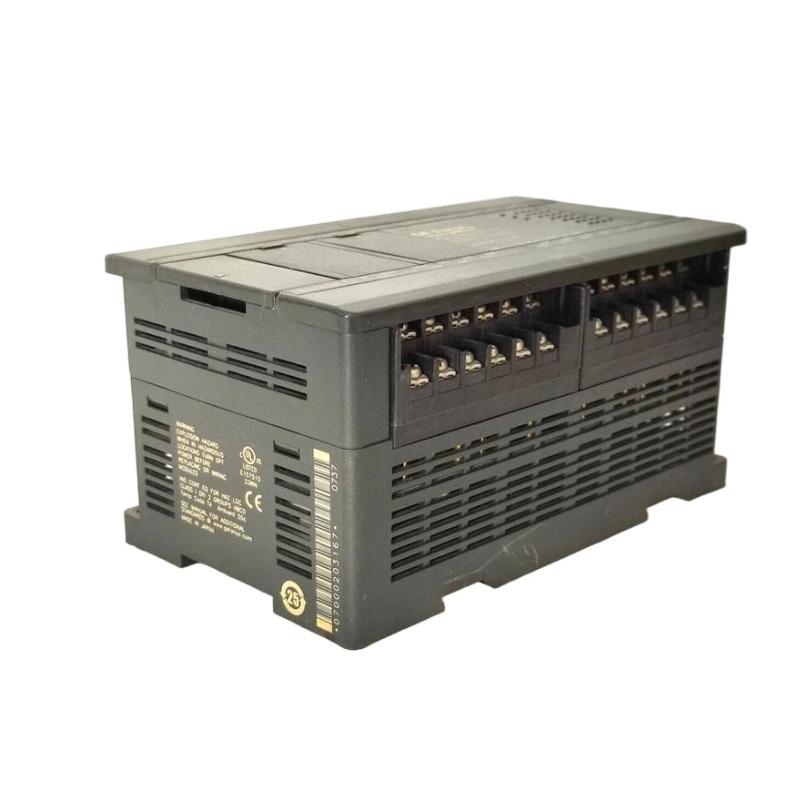

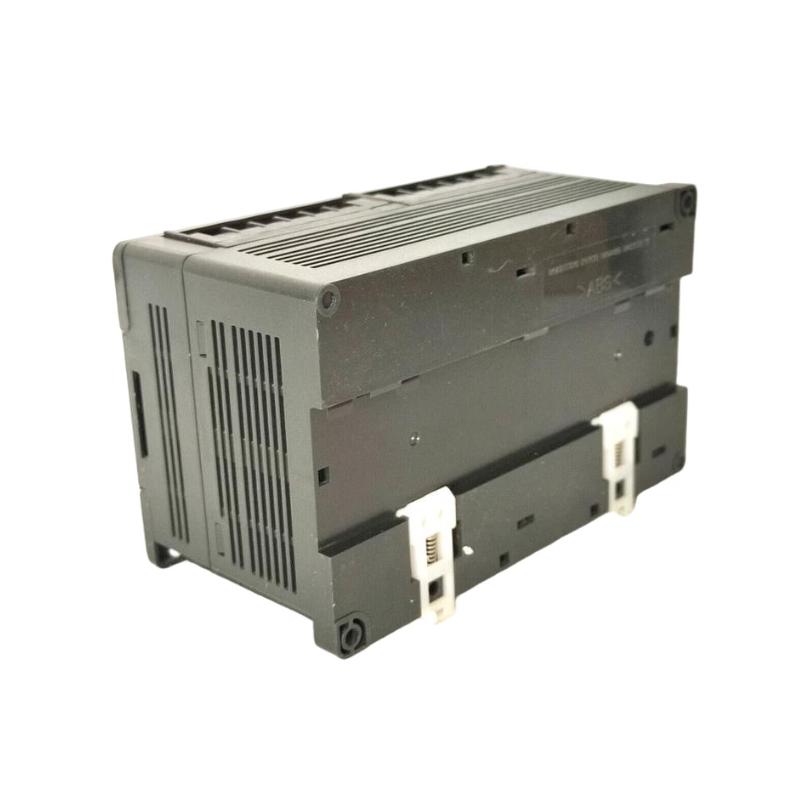

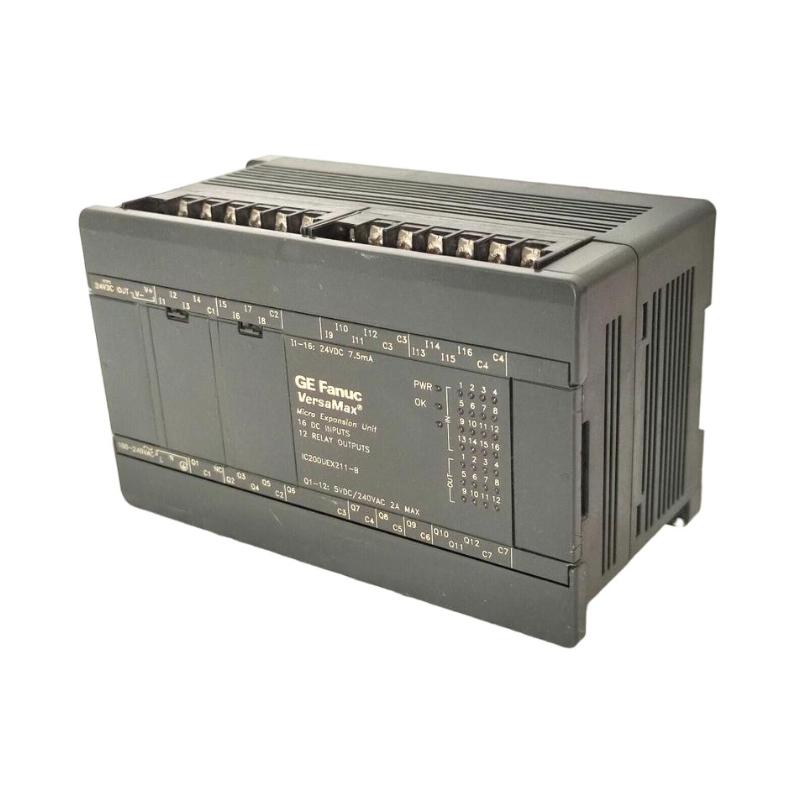

The GE IC200UEX211 is a VersaMax Micro 28-point expansion module designed to significantly increase the I/O capacity of a Micro PLC system. It provides a balanced combination of 16 digital inputs and 12 relay outputs, making it a highly practical solution for compact automation systems that require both signal monitoring and direct load switching.
It is widely used in OEM machinery and industrial control panels where flexibility, mixed I/O design, and AC/DC power compatibility are essential for real-world field applications.
Technical Specifications
The IC200UEX211 is a hybrid expansion unit combining DC input acquisition with relay-based output control.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Expansion Module |
| Series | GE VersaMax Micro |
| Total I/O Points | 28 points |
| Digital Inputs | 16 × 24VDC inputs |
| Digital Outputs | 12 × relay outputs (Form A, NO contact) |
| Input Type | Positive/negative logic configurable |
| Input Voltage Range | 0–30 VDC |
| Output Switching | AC/DC load compatible |
| Relay Rating | 2A per channel |
| Power Supply | 120/240 VAC |
| Sensor Power | Up to 200 mA auxiliary 24VDC |
| Response Time | 0.5–20 ms configurable |
| Isolation | 1500V RMS field-to-logic |
| Operating Temperature | -20°C to +60°C |
The module is engineered for stable operation in industrial environments and supports a wide range of field devices such as switches, sensors, solenoids, and motor starters.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 150 × 90 × 76 mm |
| Weight | 0.91 kg |
Recommended Related Models
- IC200UDR140 – 40-point micro PLC controller
- IC200UDR040 – 40-point relay PLC controller
- IC200UEI008 – 8-point input expansion module
- IC200UEO116 – 16-point output expansion module
- IC200PWR101 – AC power supply module
Popular Industrial Alternatives
- Siemens ET200 mixed I/O modules
- Allen-Bradley POINT I/O expansion systems
- Schneider Modicon TM3 mixed I/O modules
- Mitsubishi FX-series extension blocks
- Other GE VersaMax Micro expansion units
