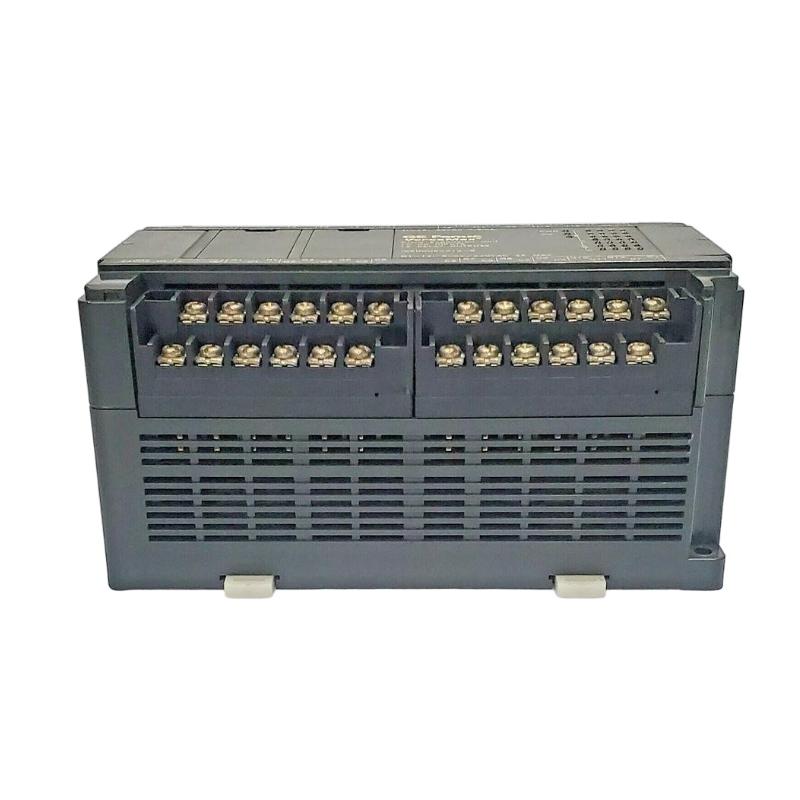

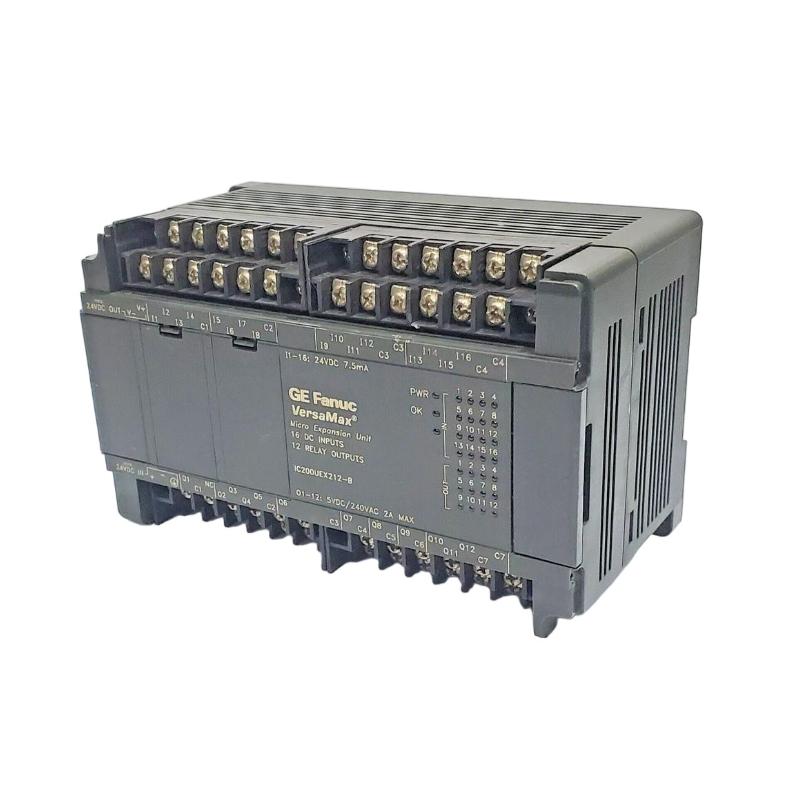

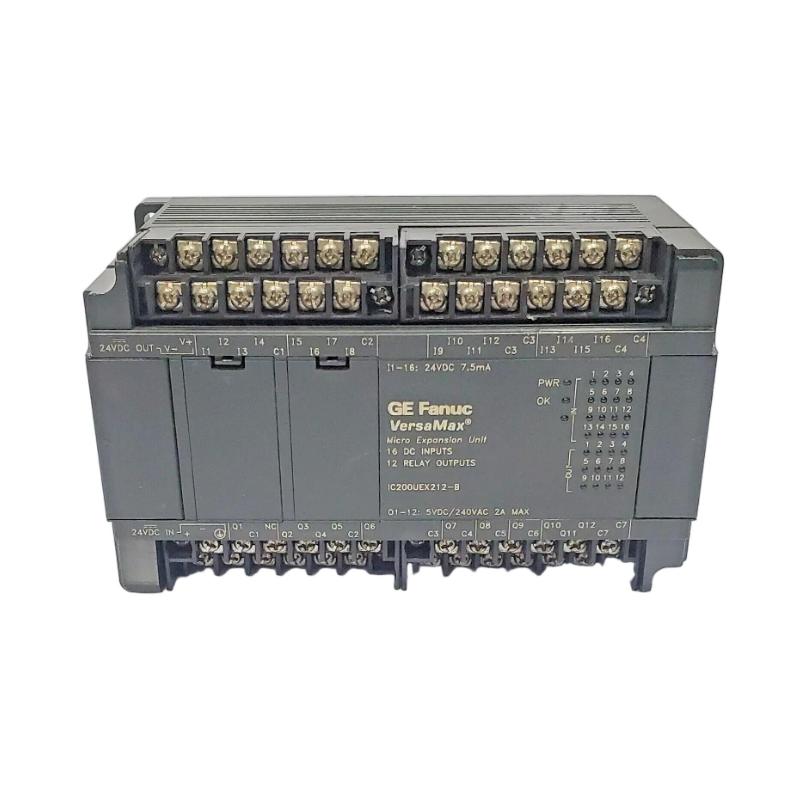

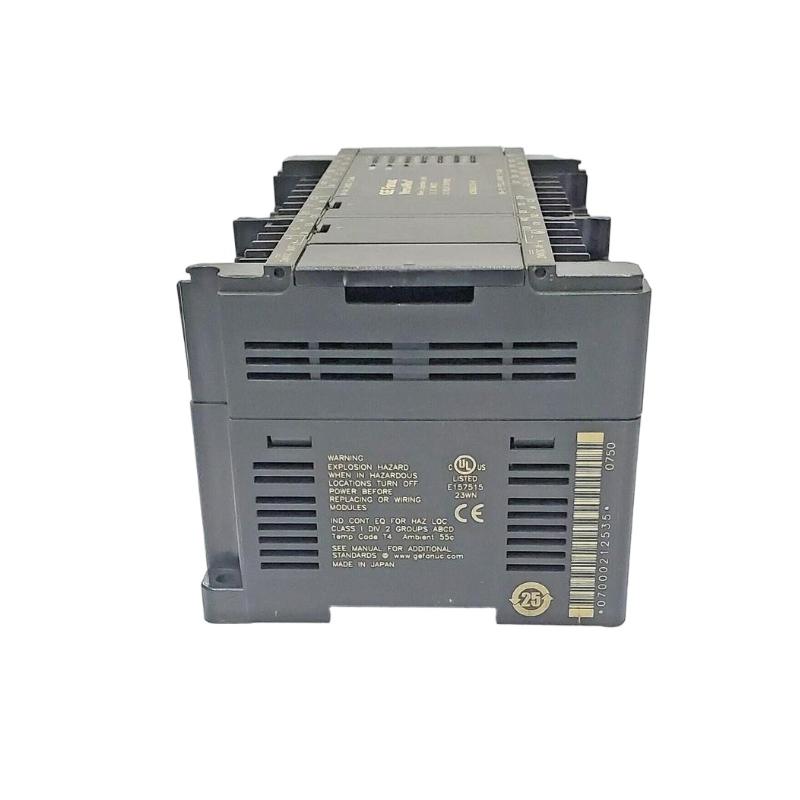

The GE IC200UEX212 is a VersaMax Micro PLC expansion module designed to increase system I/O capacity with a compact hybrid configuration of digital inputs and relay outputs. It is widely used in industrial automation systems that require additional field connections without upgrading the main CPU.
With 28 total points (16 inputs + 12 relay outputs), this module is a practical solution for OEM machinery, packaging lines, and distributed control panels where flexible expansion, reliable switching, and compact design are essential.
Technical Specifications
The IC200UEX212 provides mixed I/O expansion with industrial-grade electrical isolation and relay switching capability.
| Parameter | Specification |
|---|---|
| Module Type | Micro PLC Expansion Module |
| Series | GE VersaMax Micro |
| Total I/O Points | 28 points |
| Digital Inputs | 16 × 24VDC inputs |
| Digital Outputs | 12 × relay outputs (Form A, NO) |
| Input Voltage Range | 0–30 VDC |
| Output Rating | 2A per relay (AC/DC loads) |
| Power Supply | 24 VDC nominal |
| Input Power Rating | ~8W |
| Sensor Supply | Up to 200 mA @ 24 VDC |
| Input Logic | Positive / negative configurable |
| Response Time | 0.5–20 ms typical |
| High-Speed Capability | Up to 4 HSC channels supported |
| Electrical Isolation | 1500V RMS field-to-logic |
The module supports a wide range of industrial devices such as sensors, switches, solenoids, and motor starters, ensuring stable operation in noisy environments.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 150 × 90 × 76 mm |
| Weight | 0.91 kg |
Recommended Related Models
- IC200UDR140 – 40-point micro PLC controller
- IC200UDR040 – 40-point relay controller
- IC200UEX014 – 14-point mixed I/O expansion
- IC200UEO116 – 16-point output expansion module
- IC200UEI008 – 8-point input expansion module
Popular Industrial Alternatives
- Siemens ET200 mixed I/O modules
- Allen-Bradley POINT I/O expansion systems
- Schneider Modicon TM3 I/O modules
- Mitsubishi FX-series expansion blocks
- Other GE VersaMax Micro expansion units
