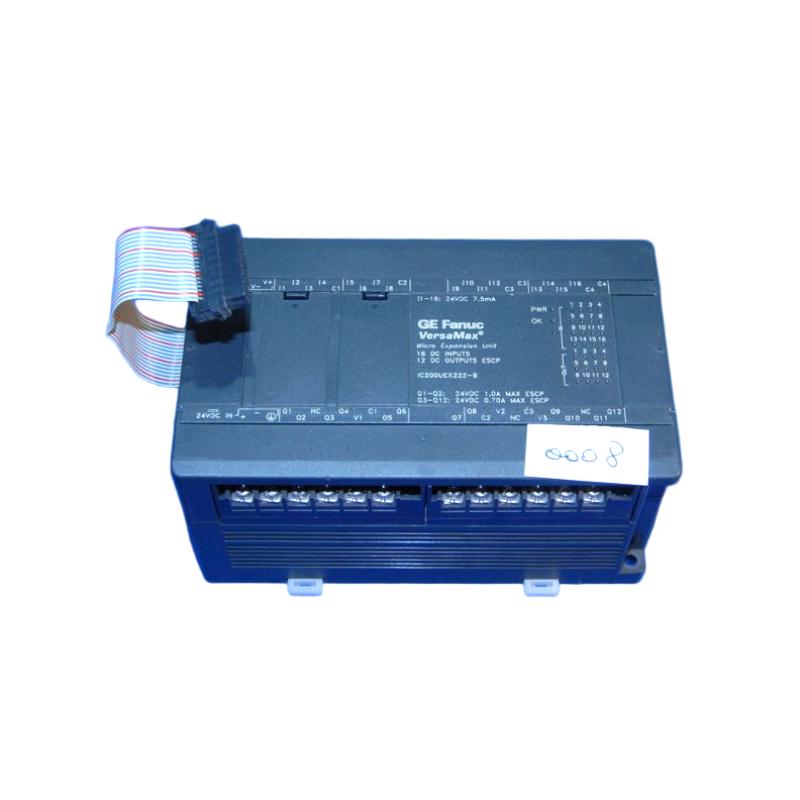

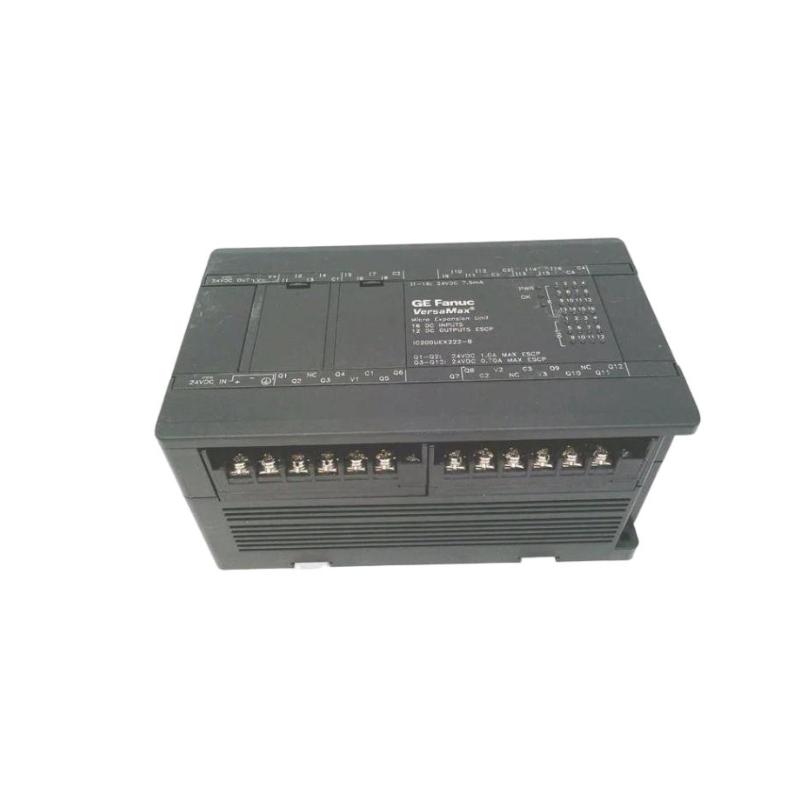

The GE IC200UEX222 is a high-density VersaMax Micro PLC expansion module designed to extend system I/O capacity with a compact 28-point mixed configuration. It integrates 16 digital inputs and 12 24VDC transistor outputs with electronic short-circuit protection (ESCP), making it a robust choice for industrial automation systems requiring fast switching and reliable field connectivity.

This module is commonly used in OEM machinery, packaging systems, and distributed control applications where stable 24VDC control, compact expansion, and high-speed response are required without increasing PLC CPU complexity.

Technical Specifications

The IC200UEX222 is engineered for mixed I/O expansion with built-in protection and industrial-grade signal handling.

Parameter	Specification
Module Type	Micro PLC Expansion Module
Series	GE VersaMax Micro
Total I/O Points	28 points
Digital Inputs	16 × 24VDC inputs (positive logic configurable)
Digital Outputs	12 × 24VDC transistor outputs
Output Protection	Electronic Short-Circuit Protection (ESCP)
Input Voltage Range	19.2–30 VDC
Power Supply	24 VDC nominal
Output Load Capacity	0.5A / 1.0A grouped outputs
Field Power	24VDC auxiliary supply (up to 200 mA)
Response Time	~10 ms typical
Input Current	~7.5 mA per input
Isolation	1500V RMS field-to-logic isolation
Expansion Capability	Up to 4 modules per system

The module is designed for safe operation under industrial electrical conditions, with integrated protection to reduce external wiring complexity.

Physical Dimensions & Weight

Item	Value
Dimensions (H × W × D)	150 × 90 × 76 mm
Weight	~0.6–0.9 kg

Recommended Related Models

IC200UEX212 – relay output mixed I/O expansion
IC200UEX211 – AC-powered relay expansion module
IC200UEX214 – transistor output expansion variant
IC200UDR140 – 40-point micro PLC controller
IC200PWR101 – AC power supply module

Popular Industrial Alternatives

Siemens ET200 mixed I/O modules
Allen-Bradley POINT I/O expansion modules
Schneider Modicon TM3 expansion units
Mitsubishi FX-series extension blocks
Other GE VersaMax Micro expansion modules

Applications

The IC200UEX222 is widely used in compact automation systems requiring mixed I/O expansion:

OEM machinery and automated production lines
Packaging and labeling systems
Conveyor and material handling control
Pump and valve automation systems
HVAC and building automation
Industrial signal monitoring and control
Distributed control panels

Advantages

Provides 28 integrated I/O points in a single module
Combines inputs and transistor outputs in compact design
Built-in electronic short-circuit protection (ESCP) improves safety
24VDC architecture simplifies industrial wiring
High-speed response suitable for real-time control
Supports multiple expansion modules in one system
Reduces need for separate discrete I/O modules

Technical FAQs

1. What is the GE IC200UEX222 used for?
It is a 28-point mixed I/O expansion module for VersaMax Micro PLC systems.

2. How many inputs and outputs does it have?
16 digital inputs and 12 transistor outputs.

3. What type of outputs does it use?
24VDC transistor outputs with ESCP protection.

4. What is the power supply requirement?
24VDC nominal (19.2–30VDC range).

5. Does it support AC loads?
No, it is designed for 24VDC transistor output control.

6. What is ESCP protection?
Electronic short-circuit protection that automatically safeguards outputs from overload conditions.

7. How many expansion modules can be used?
Up to 4 modules per PLC system.

8. What is the response time?
Approximately 10 ms typical.

9. What is the maximum output current?
0.5A to 1.0A per grouped output section.

10. What is its main advantage?
It provides high-density, protected 24VDC I/O expansion in a compact industrial module.
