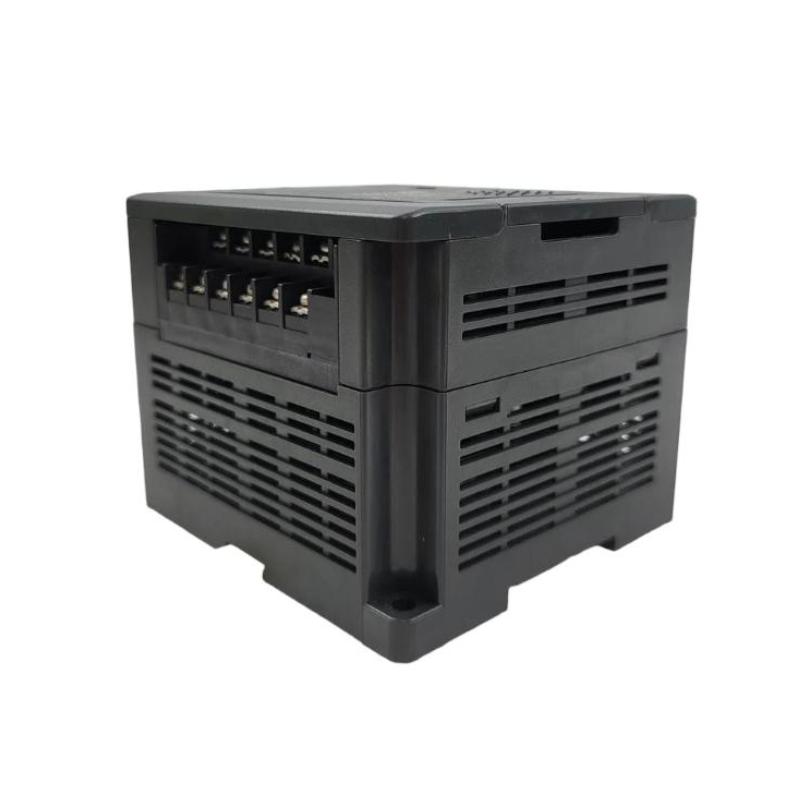

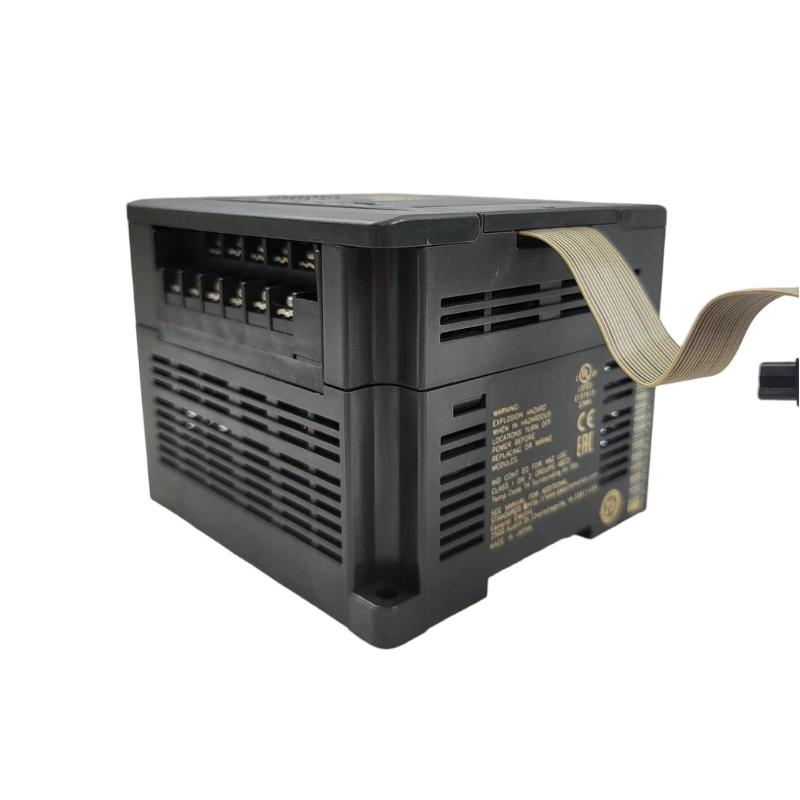

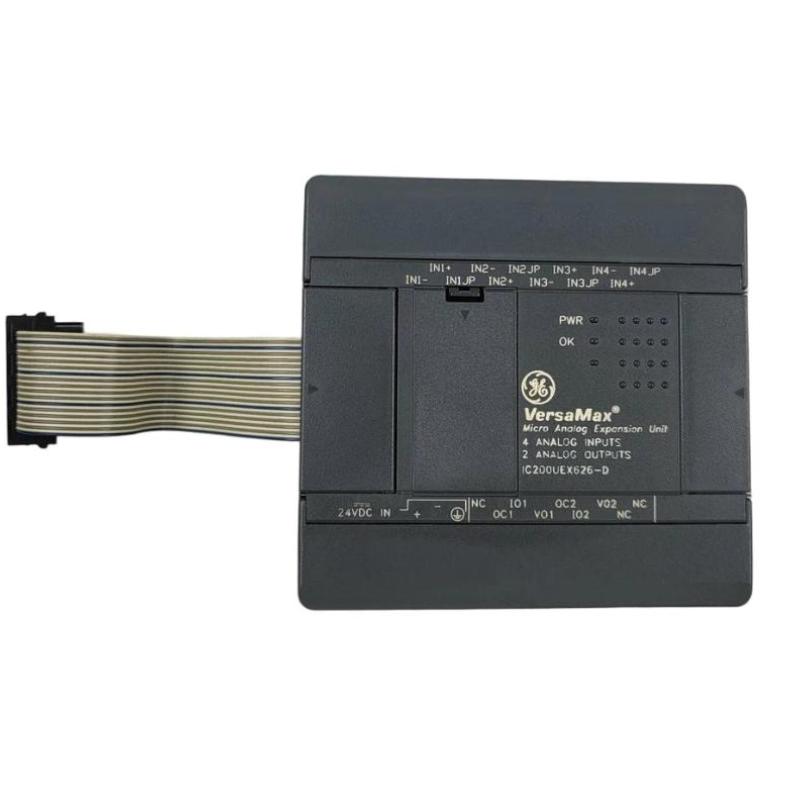

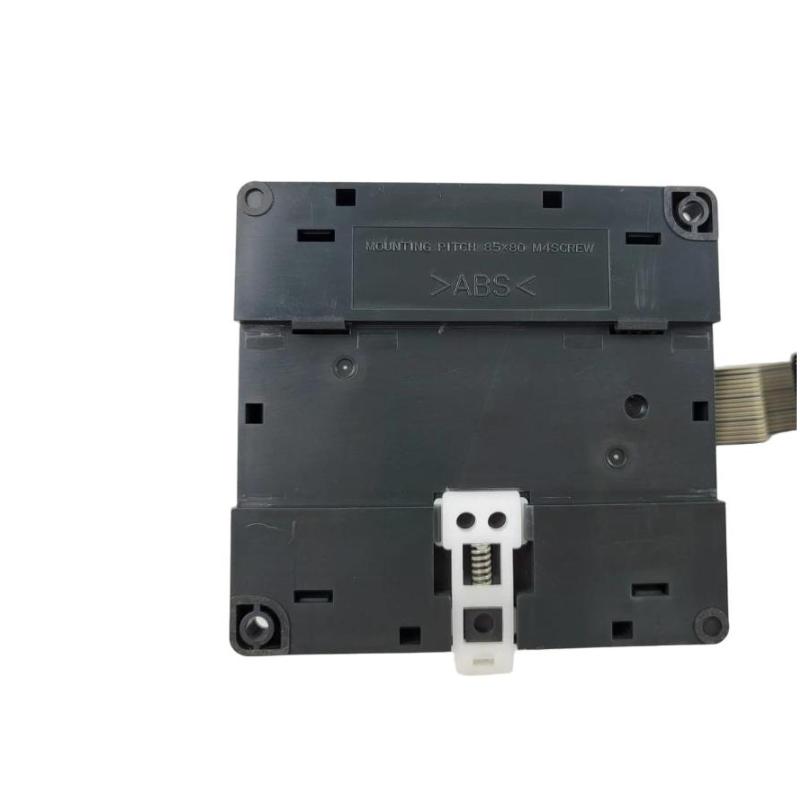

The GE IC200UEX626 is a VersaMax Micro analog expansion module designed to add precision analog signal handling to a Micro PLC system. It provides 6 total analog channels (4 inputs + 2 outputs), enabling accurate measurement and control of real-world process variables such as temperature, pressure, flow, and level.
This module is widely used in industrial automation systems where high-resolution analog data acquisition, compact modular expansion, and stable process control are required without upgrading the main PLC controller.
Technical Specifications
The IC200UEX626 is engineered for mixed analog input/output processing with industrial-grade signal accuracy.
| Parameter | Specification |
|---|---|
| Module Type | Analog Expansion Module |
| Series | GE VersaMax Micro |
| Total Channels | 6 channels |
| Analog Inputs | 4 differential inputs |
| Analog Outputs | 2 single-ended outputs |
| Input Signal Types | 0–10V, ±10V, 0–20mA, 4–20mA |
| Output Signal Types | 0–10V, 0–20mA, 4–20mA |
| Resolution | 12-bit |
| Accuracy | ±1% of full scale |
| Power Supply | 24 VDC (19.2–30 VDC range) |
| Power Consumption | ~3–5 W |
| Sensor Supply | Up to 200 mA auxiliary 24VDC |
| Input Filtering | ~20 ms response time |
| Isolation | Non-isolated analog channels (field dependent) |
| Communication | Via VersaMax Micro backplane |
The module is designed for precise analog signal processing and stable industrial operation in process control environments.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 105 × 130 × 64 mm |
| Weight | 0.24 kg |
Recommended Related Models
- IC200UEI008 – 8-point digital input expansion module
- IC200UEO116 – 16-point transistor output expansion module
- IC200UEX014 – mixed 14-point I/O expansion module
- IC200UDR140 – 40-point micro PLC controller
- IC200PWR101 – AC power supply module
