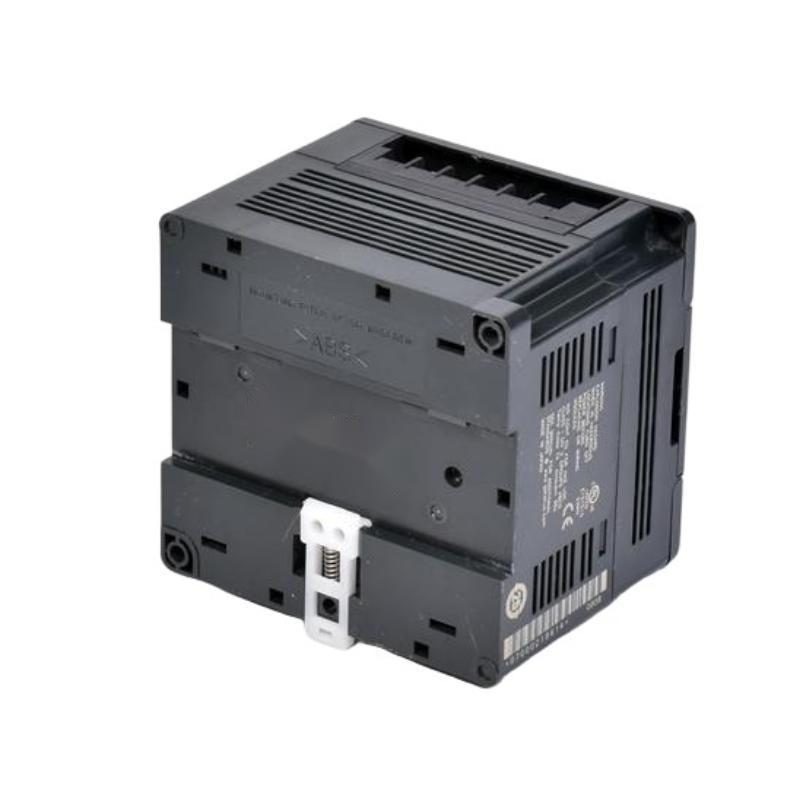

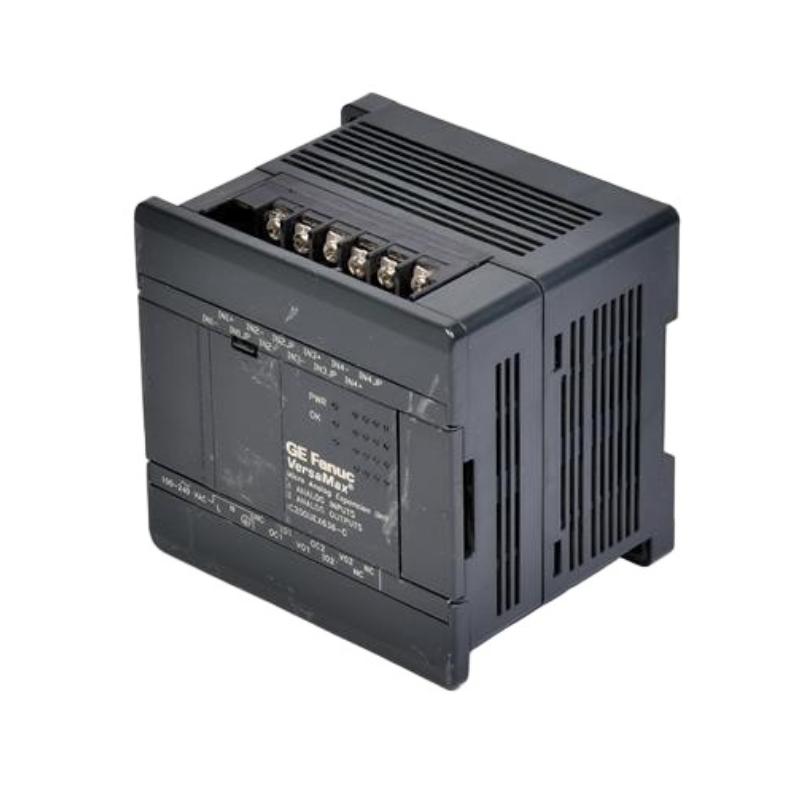

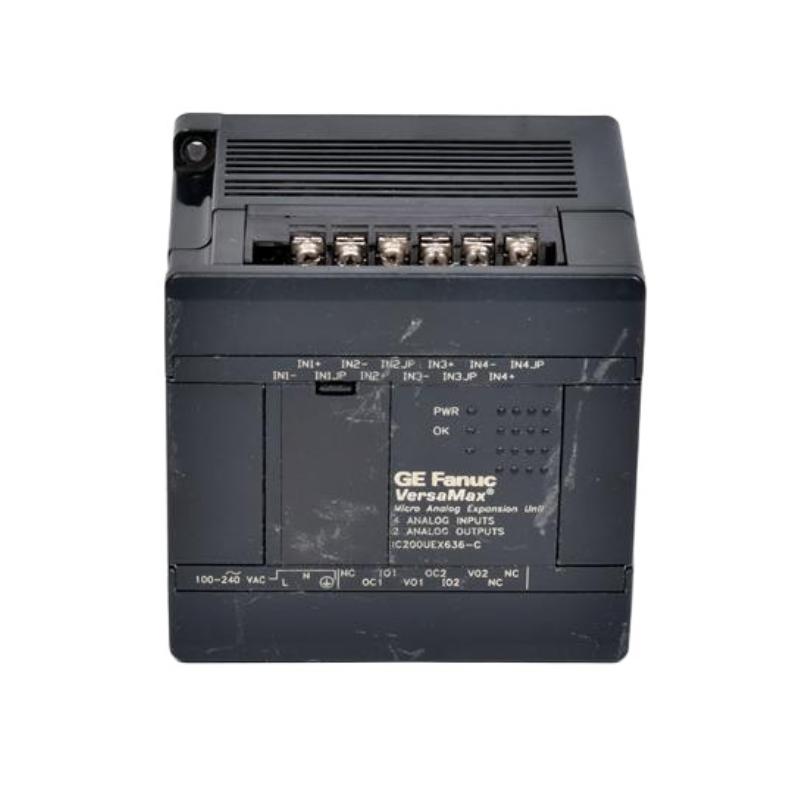

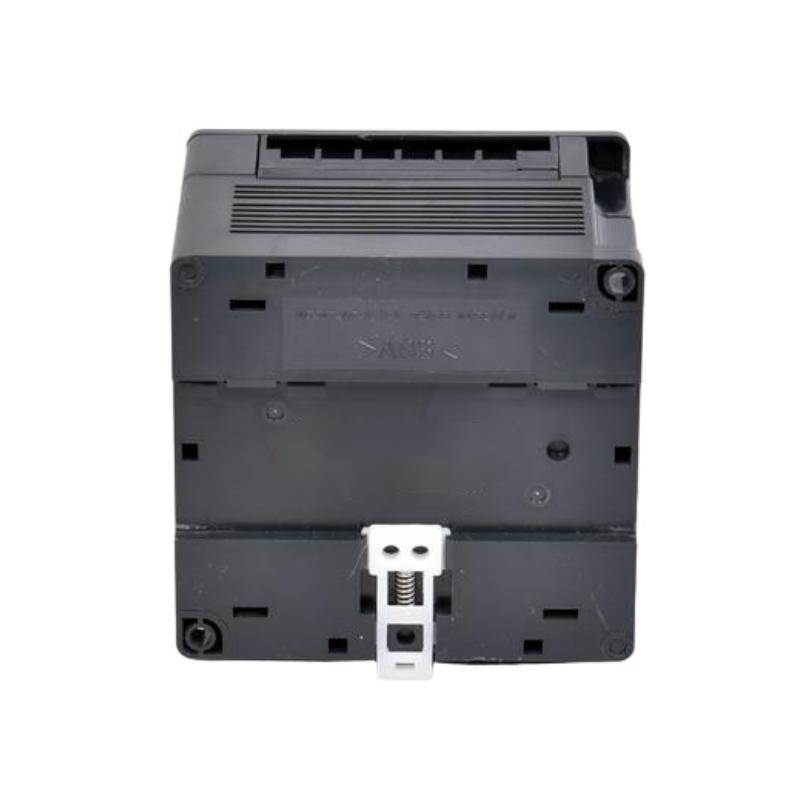

The GE IC200UEX636 is a high-performance VersaMax Micro analog expansion module engineered to bring precise analog signal processing into compact PLC systems. Featuring 6 analog channels (4 inputs + 2 outputs), it enables accurate monitoring and control of real-world industrial variables such as temperature, pressure, flow, and level.
Designed for systems that demand stable analog performance, flexible signal compatibility, and scalable architecture, this module is widely used in process control, OEM equipment, and data acquisition environments.
Technical Specifications
The IC200UEX636 delivers reliable analog performance with support for multiple signal types and industrial-grade accuracy.
| Parameter | Specification |
|---|---|
| Module Type | Analog Expansion Module |
| Series | GE VersaMax Micro |
| Total Channels | 6 channels |
| Analog Inputs | 4 channels (differential) |
| Analog Outputs | 2 channels |
| Input Signal Types | 0–10V, ±10V, 0–20mA, 4–20mA |
| Output Signal Types | 0–10V, 0–20mA, 4–20mA |
| Resolution | 12-bit (input & output) |
| Accuracy | High precision industrial grade |
| Power Supply | 120/240 VAC |
| Input Power Rating | ~15 VA |
| Sensor Supply | 200 mA @ 24VDC |
| Response Time | ~20 ms typical |
| Mounting | DIN rail |
| Expansion Capability | Supports VersaMax Micro expansion architecture |
This module supports both voltage and current signals, allowing flexible integration with sensors and actuators in industrial systems.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 95 × 90 × 76 mm |
| Weight | ~2.0 kg |
Recommended Related Models
- IC200UEX626 – 6-channel analog expansion (DC-powered variant)
- IC200UEX014 – 14-point mixed I/O expansion module
- IC200UEO116 – 16-point transistor output module
- IC200UDR140 – 40-point micro PLC controller
- IC200PWR101 – system power supply module
Popular Industrial Alternatives
- Siemens ET200 analog modules
- Allen-Bradley POINT I/O analog modules
- Schneider Modicon TM3 analog expansion units
- Mitsubishi FX analog extension modules
- Other GE VersaMax Micro analog modules
