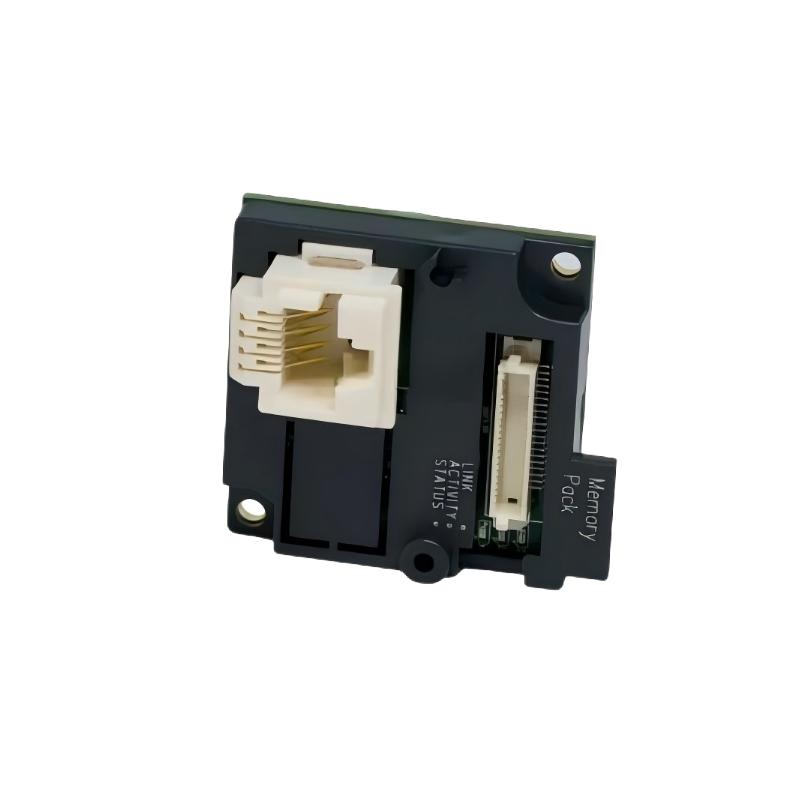

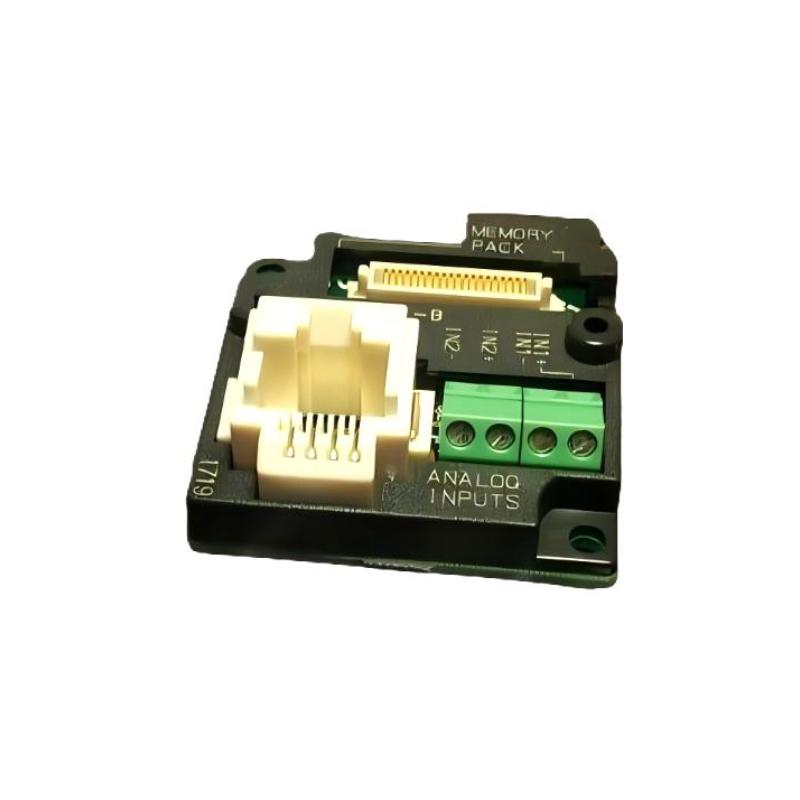

The GE IC200USB001 is a specialized VersaMax Micro communication option module designed to expand the connectivity capabilities of Micro 20, 40, and 64 PLC systems. Despite its name, this module functions primarily as an RS-232 communication interface with integrated analog input capability, offering both communication and signal acquisition in one compact board.
It is widely used in industrial automation systems where serial communication, basic analog monitoring, and program storage flexibility are required without adding separate modules—making it a smart upgrade for compact PLC architectures.
Technical Specifications
The IC200USB001 integrates communication and analog functionality into a single option board for VersaMax Micro controllers.
| Parameter | Specification |
|---|---|
| Module Type | Communication Option Module |
| Series | GE VersaMax Micro |
| Communication Interface | RS-232 (RJ45-based) |
| Supported Protocols | SNP, SNPX, Modbus (Master/Slave), Serial Read/Write |
| Analog Inputs | 2 × 0–10 VDC channels |
| Analog Resolution | 10-bit |
| Compatible PLCs | Micro 20 / 40 / 64 |
| Programming Support | Yes (Proficy Machine Edition) |

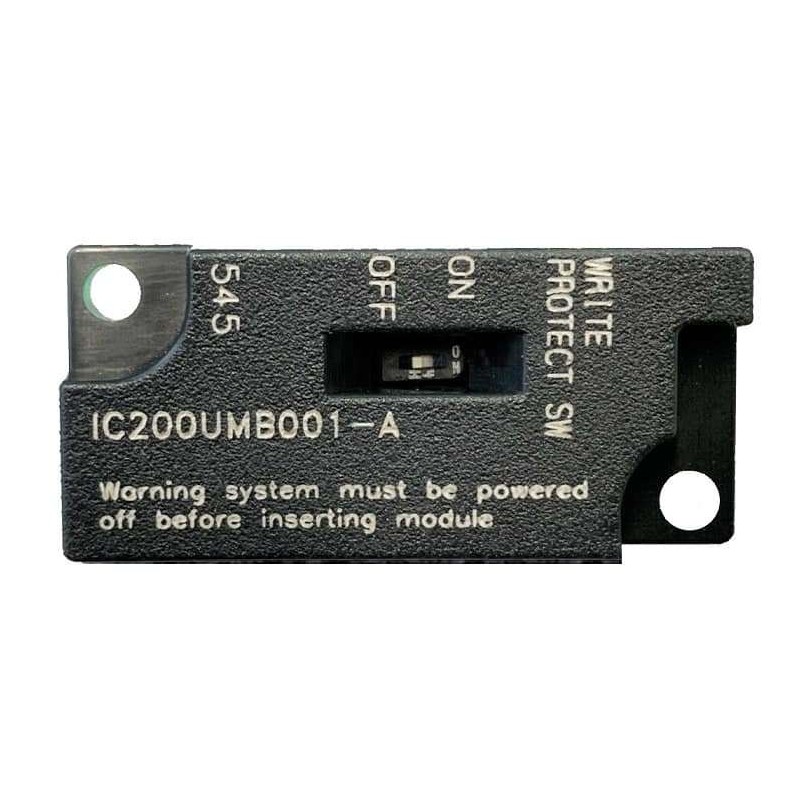

| Memory Module Support | Yes (program storage/download) |

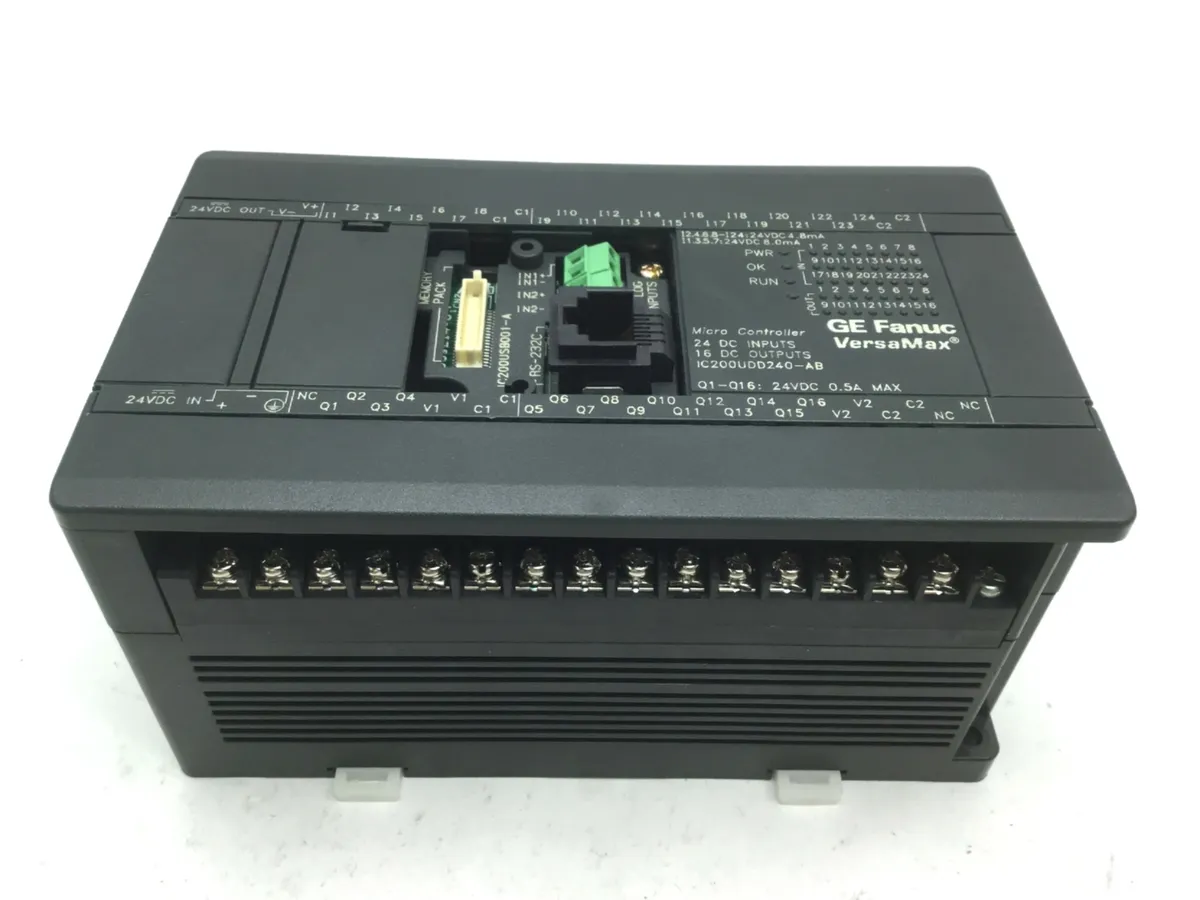

| Installation | Plug-in option board (Port 2) |
| Functionality | Communication + analog signal acquisition |
| Communication Speed | Configurable serial parameters |
The module allows simultaneous serial communication and analog signal monitoring, reducing the need for additional expansion hardware.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 25 × 50 × 15 mm |
| Weight | 0.10 kg |
