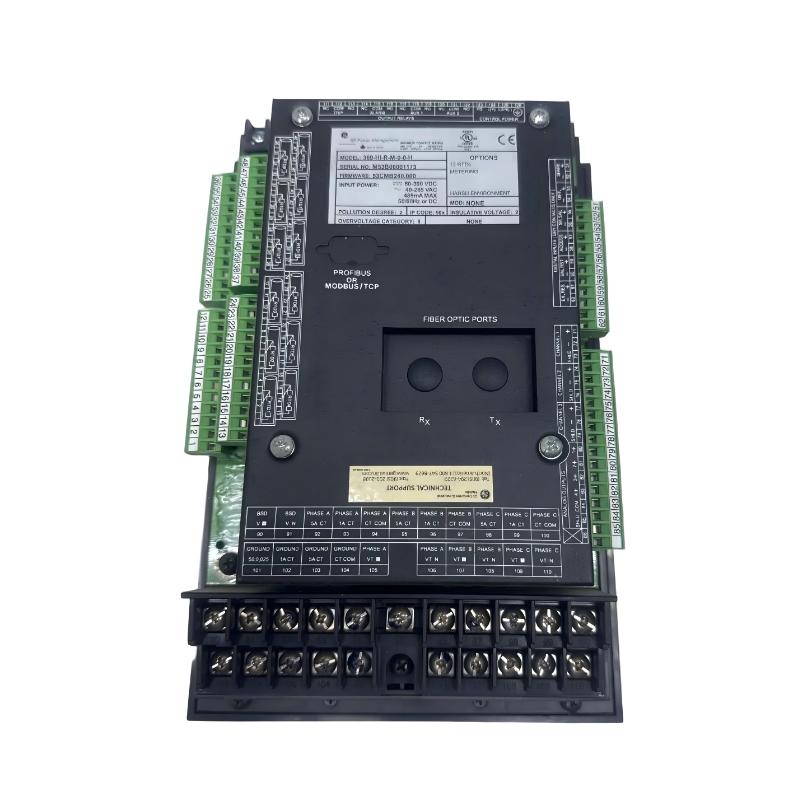

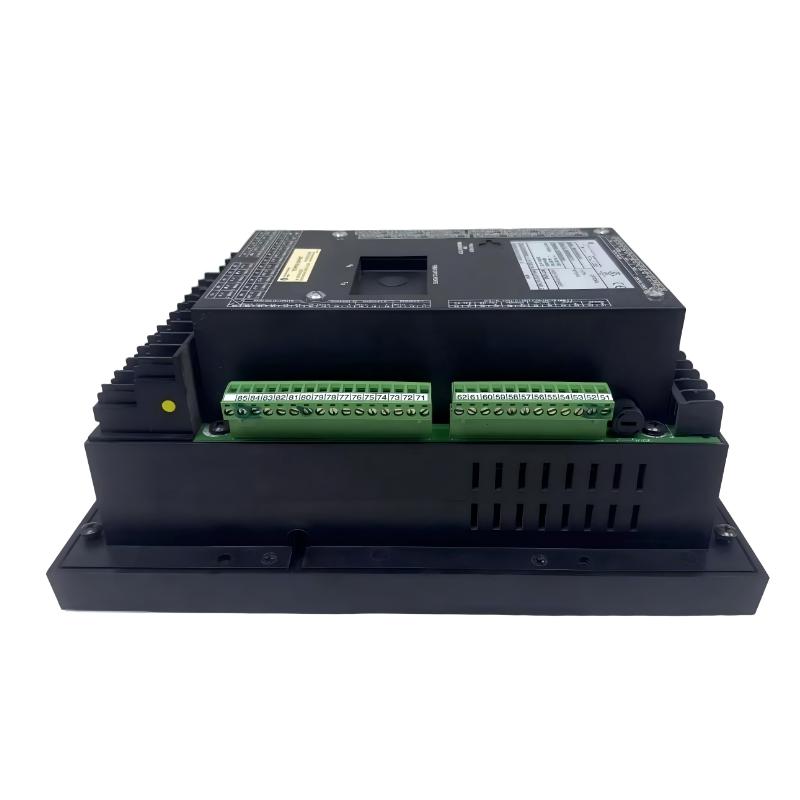

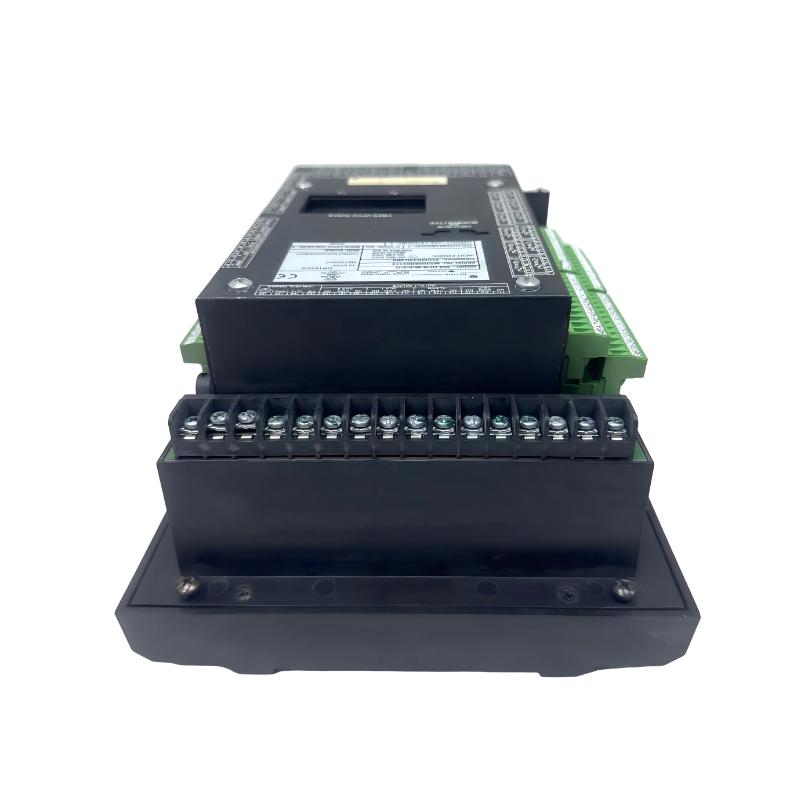

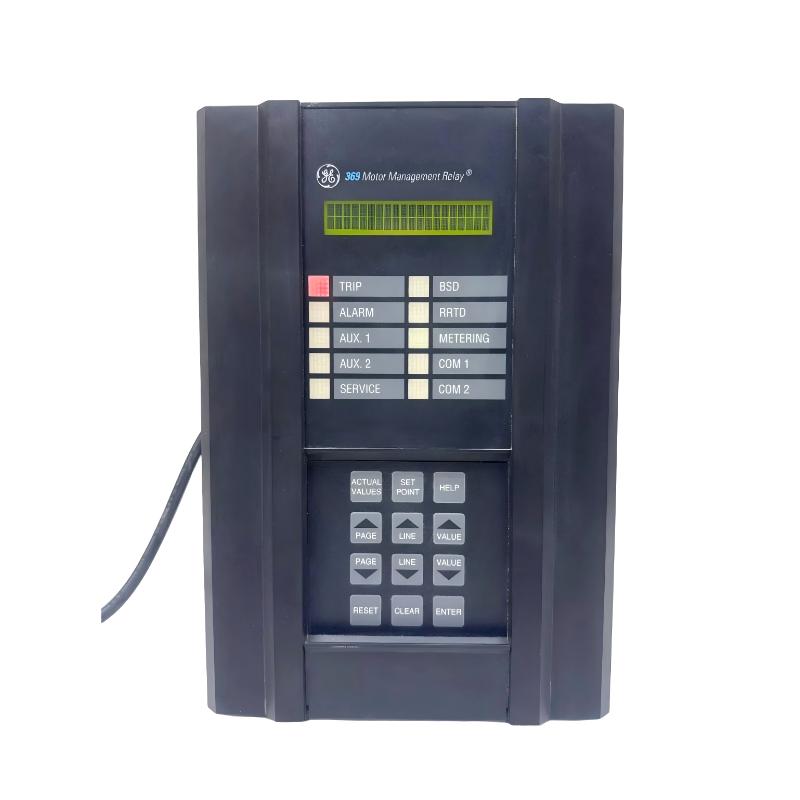

The GE 369-HI-R-M-0-0-0-0 is a high-performance motor management relay module from the renowned Multilin 369 series, engineered for comprehensive protection, monitoring, and control of medium to large three-phase motors. It combines advanced protection algorithms with real-time diagnostics, making it a trusted solution in mission-critical industrial environments.
Designed to reduce downtime and extend motor life, this relay integrates event recording, waveform capture, and intelligent metering, giving engineers deep visibility into motor health and system performance.
Technical Specifications
The 369-HI-R-M-0-0-0-0 delivers advanced protection and monitoring capabilities tailored for industrial motor systems.
| Parameter | Specification |
|---|---|
| Module Type | Motor Management Relay |
| Series | GE Multilin 369 |
| Motor Type | Medium / large three-phase motors |
| Control Power | 110–250 VDC / 100–240 VAC |
| Current Inputs | 1A / 5A secondary |
| Digital Inputs | 6 optically isolated |
| Communication Ports | RS232 + RS485 |
| Protocols | Serial communication (EnerVista support) |
| Event Recording | Up to 512 events |
| Waveform Capture | Yes (multi-cycle recording) |
| RTD Inputs | 12 built-in RTD channels (R option) |
| Metering Function | Included (M option) |
| Protection Features | Overload, short circuit, thermal, phase loss |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | Up to 95% non-condensing |
The relay is capable of adaptive protection, learning motor characteristics and adjusting protection parameters dynamically for optimal performance.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 292 × 140 × 216 mm |
| Weight | 3.6 kg |
