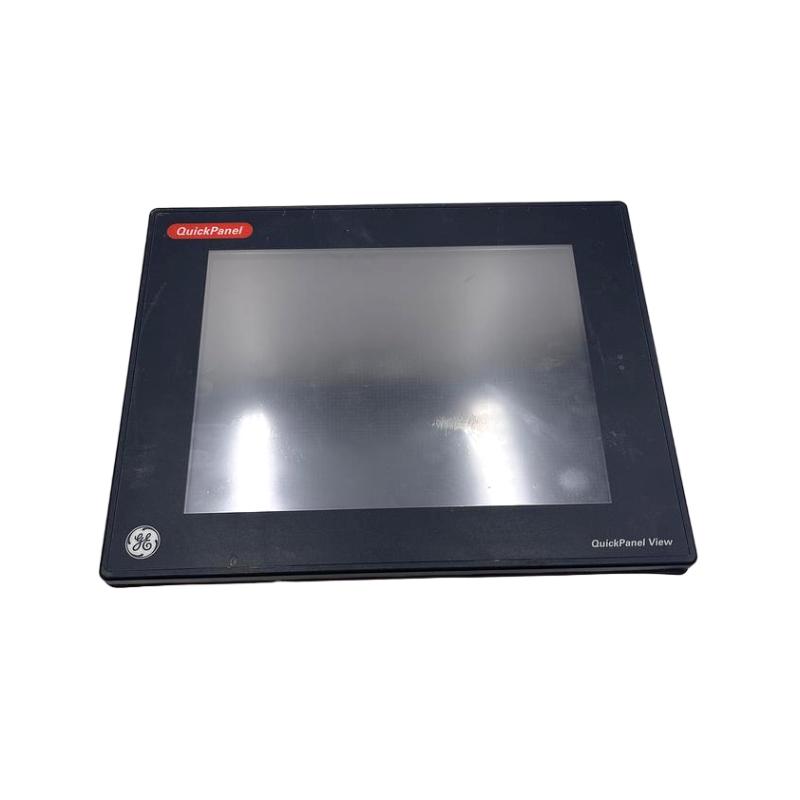

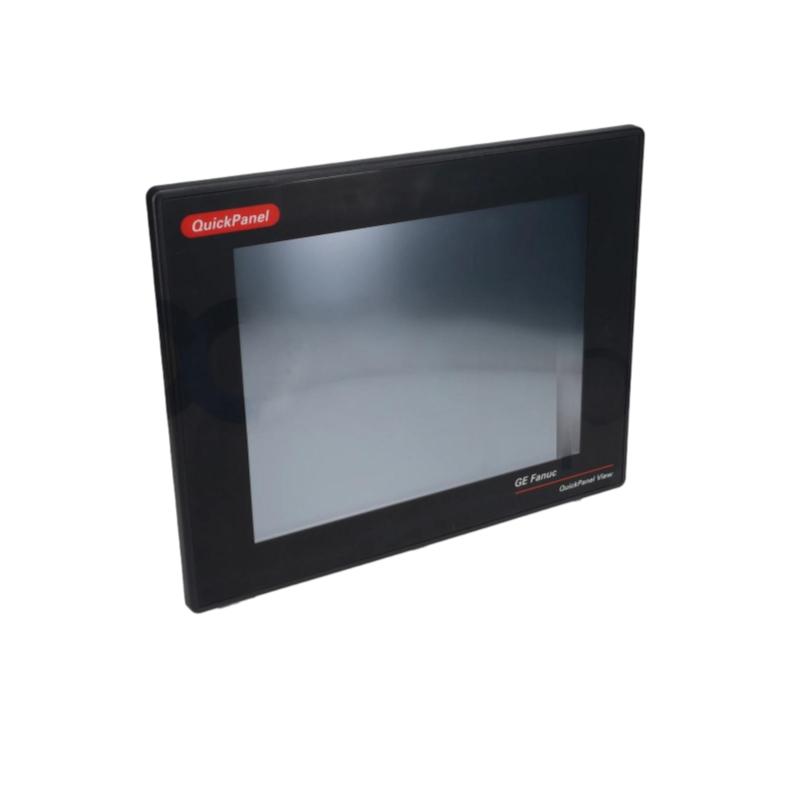

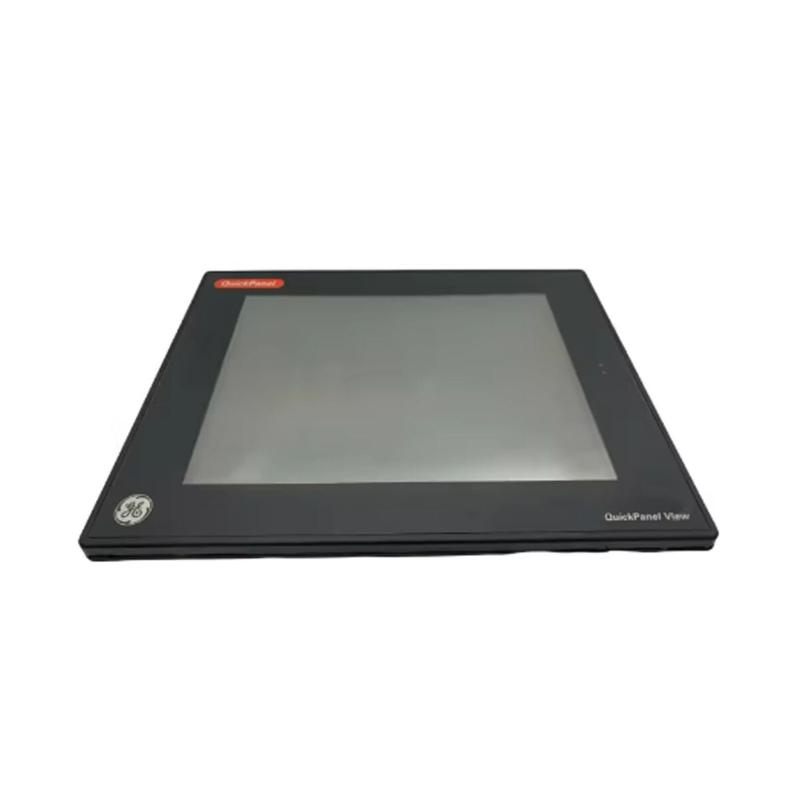

The GE IC754VSI12CTD is a 12-inch QuickPanel+ Human Machine Interface (HMI) designed for industrial automation systems requiring reliable visualization, operator control, and real-time process interaction. Built as an all-in-one industrial touchscreen computer, it combines a high-resolution display, embedded operating system, and multi-protocol communication capability.
It is widely used in factory automation environments where operators need a clear, responsive, and durable interface for monitoring and controlling PLC-driven processes.
Technical Specifications
The IC754VSI12CTD integrates computing, visualization, and industrial communication into a compact operator terminal.
| Parameter | Specification |
|---|---|
| Module Type | HMI Operator Interface |
| Series | GE QuickPanel+ |
| Display Size | 12.1-inch TFT LCD |
| Resolution | 800 × 600 (SVGA) |
| Color Depth | 24-bit color |
| Touch Type | Resistive touchscreen |
| Processor | Industrial embedded CPU (ARM-based / x86 variant depending on revision) |
| Memory | Up to 512 MB RAM / Flash storage (variant-dependent) |
| Operating System | Windows Embedded Compact |
| Communication Ports | Ethernet + RS-232/RS-485 |
| USB Ports | Available (model dependent) |
| Power Supply | 24 VDC (12–24 VDC range) |
| Power Consumption | ~15–48 W |
| Data Logging | Supported |
| Programming Software | Proficy Machine Edition |
The unit is designed to support industrial visualization, data logging, and PLC communication in real time.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 192 × 137 × 36 mm |
| Weight | ~0.8–4.5 kg (depending on configuration) |
Recommended Related Models
- IC754VSI10CTD – 10.4" QuickPanel HMI variant
- IC754VGI12CTD – 12" monochrome/alternate display variant
- IC754VBI12CTD – enhanced industrial interface model
- GE QuickPanel+ 7" series HMIs
- GE RX3i PLC systems (for full control integration)
Popular Industrial Alternatives
- Siemens SIMATIC HMI Comfort Panels
- Allen-Bradley PanelView Plus HMIs
- Schneider Magelis GTU HMIs
- Mitsubishi GOT series HMIs
- Weintek cMT series industrial panels
