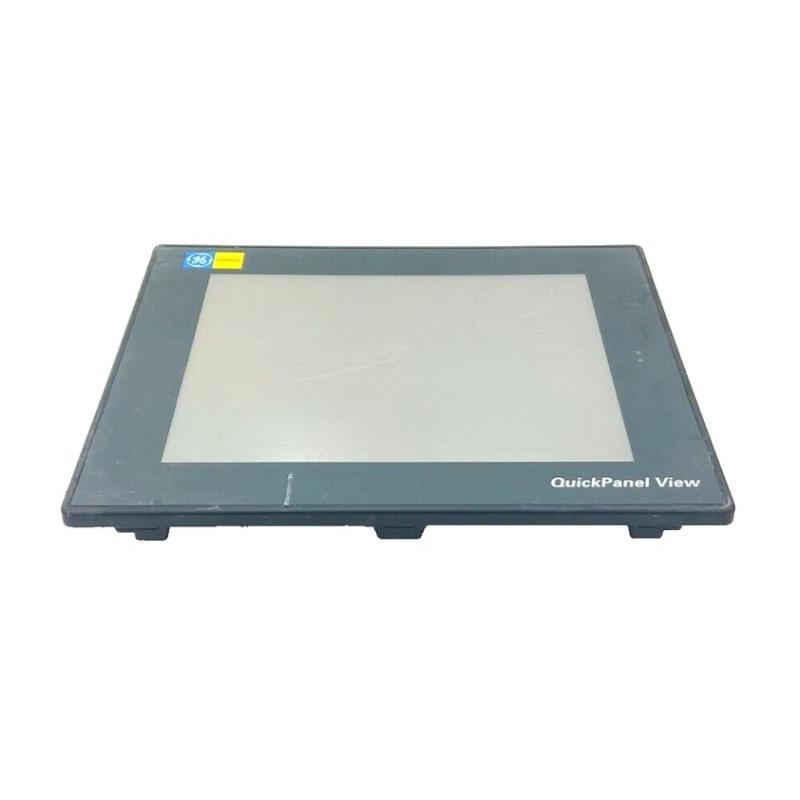

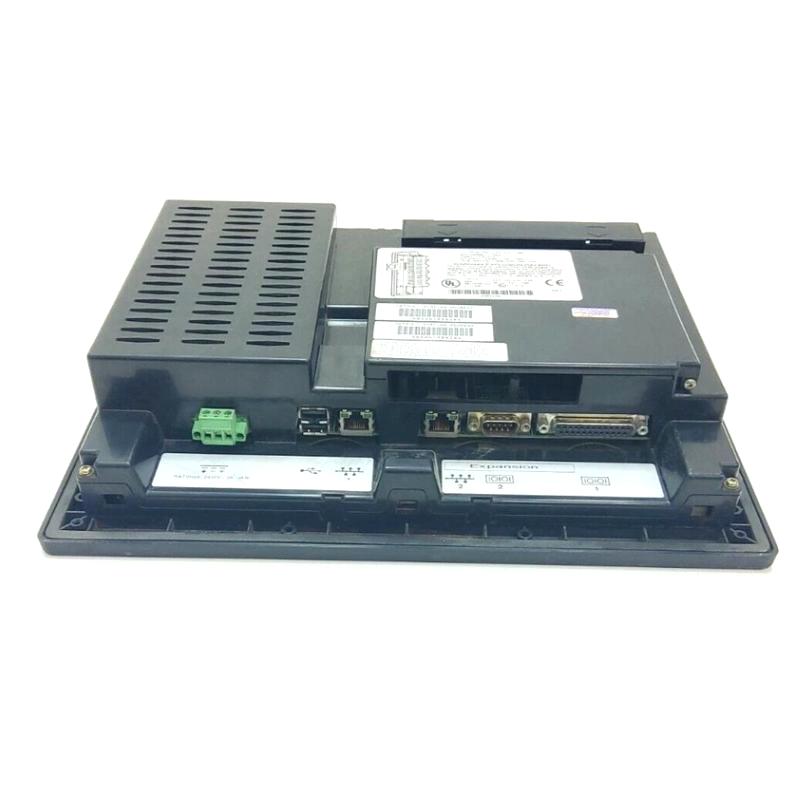

The GE IC754VGL12CTD is a 12-inch QuickPanel+ Human Machine Interface (HMI) designed for industrial automation systems requiring reliable operator control, real-time visualization, and multi-protocol communication.
As part of GE’s QuickPanel+ series, this unit functions as an all-in-one industrial touchscreen controller, combining display, computing, and communication capabilities into a single rugged platform. It is widely used in manufacturing, process control, and machine automation environments where clarity, responsiveness, and system integration are critical.
Technical Specifications
The IC754VGL12CTD is built for industrial-grade visualization and control with flexible connectivity.
| Parameter | Specification |
|---|---|
| Module Type | HMI Operator Interface Terminal |
| Series | GE QuickPanel+ |
| Display Size | 12.1-inch TFT LCD |
| Resolution | 800 × 600 (SVGA) |
| Color Depth | 16-bit / 32K+ colors (typical QuickPanel class) |
| Touch Type | Resistive touchscreen |
| Processor | Industrial embedded CPU (ARM-based platform) |
| Operating System | Windows Embedded Compact |
| Memory | ~32–64 MB (variant dependent) |
| Communication Ports | Ethernet + RS-232 / RS-485 |
| USB Ports | Available (configuration dependent) |
| Programming Software | Proficy Machine Edition |
| Power Supply | 12–24 VDC |
| Power Consumption | ~25–48 W |
| Data Logging | Supported |
| Mounting | Panel mount (industrial enclosure) |
The QuickPanel+ architecture allows integration with GE PLCs and third-party controllers, supporting modern industrial communication standards.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~320 × 245 × 55 mm |
| Weight | ~1.5–2.5 kg |
Recommended Related Models
- IC754VSI12CTD – Ethernet-enabled 12" HMI variant
- IC754VSF12CTD – Control-loaded QuickPanel HMI model
- IC754VSL12CTD – legacy QuickPanel View terminal
- GE QuickPanel+ 10.4" HMI series
- GE RX3i PLC systems for full automation integration
Popular Industrial Alternatives
- Siemens SIMATIC Comfort Panel HMIs
- Allen-Bradley PanelView Plus 7
- Schneider Magelis GTU series
- Mitsubishi GOT2000 series
- Weintek cMT advanced HMIs
