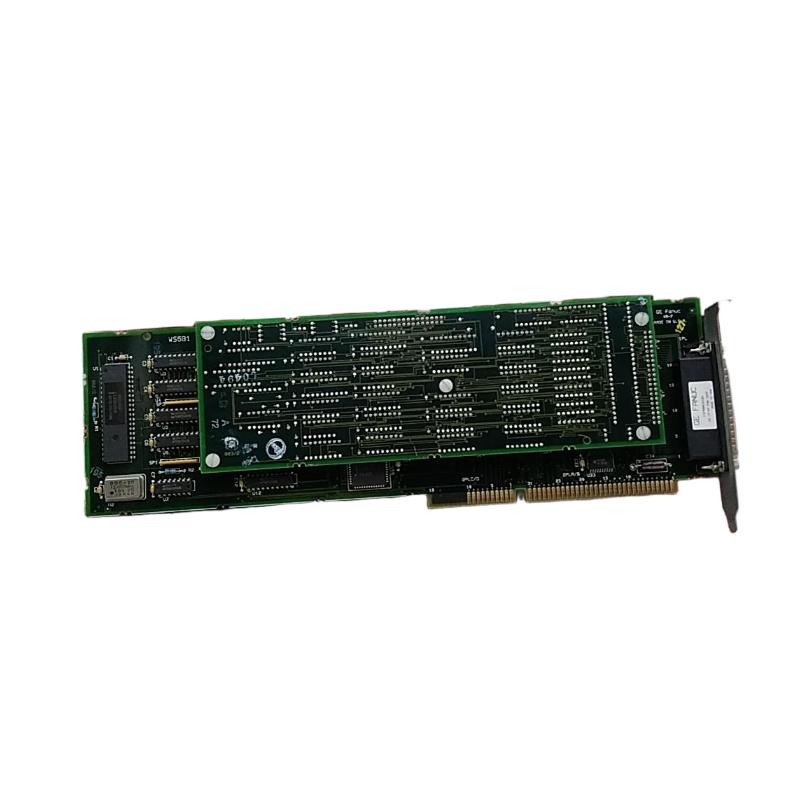

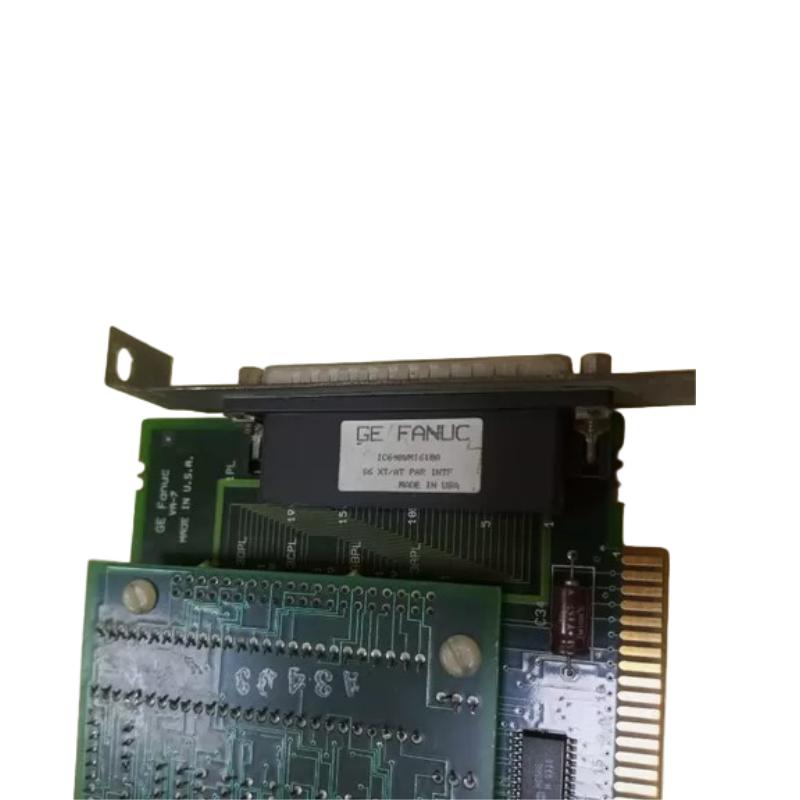

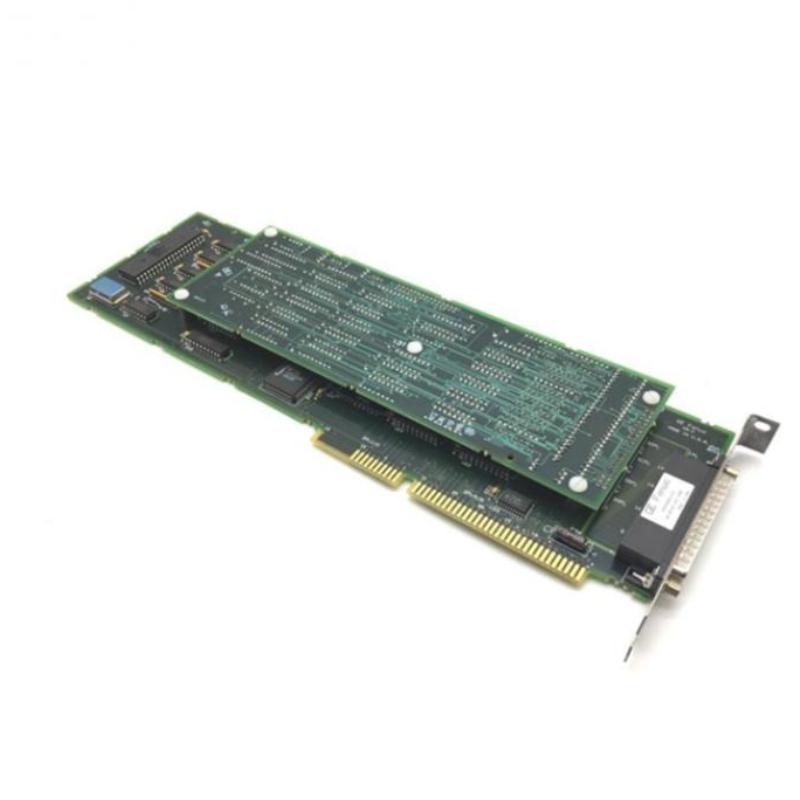

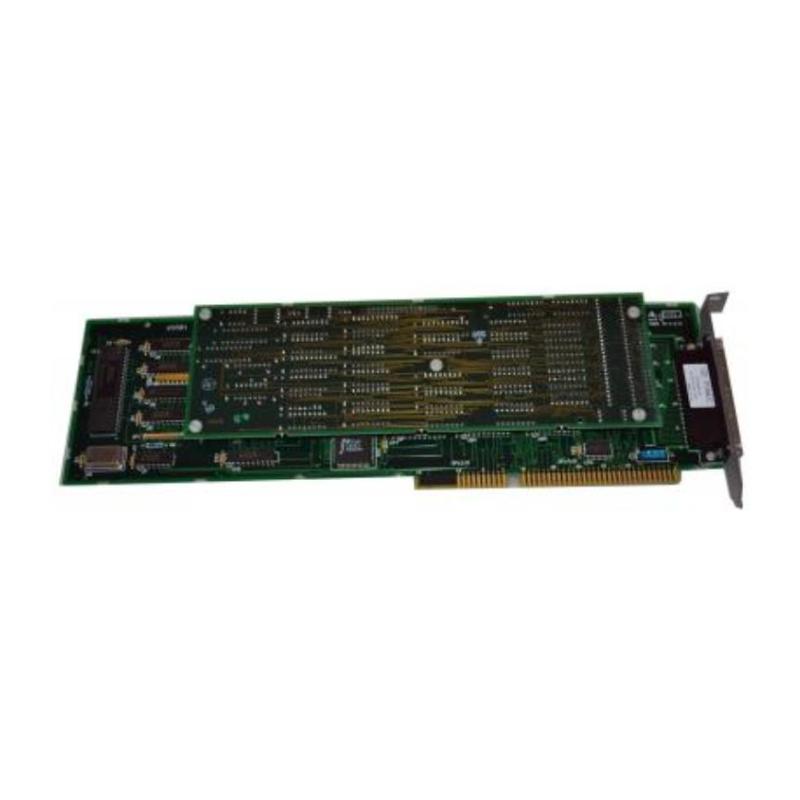

The GE IC640WMI610 is a Workstation Interface Board (WMI) designed for the GE Fanuc Series Six PLC system, enabling high-speed communication between an industrial workstation computer and the PLC backplane.
It is a legacy ISA-bus communication interface card used in older automation architectures where a dedicated workstation needed direct access to PLC data for real-time monitoring, programming, and control. Today, it is considered an obsolete but mission-critical spare part for maintaining legacy GE Series Six installations.
Technical Specifications
The IC640WMI610 is engineered as a high-speed parallel communication interface between workstation and PLC CPU.
| Parameter | Specification |
|---|---|
| Module Type | Workstation Interface Board |
| Series | GE Fanuc Series Six |
| Bus Type | ISA full-length slot card |
| Communication Type | Parallel interface (high-speed data exchange) |
| Connector Interface | 34-wire ribbon cable + 37-pin PLC connector |
| Power Supply | +5 VDC (from workstation backplane) |
| Power Consumption | Low (ISA slot powered) |
| Memory | On-board RAM (temporary data buffer only) |
| Software Dependency | Logicmaster Six / legacy DOS tools |
| Function | PLC-to-workstation real-time data transfer |
| Installation | Full-length ISA expansion slot |
| Operating Temperature | -40°C to +80°C |
| Humidity | 5–95% non-condensing |
The module does not contain non-volatile memory and relies entirely on host system software for operation and configuration.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~300 × 120 × 25 mm |
| Weight | ~0.65–0.80 kg |
Recommended Related Models
- GE IC640CIS100 – Series Six CPU interface module
- GE IC600CBL series – communication cables
- GE Series Six CPU rack modules
- GE Genius Bus interface modules
- GE IC697 (Series 90-70 upgrade path modules)
Popular Industrial Alternatives (Modern Replacement Paths)
Because IC640WMI610 is obsolete, modern replacements include:
- GE RX3i PACSystems Ethernet communication modules
- GE VersaMax Ethernet interface modules
- Siemens S7-1500 communication processors
- Allen-Bradley ControlLogix EtherNet/IP modules
- Industrial Ethernet gateways (Modbus TCP / OPC UA)
