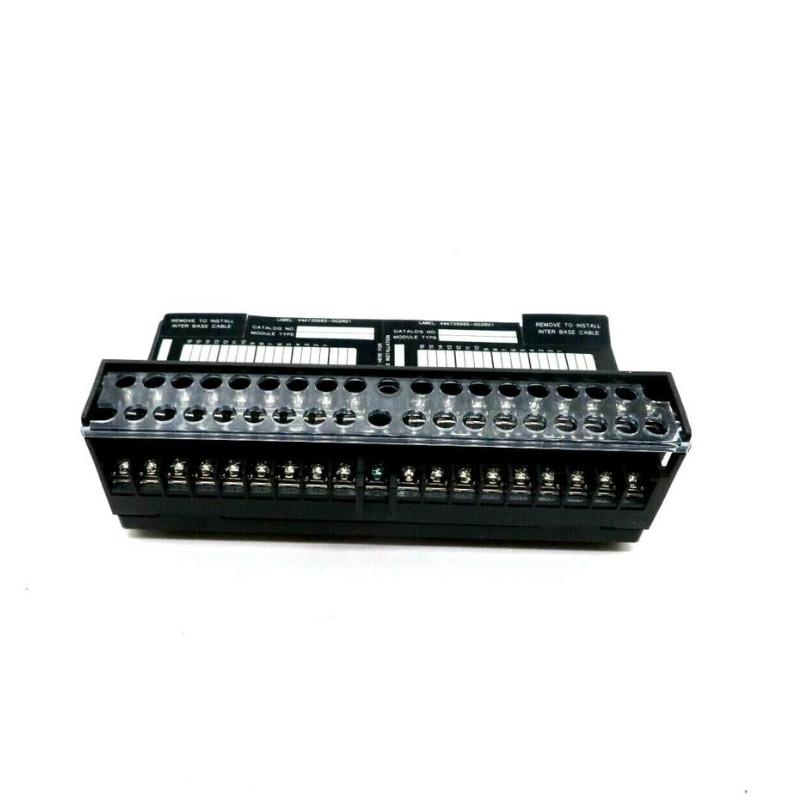

The GE IC200CHS001 is a VersaMax barrier-style I/O carrier module designed to provide a secure and structured interface between field wiring and GE VersaMax I/O modules. It serves as a mechanical and electrical mounting base, enabling efficient connection, distribution, and protection of I/O signals within industrial PLC systems.
This module is widely used in control panels where high-density wiring, safe termination, and modular I/O expansion are required. It is especially valuable in environments that demand fast maintenance, clear wiring organization, and reliable electrical isolation.
Technical Specifications
The IC200CHS001 is a passive carrier module that supports multiple I/O termination points with industrial-grade durability.
| Parameter | Specification |
|---|---|
| Module Type | Barrier-Style I/O Carrier |
| Series | GE VersaMax |
| Function | I/O module mounting and field wiring interface |
| Terminal Type | 36 barrier-style terminals |
| Max I/O Points | Up to 32 points |
| Mounting Method | DIN rail (7.5 × 35 mm) |
| Wire Size Range | AWG 22 to AWG 14 (solid/stranded copper) |
| Voltage Rating | Up to 264 VAC |
| Surge Withstand | Up to 300 VAC transients |
| Current Rating | 2 A per point, up to 8 A per power/ground |
| Terminal Torque | 0.37–0.5 lb-ft (0.5–0.7 N·m) |
| Environmental Rating | Industrial-grade, vibration-resistant when panel-mounted |
The carrier ensures stable and safe field wiring connections while maintaining compatibility with VersaMax I/O modules.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 110 × 140 × 70 mm |
| Weight | ~0.45–0.50 kg |
