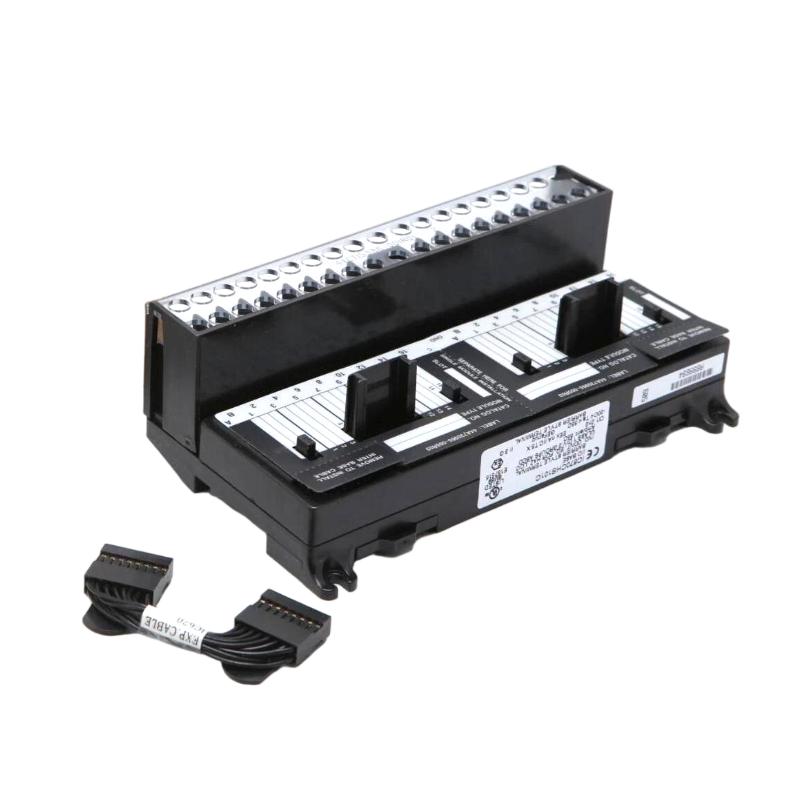

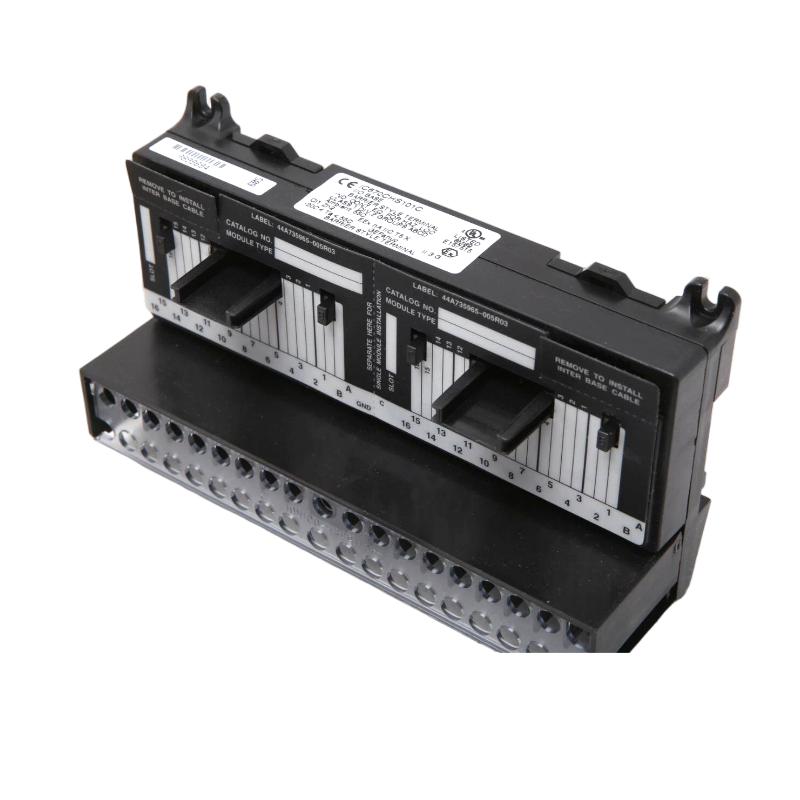

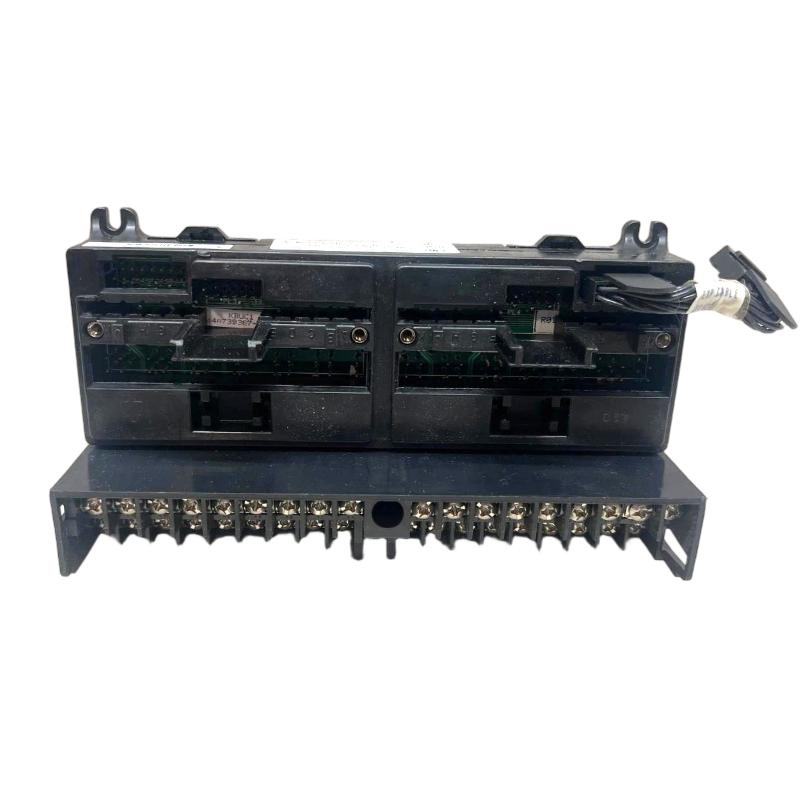

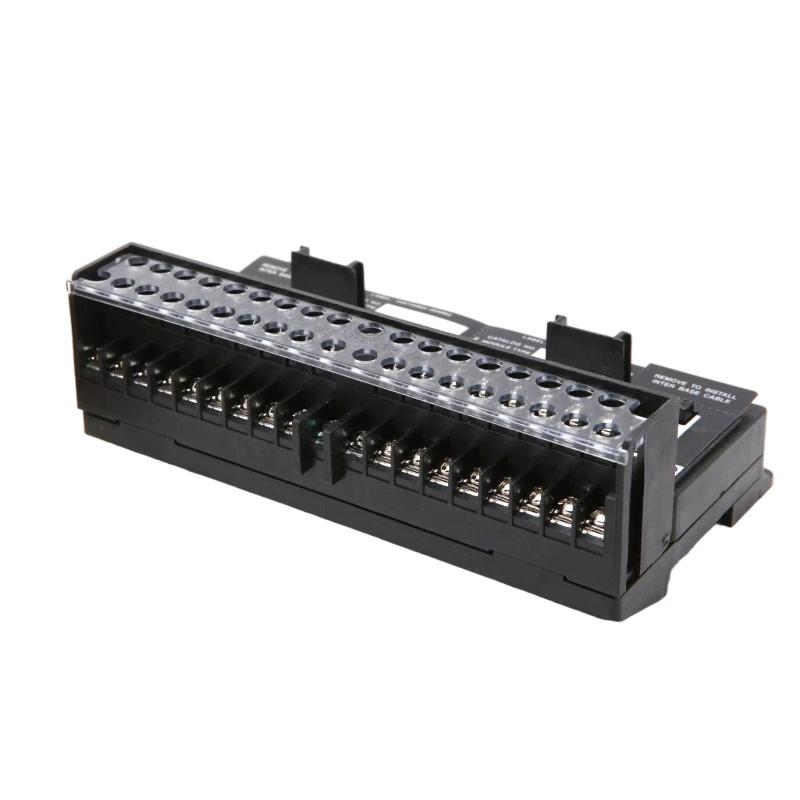

The GE IC670CHS101 is a Field Control I/O terminal base module designed for GE Fanuc Field Control distributed I/O systems. It provides a robust and structured interface between field wiring and IC670 I/O modules, enabling safe signal termination, easy maintenance, and modular system expansion.
This module is widely used in Genius Bus–based distributed control systems, where reliability, fast servicing, and clear wiring separation are essential. It allows technicians to disconnect or isolate individual field signals without affecting the entire control loop.
Technical Specifications
The IC670CHS101 functions as a passive I/O termination and carrier interface base.
| Parameter | Specification |
|---|---|
| Module Type | Field Control I/O Terminal Base |
| Series | GE Fanuc IC670 Field Control |
| Function | I/O module mounting + field wiring interface |
| Supported Modules | IC670 digital/analog I/O modules |
| Terminal Type | Barrier / interposing style terminals |
| Wiring Capacity | Single or dual field wire per terminal |
| Wire Size Range | AWG 22 to AWG 14 |
| Voltage Rating | Up to 250 VAC |
| Current Rating | Up to 2 A per point (typical system limit) |
| Isolation | Field-to-module isolation via I/O module |
| Connection Type | Backplane + terminal strip interface |
| Mounting Method | DIN rail / rack base mounting |
| Maintenance Feature | Individual circuit isolation capability |
This base supports structured field wiring and simplifies troubleshooting in distributed I/O architectures. It is designed to work as part of the IC670 Field Control system with Genius Bus communication.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~115 × 65 × 126 mm |
| Weight | ~0.30–0.50 kg |
Recommended Related Models
- IC670GBI002 – Genius Bus Interface Unit
- IC670CHS102 – Expansion terminal base
- IC670MDL digital input modules
- IC670MDL output modules
- IC670ALG analog I/O modules
Popular Industrial Alternatives
- Siemens ET200 terminal bases
- Allen-Bradley FLEX I/O terminal bases
- Schneider Modicon remote I/O bases
- GE VersaMax I/O carriers
- Yokogawa field I/O termination systems
