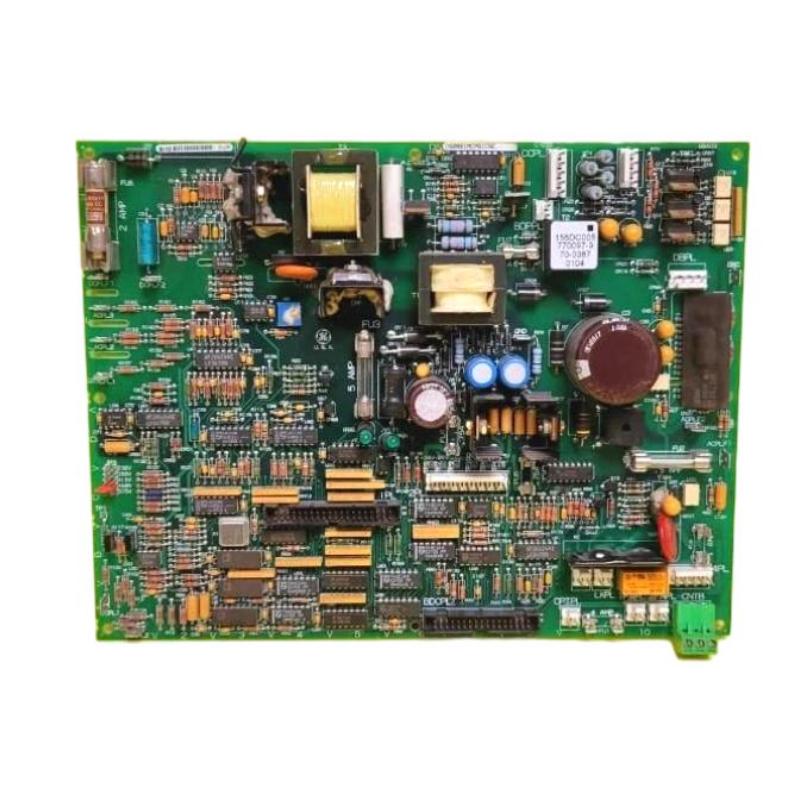

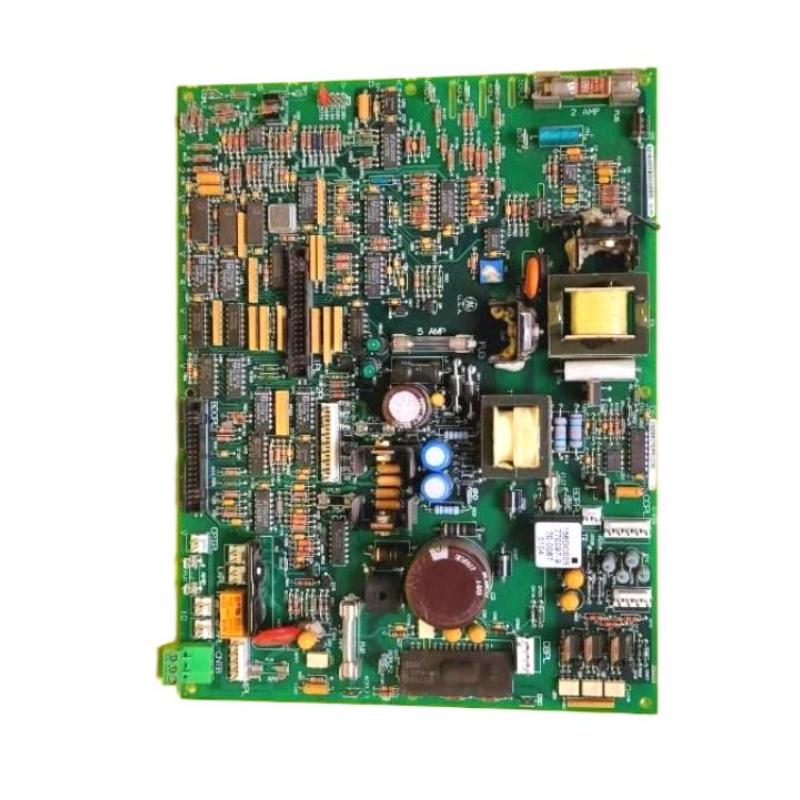

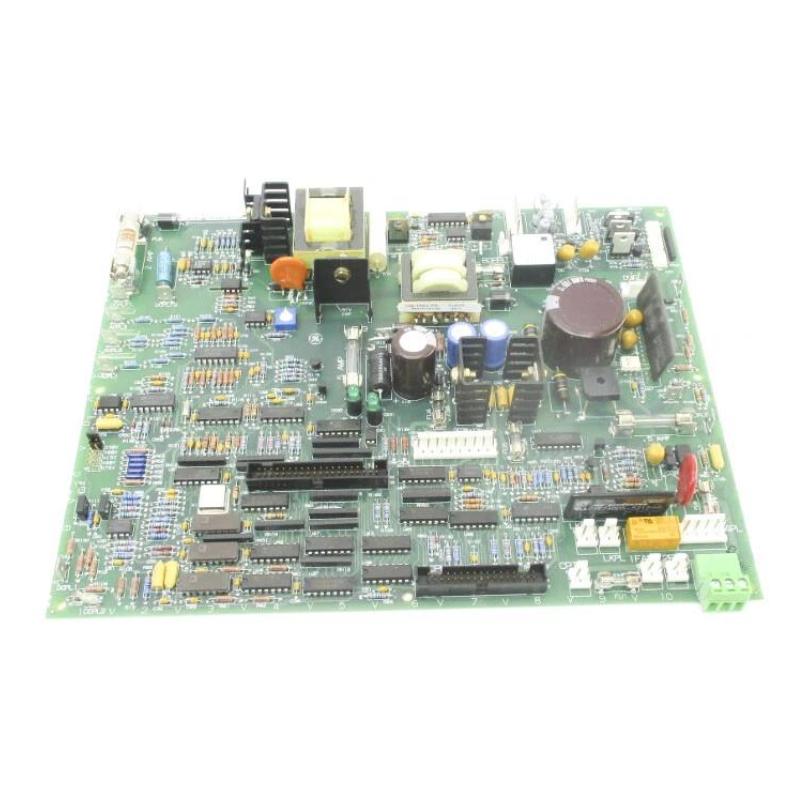

The GE DS200IMCPG1CGC is a specialized IGBT Power Supply Interface Board module developed for the GE Speedtronic Mark V turbine control system. It plays a critical role in power conditioning, distribution, and protection within turbine and drive control cabinets.
As an upgraded revision of the IMCP board family, this module is engineered to support stable power delivery to IGBT-based drive systems, ensuring reliable performance in demanding applications such as gas turbines, steam turbines, and industrial drive systems.
Technical Specifications
The DS200IMCPG1CGC is designed to handle complex power distribution and protection tasks in Mark V systems.
| Parameter | Specification |
|---|---|
| Module Type | IGBT Power Supply Interface Board |
| Series | GE Speedtronic Mark V (DS200 Series) |
| Function | Power supply interface & distribution |
| Power Input | Dual input: 120/240 VAC or 125 VDC |
| DC Bus | Common 125 VDC distribution bus |
| Circuit Protection | 30A thermal magnetic circuit breakers (per input) |
| Power Consumption | ~10 W (typical interface load) |
| PCB Coating | Standard industrial protective coating |
| Communication | Integrated with Mark V control architecture |
| Operating Temperature | 0°C to 60°C |
| Protection Features | Overvoltage, overcurrent, thermal protection |
| Diagnostics | Built-in monitoring for voltage and power integrity |
This board is specifically optimized for IGBT drive systems, ensuring stable switching power and system reliability under heavy industrial loads.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~300 × 120 × 30 mm |
| Weight | ~1.6–2.3 kg |
Recommended Related Models
- DS200IMCPG1CCA – standard power supply interface board
- DS200SDCCG1 – drive control board (core controller)
- DS200PCCAG2 – power connect board
- DS200TCQAG1 – RST overflow board
- GE Mark VI / Mark VIe – modern turbine control upgrade systems
