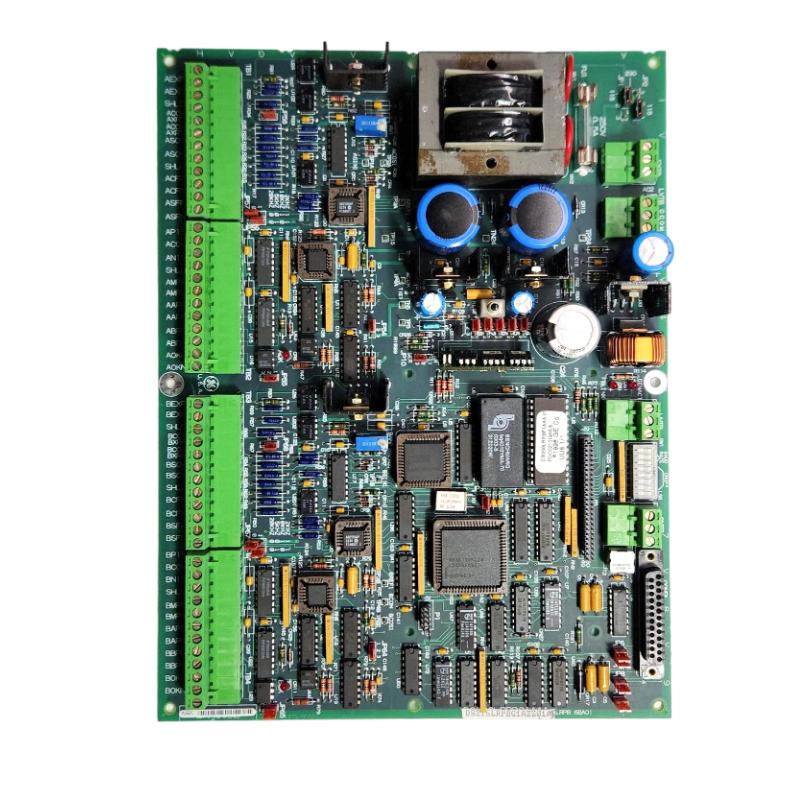

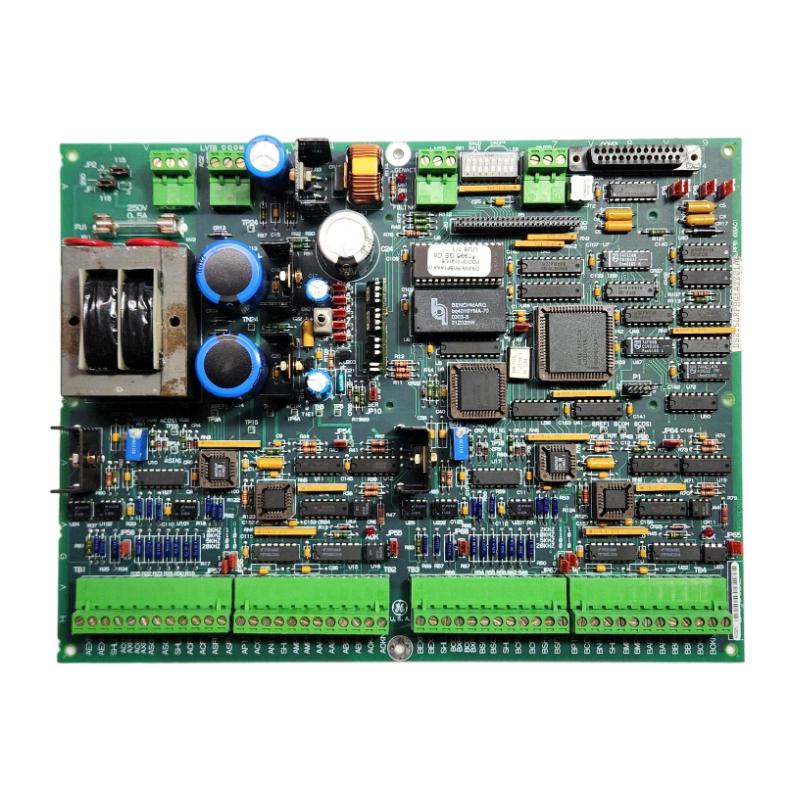

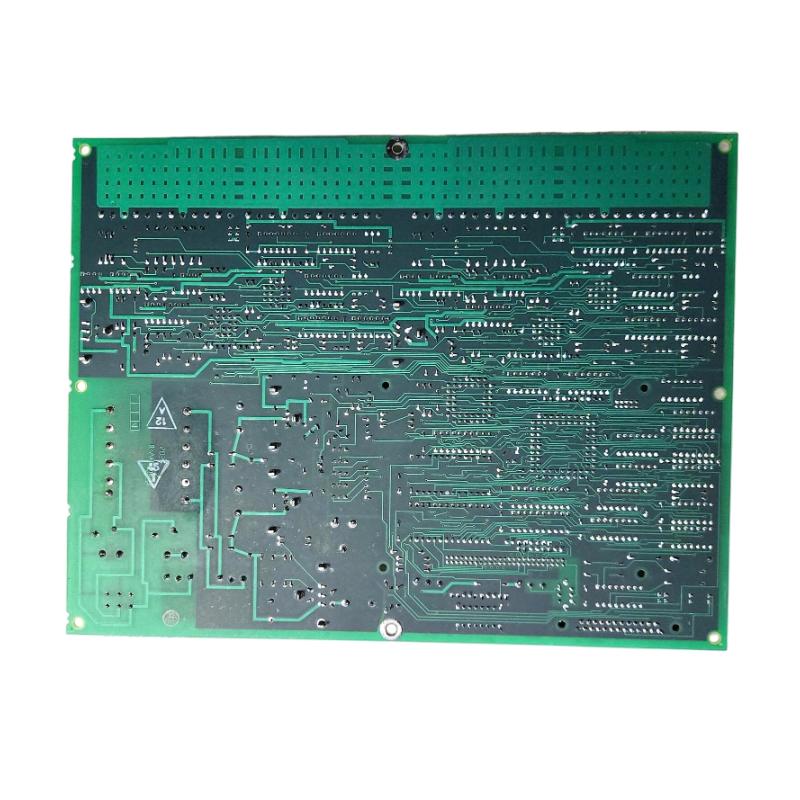

The GE DS215LRPBG1AZZ02A is a high-precision resolver interface board module developed for the GE Speedtronic Mark V turbine control system. It is specifically engineered to process resolver feedback signals, enabling accurate monitoring of rotational position and speed in turbine and drive applications.
As an enhanced evolution of earlier DS200 series boards, this module integrates advanced firmware and refined hardware architecture, making it a reliable solution for real-time motion feedback and control accuracy in critical industrial environments.
Technical Specifications
The DS215LRPBG1AZZ02A is designed to deliver stable signal conversion and precise motion feedback within Mark V systems.
| Parameter | Specification |
|---|---|
| Module Type | Resolver Interface Board Module |
| Series | GE Speedtronic Mark V (DS215 Series) |
| Function | Resolver signal processing (analog → digital conversion) |
| Input Type | Resolver sensor signals |
| Output | Digital position and speed data |
| Communication | Integrated via Mark V control backplane |
| PCB Coating | Standard industrial protective coating |
| Key Components | Transformer, capacitors, heat sinks, ICs, relays |
| Connection Type | Multiple terminal strips + backplane connector |
| Firmware | Integrated (enhanced revision AZZ02A) |
| Operating Temperature | -30°C to +65°C |
| System Architecture | Compatible with TMR and Simplex configurations |
The board converts analog resolver signals into digital data, enabling precise turbine control and real-time system feedback.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~300 × 120 × 35 mm |
| Weight | ~1.0 kg |
Recommended Related Models
- DS200LRPBG1 – earlier resolver interface board
- DS200SDCCG1 – drive control processor board
- DS200PCCAG2 – power connection board
- DS215UCVBG1 – VME controller board
- GE Mark VI / Mark VIe – modern turbine control upgrade platforms
