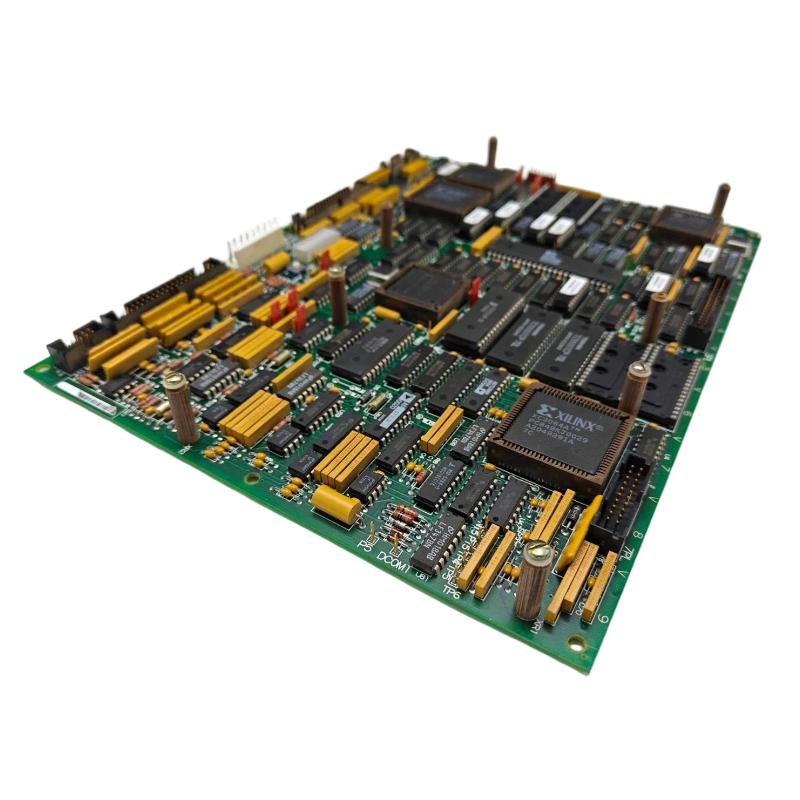

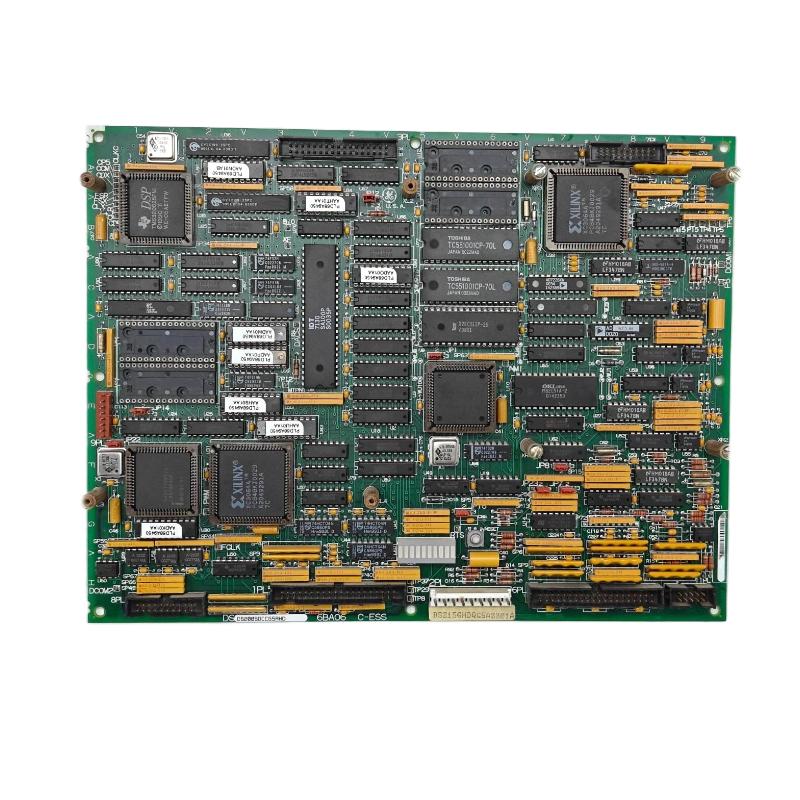

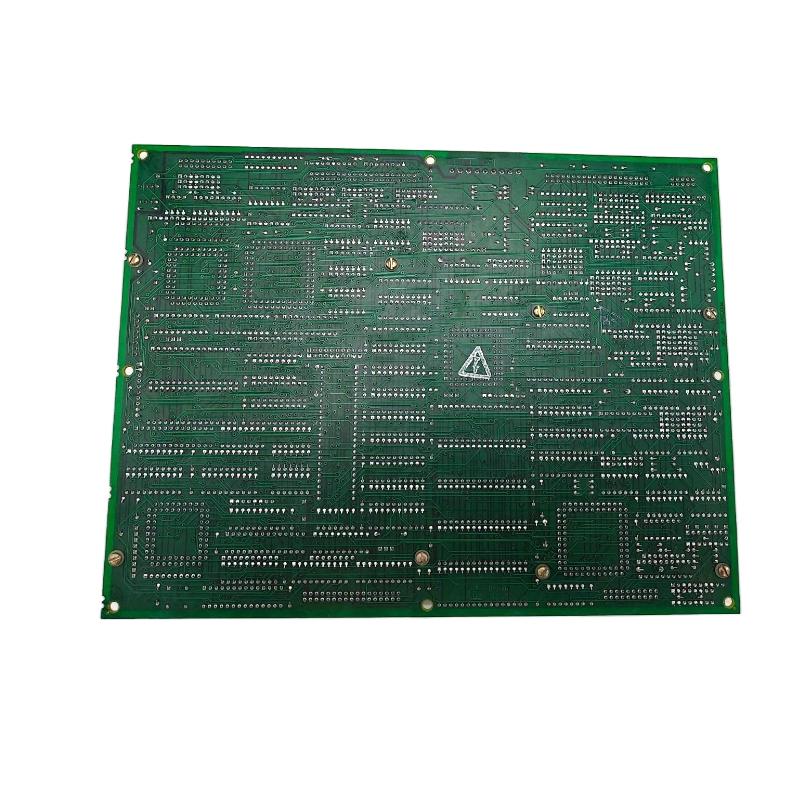

The GE DS215GHDQG5AZZ01 is a Mark V display and control interface board module engineered for GE Speedtronic turbine control systems. It serves as a visual data interface and signal processing board, enabling operators to monitor critical turbine parameters through integrated LED display systems and real-time diagnostics.
As part of the Mark V legacy control platform, this module plays a key role in operator feedback, system monitoring, and control panel interaction, ensuring stable and efficient turbine operation in demanding industrial environments.
Technical Specifications
The DS215GHDQG5AZZ01 combines display functionality with control processing capabilities in a modular PCB design.
| Parameter | Specification |
|---|---|
| Module Type | Display & Control Interface Board Module |
| Series | GE Speedtronic Mark V (DS215 Series) |
| Function | Data visualization + signal processing |
| Input Voltage | 24 VDC ±10% |
| Processor | Embedded processing architecture |
| Communication Protocols | Modbus RTU, Ethernet/IP |
| I/O Capacity | 16 digital inputs / 8 analog outputs |
| Memory | ~4 GB Flash / 2 GB RAM |
| Display Interface | LED display panels (multi-digit arrays) |
| Auxiliary Boards | Multiple daughter boards (DS200DSPA series) |
| Connectivity | Backplane + pin connectors + ARCNET compatibility |
| Protection | Integrated voltage limiting components |
| Operating Temperature | -20°C to +70°C |
| Environmental Protection | Industrial-grade (dust/vibration resistant) |
The board integrates LED display arrays and auxiliary modules to provide clear visualization of turbine operating data, supporting rapid operator decision-making.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (L × W × H) | 150 × 120 × 35 mm |
| Weight | ~0.8 kg |
Recommended Related Models
- DS215GHDQG4AZZ01 – lower-capacity display/control board
- DS215GHDQG6AZZ01 – higher-performance variant
- DS200SDCCG1 – drive control processor board
- DS200KLDAG1 – main motherboard assembly
- GE Mark VI / Mark VIe – modern turbine control upgrade systems
Popular GE & Industrial Models
- GE Speedtronic Mark V Series
- GE Mark VI / Mark VIe control systems
- Siemens SPPA-T3000 turbine control platform
- ABB turbine automation systems
- Woodward turbine control modules
