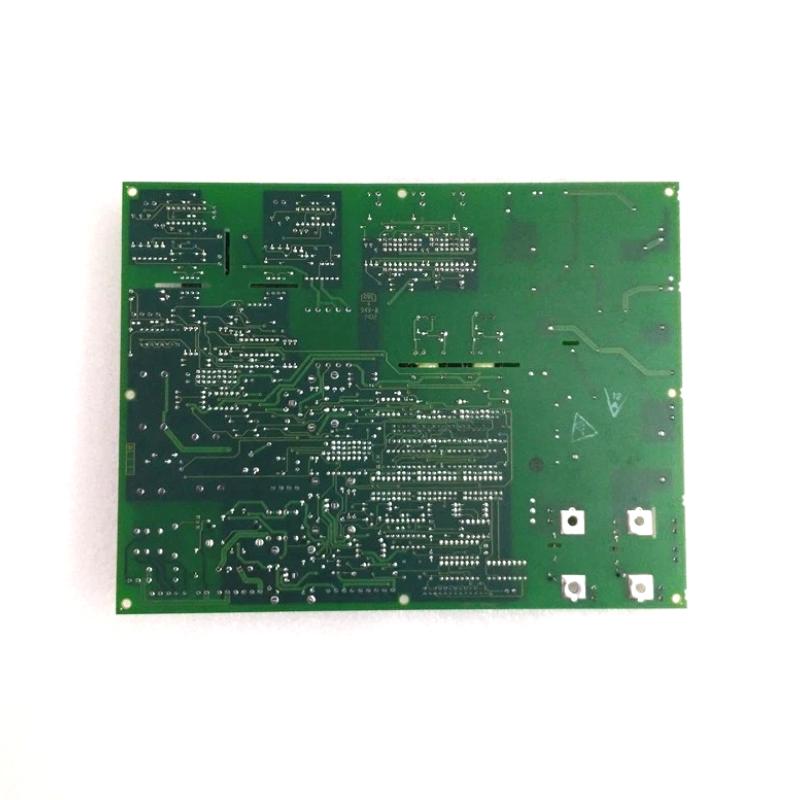

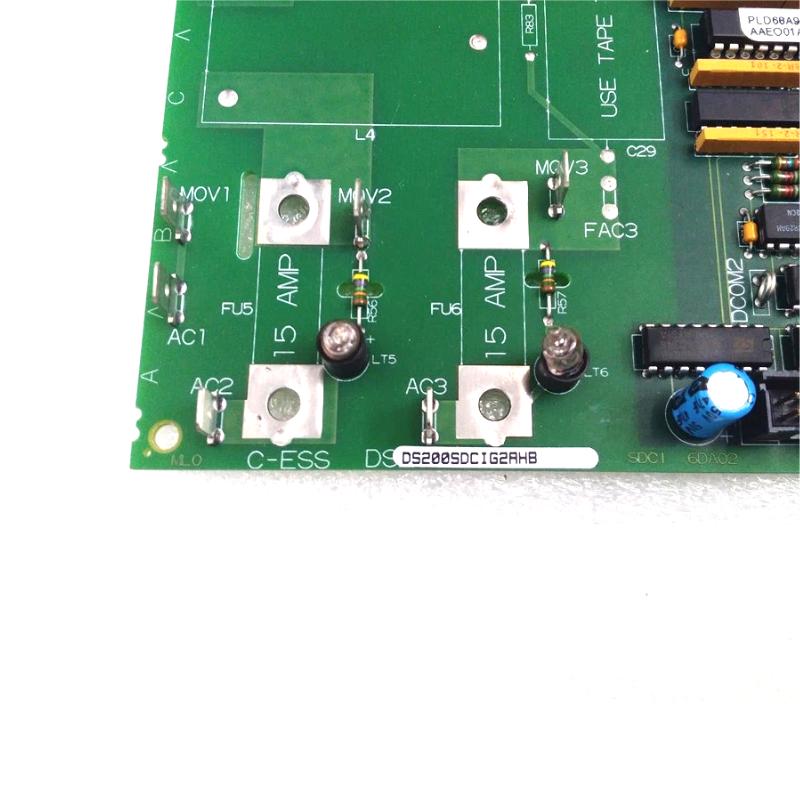

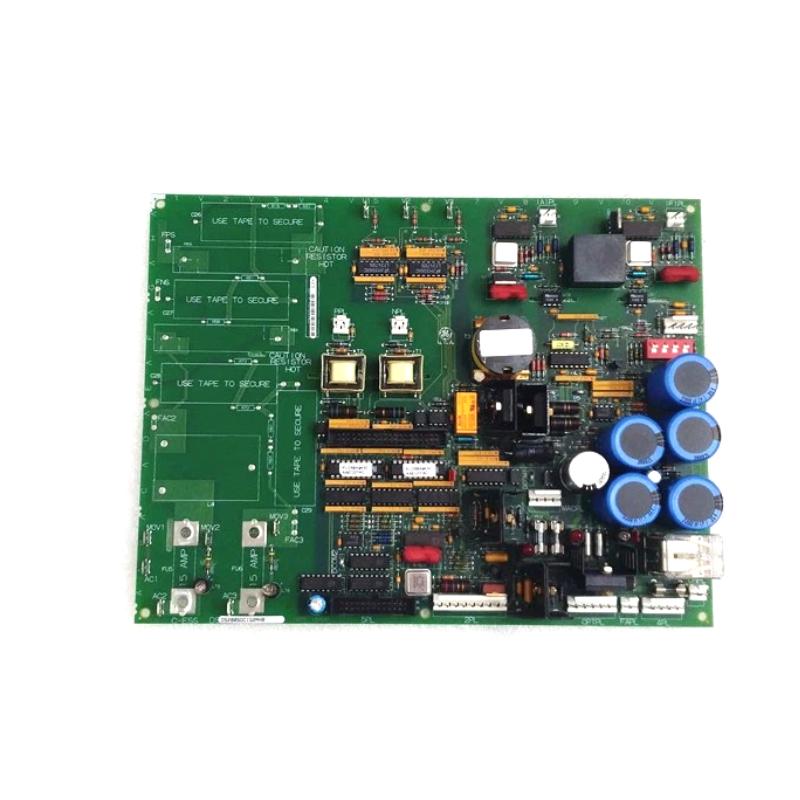

The GE DS200SDCIG2AHB is a DC Power Supply and Instrumentation Board module used in the GE Speedtronic Mark V turbine control system. It is designed to deliver regulated DC power distribution, drive interface support, and system-level instrumentation functions for industrial turbine and drive applications.
As part of the DS200 Mark V platform, this module plays a key role in ensuring stable power conditioning, control signal integrity, and reliable interface between DC2000 drive systems and turbine control architecture.
Technical Specifications
The DS200SDCIG2AHB integrates power supply circuits, monitoring functions, and control interfaces into a rugged industrial PCB design.
| Parameter | Specification |
|---|---|
| Module Type | DC Power Supply & Instrumentation Board |
| Series | GE Speedtronic Mark V (DS200 Series) |
| Function | Power supply + instrumentation + drive interface |
| System Interface | DC2000 drive systems |
| Input Circuits | +5 VDC (4A), ±15 VDC (0.4A), ±24 VDC, 115 VAC (0.4A) |
| Power Distribution | Internal regulated multi-rail power system |
| Protection | Industrial-grade surge and overload protection |
| Control Features | Jumper-configurable logic settings |
| Monitoring | Voltage/current system feedback |
| PCB Design | Conformal-coated industrial board |
| Mounting | Rack-mounted control cabinet installation |
| Operating Temperature | -40°C to +70°C |
| Revision Level | G2AHB (enhanced revision series) |
The board is widely used as an interface for DC motor drives and turbine auxiliary control systems, ensuring stable and safe power delivery under heavy industrial loads.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~160 × 160 × 120 mm |
| Weight | ~0.8–1.0 kg |
Recommended Related Models
- DS200SDCIG2AFB – earlier revision power supply board
- DS200IMCPG1CGC – IGBT power interface board
- DS200IMCPG1CCA – standard power interface module
- DS200SDCCG1 – Mark V drive control CPU board
- GE Mark VI / Mark VIe upgrade systems
