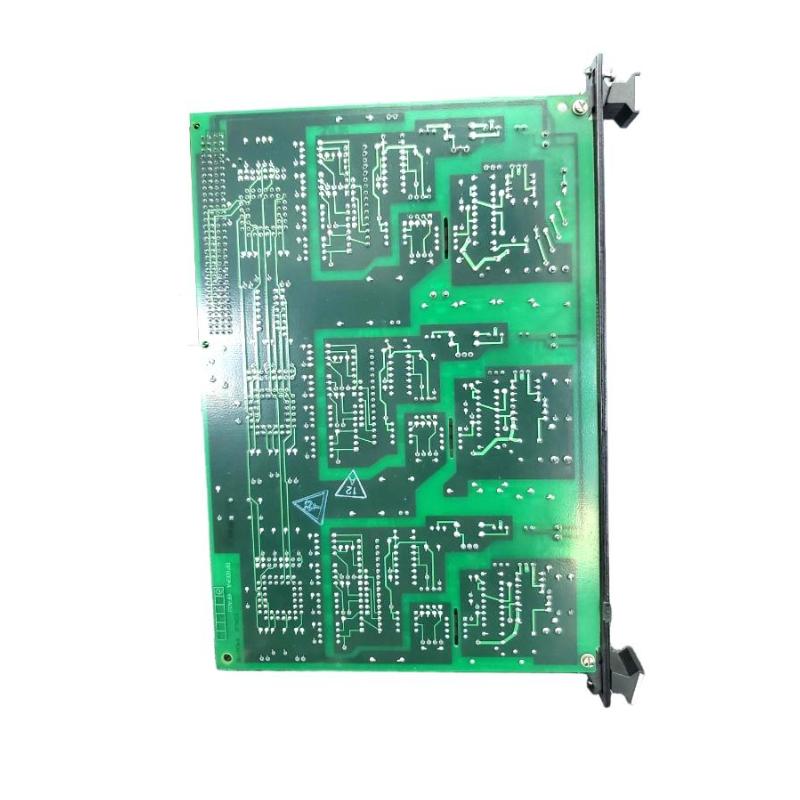

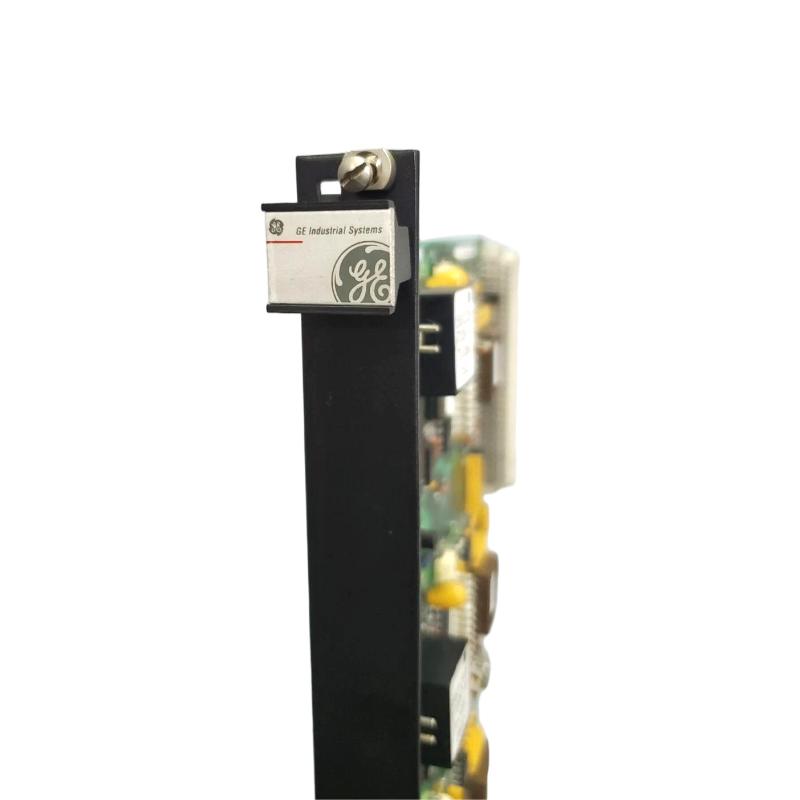

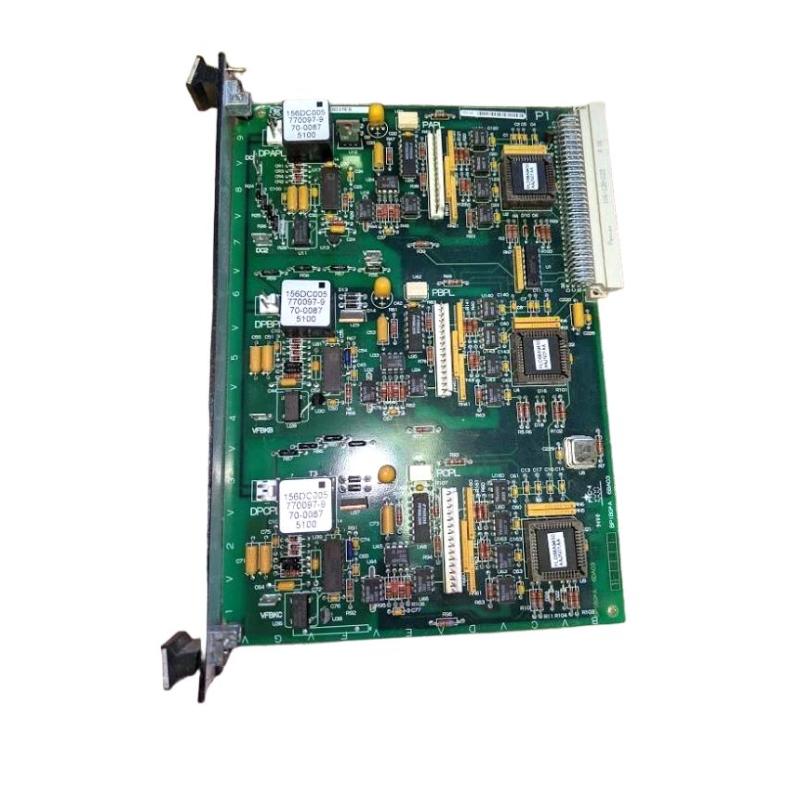

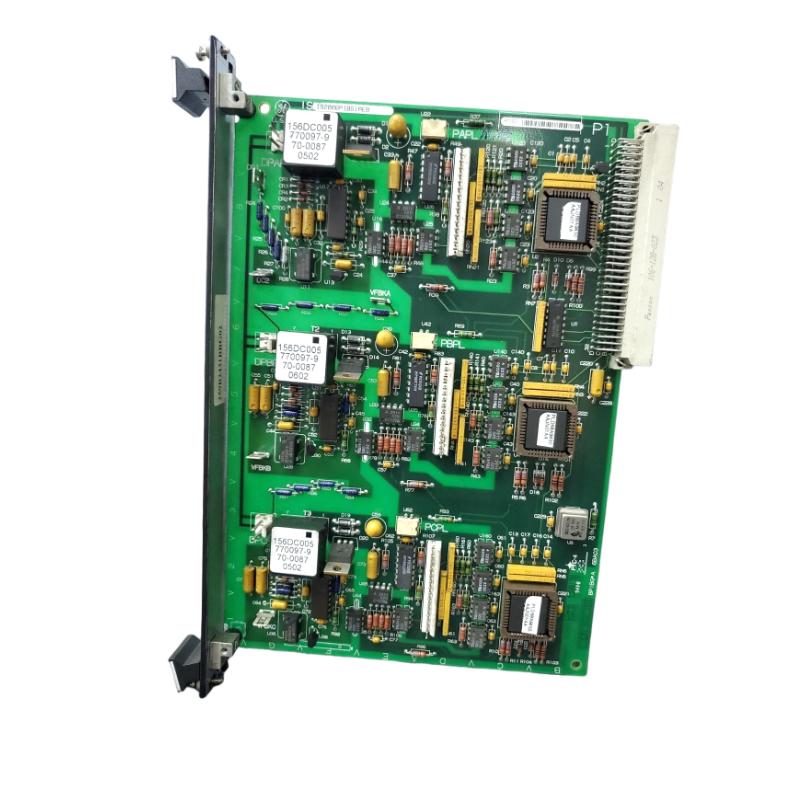

The GE IS200BPIBG1AEB is a Bridge Personality Interface Board (BPIB) module used in the GE Speedtronic Mark VI turbine control system. It serves as a critical interface between the control processor and IGBT power bridge assemblies, enabling precise coordination of gate drive signals, fault feedback, and phase-level power monitoring.
This module is essential in industrial gas turbines, steam turbines, and high-power AC drive systems, where synchronized switching and real-time fault handling are required for safe and stable operation.
Technical Specifications
The IS200BPIBG1AEB is designed for high-performance power electronics interfacing and turbine drive control.
| Parameter | Specification |
|---|---|
| Module Type | IGBT Drive Bridge Personality Interface Board |
| Series | GE Speedtronic Mark VI |
| Function | Control-to-power bridge interface + signal conditioning |
| Application | IGBT AC drive systems / turbine control |
| Input Interface | P1 rack connector (logic control signals) |
| Phase Connections | APL, BPL, CPL, AAPL, BAPL, CAPL connectors |
| Feedback Signals | DC link voltage + phase voltage monitoring |
| Gate Drive Support | Multiple gate driver / shunt feedback boards |
| Signal Processing | Opto-isolated digital control pathways |
| Internal Components | Transformers, ICs, resistor networks, transistors |
| Memory | 1024-bit EEPROM (board ID & revision data) |
| Fault Handling | Gate fault detection and reporting |
| Power Input | 17.7 VAC / 5 VDC (system-dependent) |
| Protection | Electrical isolation + industrial-grade shielding |
| Operating Temperature | -20°C to +60°C |
The board is designed to handle multi-phase IGBT control and fault monitoring with high electrical isolation and stability.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (L × W × H) | 160 × 160 × 120 mm |
| Weight | ~0.8–1.0 kg |
