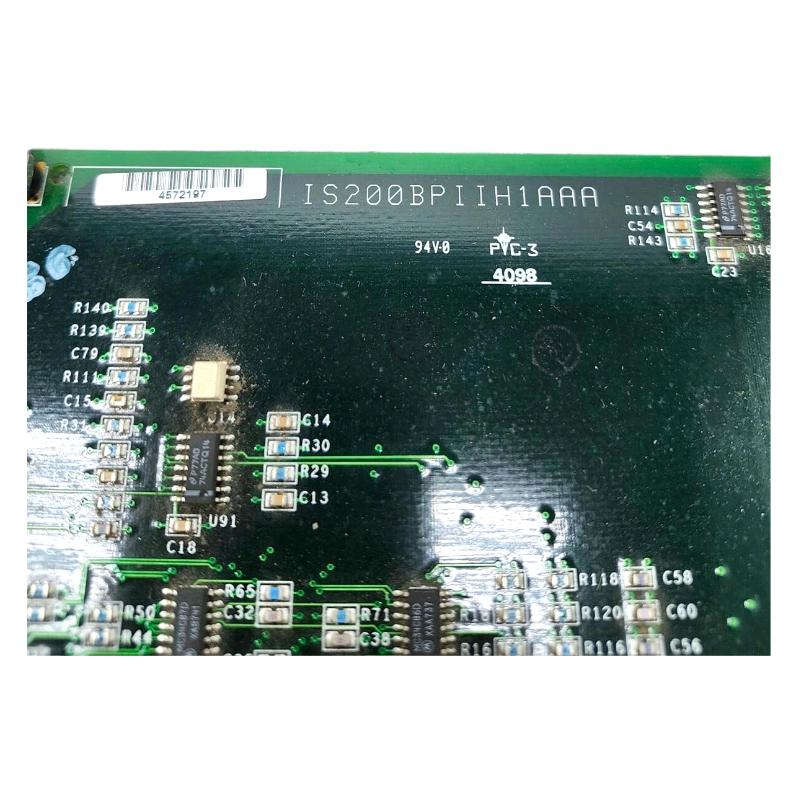

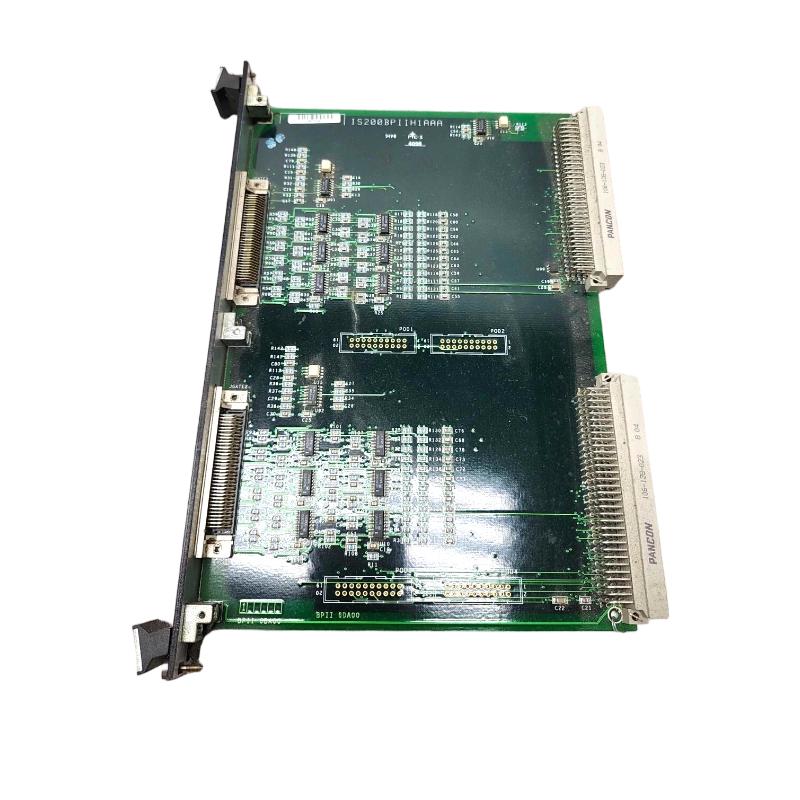

The GE IS200BPIIH1AAA is a Bridge Power Interface Board (BPIH) module used in the GE Speedtronic Mark VI turbine control system. It is designed for high-precision signal transmission between turbine control processors and Innovation Series power bridge systems, enabling reliable coordination of gate commands, status feedback, and power electronics control.
This module is widely used in gas turbine, steam turbine, and industrial drive applications, where stable communication between control logic and power switching hardware is essential for safe and efficient operation.
Technical Specifications
The IS200BPIIH1AAA is engineered for high-speed communication and robust industrial control integration.
| Parameter | Specification |
|---|---|
| Module Type | Bridge Power Interface Board |
| Series | GE Speedtronic Mark VI |
| Function | Gate command & status signal interface |
| System Role | Interface between GGXI boards and control system |
| Communication Protocol | RS-422 differential signaling |
| Signal Function | Gate firing commands + feedback status signals |
| Fault Detection | Cable disconnect and signal integrity monitoring |
| ID Storage | Serial PROM ID chip |
| Electrical Design | Pull-up resistors for signal validation |
| Backplane Connectors | 2 × 128-pin P1/P2 connectors |

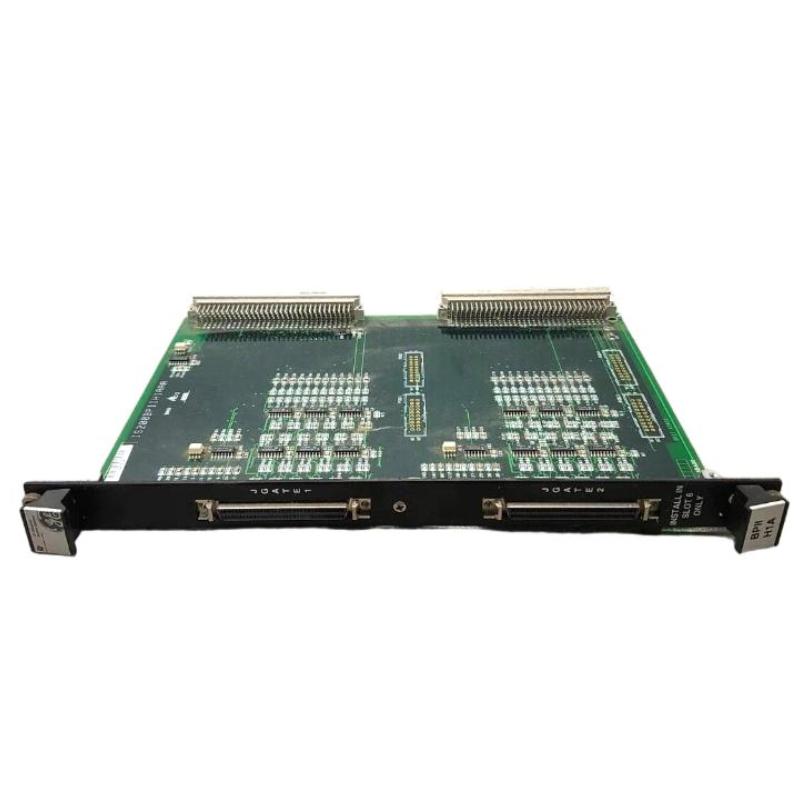

| Front Connectors | 2 × JGATE connectors (68-pin each) |
| Slot Requirement | Must be installed in designated rack slot (slot 6 warning applies) |
| Protection | Industrial conformal coating |
| Indicators | No LEDs or test points (design is minimalistic) |
The module is used to ensure safe, reliable, and fault-detected communication between bridge control subsystems and turbine drive electronics.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~160 × 160 × 120 mm |
| Weight | ~0.8–1.0 kg |
