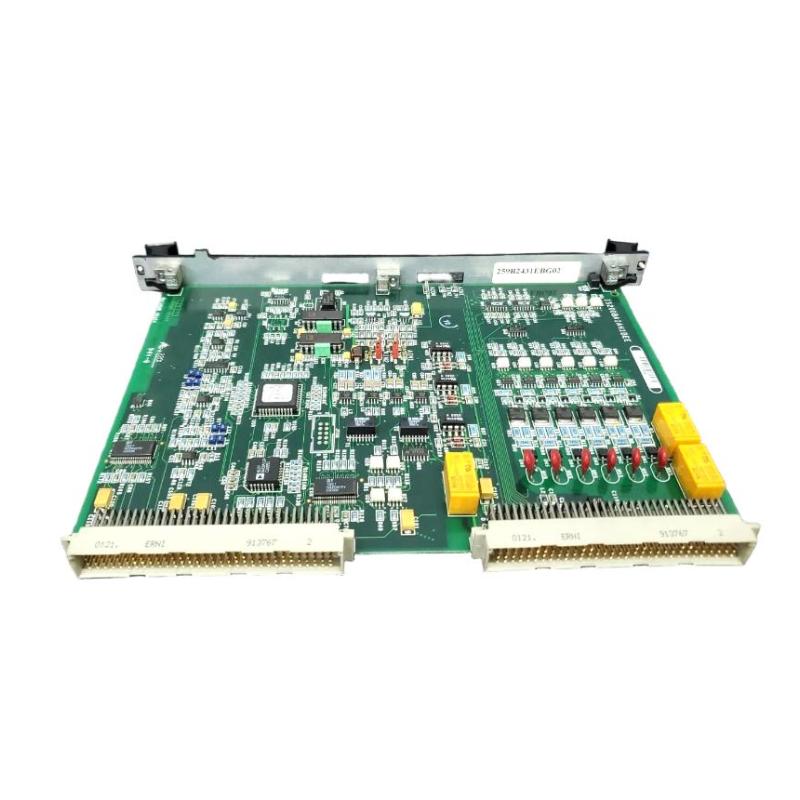

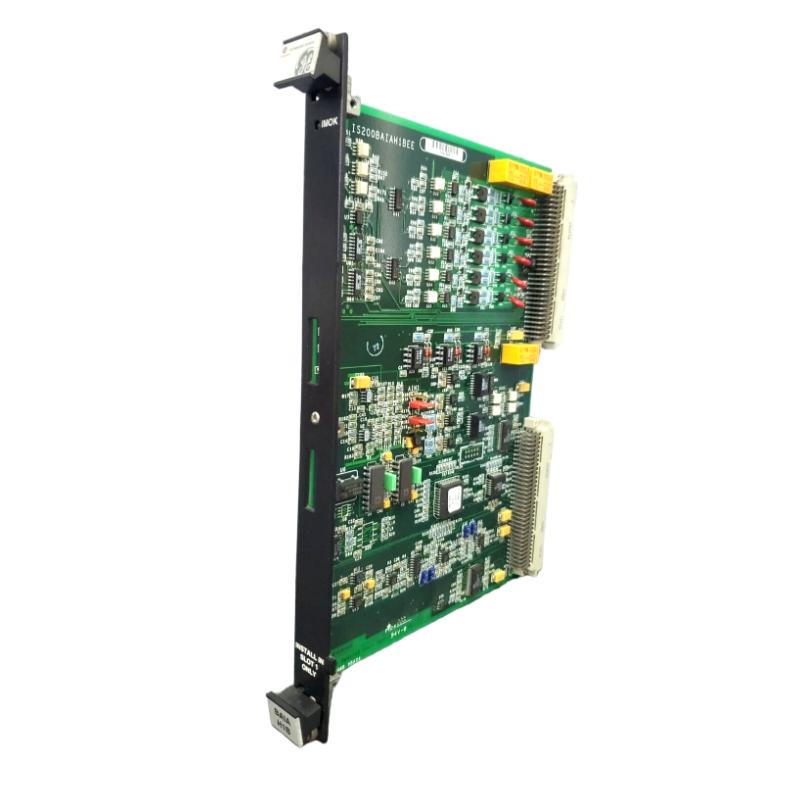

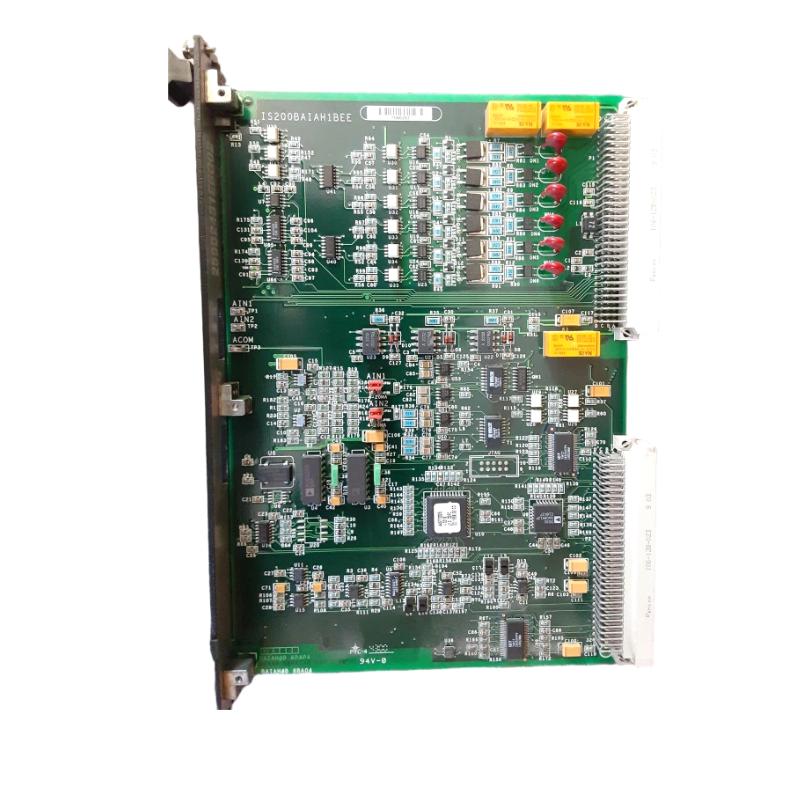

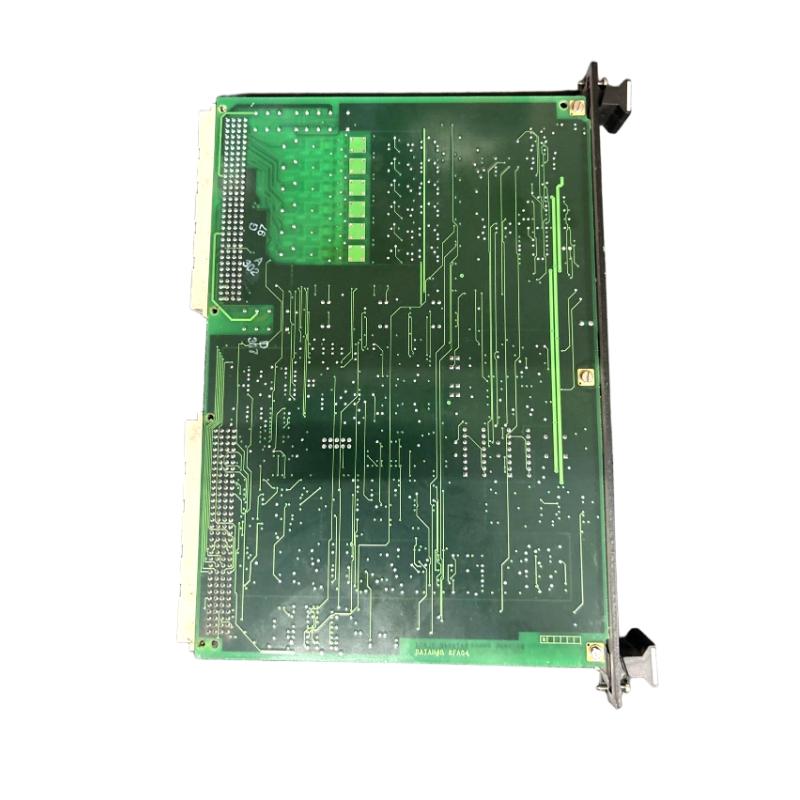

The GE IS200BAIAH1BEE is a Bridge Application Interface (BAIA) module used in the GE Speedtronic Mark VI turbine control system. It is designed to serve as a communication and signal interface between turbine control processors and excitation or drive systems, ensuring accurate data exchange and stable system coordination.
This module is widely applied in gas, steam, and wind turbine control environments, where it manages signal routing, interface conversion, and system-level coordination between control logic and external drive/excitation hardware.
It is part of GE’s Innovation Series architecture within the Mark VI platform, acting as a critical interface layer rather than a primary control processor.
Technical Specifications
The IS200BAIAH1BEE is engineered for high-density signal interfacing and industrial reliability.
| Parameter | Specification |
|---|---|
| Module Type | Bridge Application Interface Board |
| Series | GE Speedtronic Mark VI |
| Function | Control-to-excitation / drive interface |
| System Role | Signal conversion and communication interface |
| Input Interface | DSPX board digital signals |
| Communication | RS-232C serial interface |
| Output Function | Signal routing to drive/excitation system |
| Memory | Factory-preloaded EEPROM (non-reprogrammable) |
| Hardware Components | Relays, transformers, ICs, transistors, diodes |
| Jumpers | Multiple configuration jumpers (JP-type settings) |
| LED Indicator | IMOK status LED |
| Slot Requirement | Must be installed in Slot 1 (critical requirement) |
| Backplane Interface | Rack-mounted control system backplane |
| Protection | Industrial-grade shielding and conformal coating |
This module is designed for secure and stable signal exchange between turbine control and external systems, ensuring safe coordination of excitation and drive functions.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~160 × 160 × 120 mm |
| Weight | ~0.8–1.2 kg |
Recommended Related Models
- IS200BAIAH1B – earlier revision BAIA interface board
- IS200BPIAG1AEB – bridge personality interface module
- IS200BICLH1BBA – bridge interface controller board
- IS200DSPXH1 – Mark VI control processor board
- GE Mark VIe upgrade control systems
