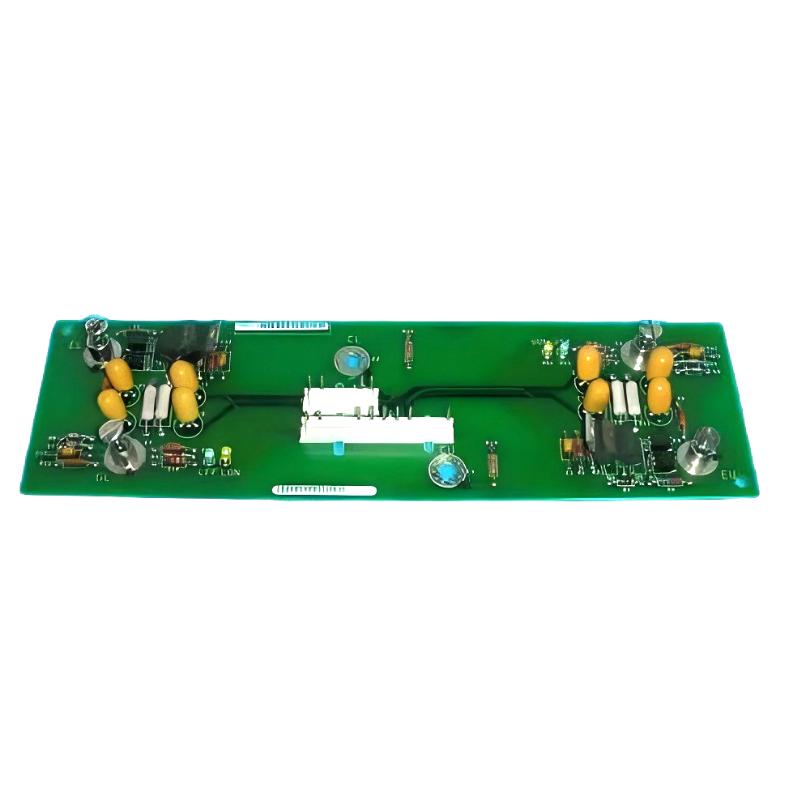

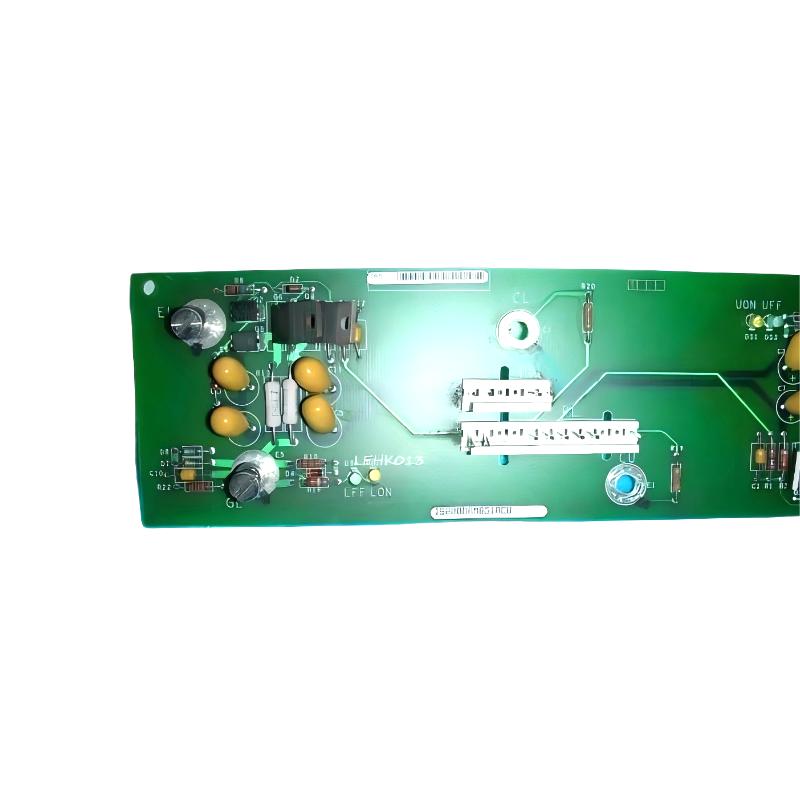

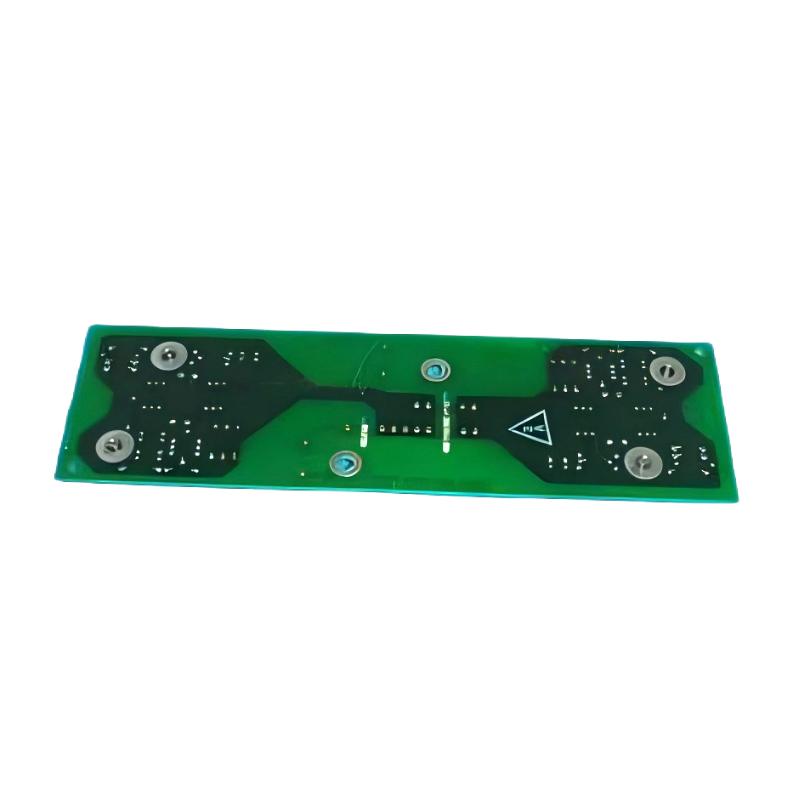

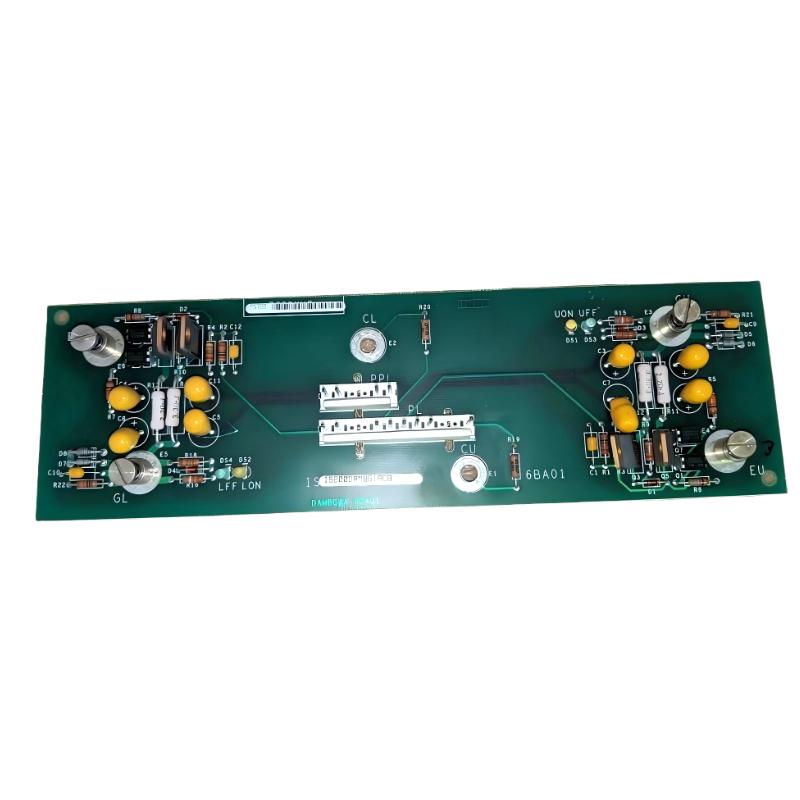

The GE IS200DAMBG1ACB is a Gate Drive Amplifier (DAMB) board used in the GE Speedtronic Mark VI turbine control system. It is responsible for amplifying low-level control signals into high-current gate drive pulses used to switch IGBT or IGCT power devices in industrial drive and turbine applications.
This module is a key part of the power electronics interface chain, ensuring that switching commands from the control system are accurately translated into fast, isolated, and reliable gate signals for the power bridge.
Technical Specifications
The IS200DAMBG1ACB is designed for high-speed switching control and industrial-grade reliability.
| Parameter | Specification |
|---|---|
| Module Type | Gate Drive Amplifier Board (DAMB) |
| Series | GE Speedtronic Mark VI |
| Function | Gate signal amplification and drive conditioning |
| Application | IGBT / IGCT power bridge systems |
| Input Signals | Low-level control signals from interface boards |
| Output Signals | High-current gate drive pulses |
| Isolation | High-voltage electrical isolation between control and power |
| Switching Speed | High-frequency pulse operation |
| Components | Driver ICs, transformers, opto-isolators, transistors |
| Protection | Fault detection and signal integrity protection |
| PCB Design | Industrial-grade, conformal-coated multilayer board |
| Operating Temperature | -20°C to +60°C |
| Mounting | Installed near power bridge assembly |
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~160 × 100 × 40 mm |
| Weight | ~0.5–0.8 kg |
Key Role in System Architecture
The IS200DAMBG1ACB functions as a critical link between control logic and power switching devices:
- Receives low-level gate commands from control/interface boards
- Amplifies signals into high-current gate pulses
- Ensures timing accuracy for IGBT/IGCT switching
- Provides electrical isolation between control and high-power sections
- Supports safe operation of turbine and drive systems
