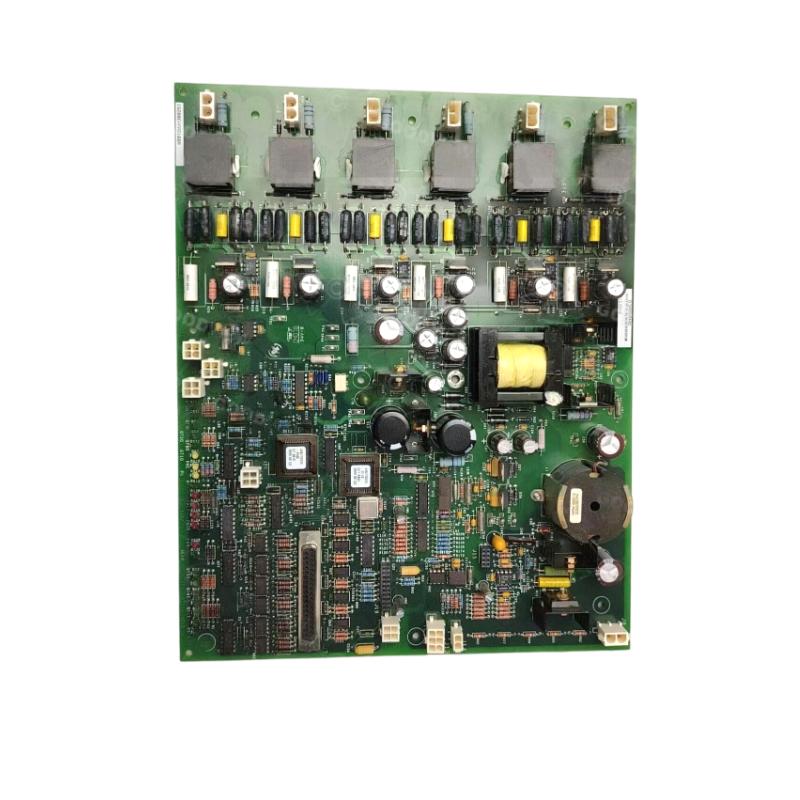

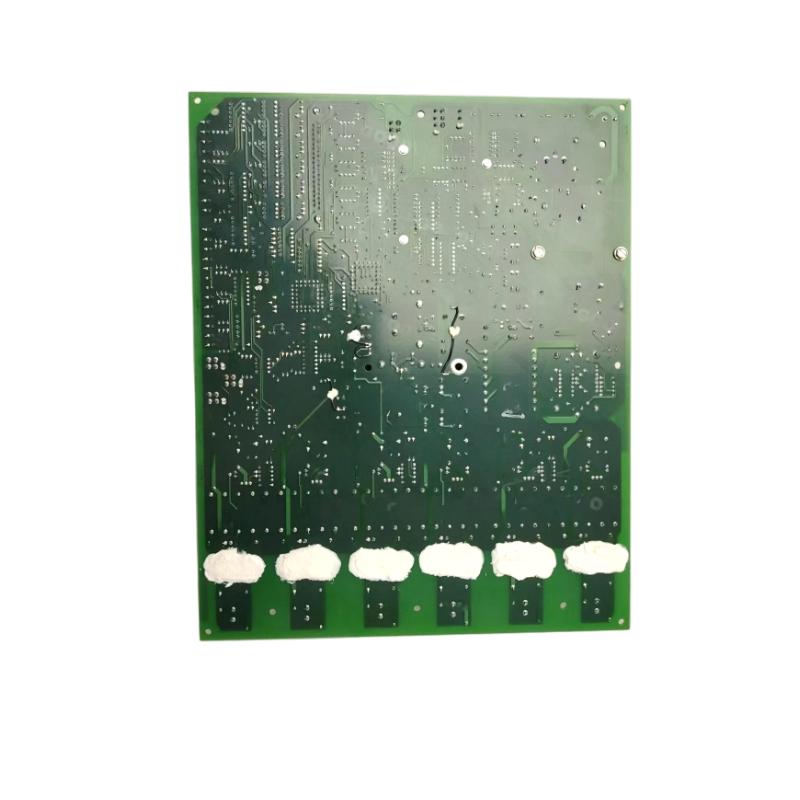

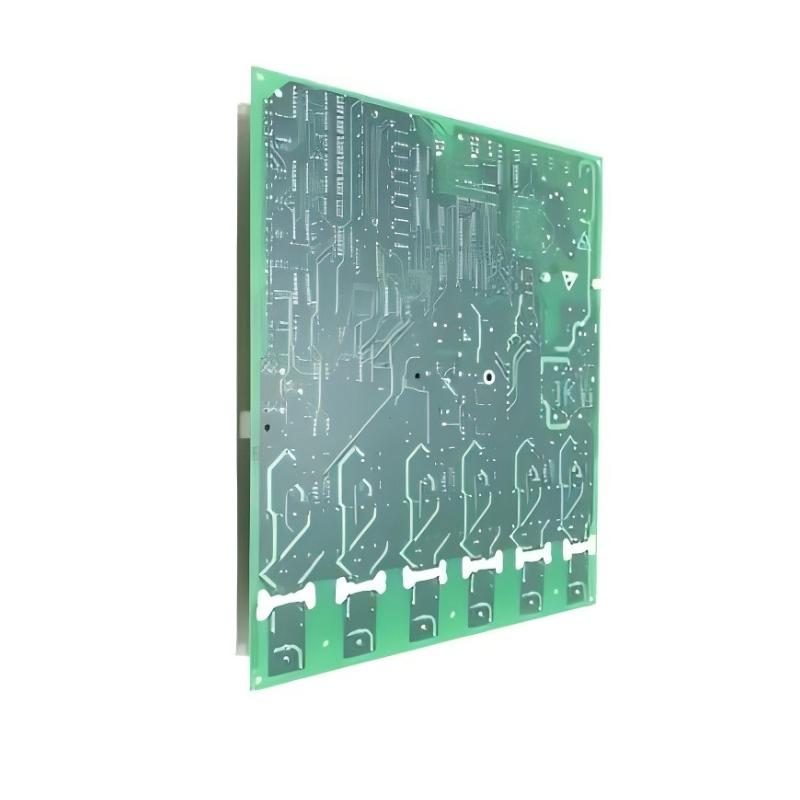

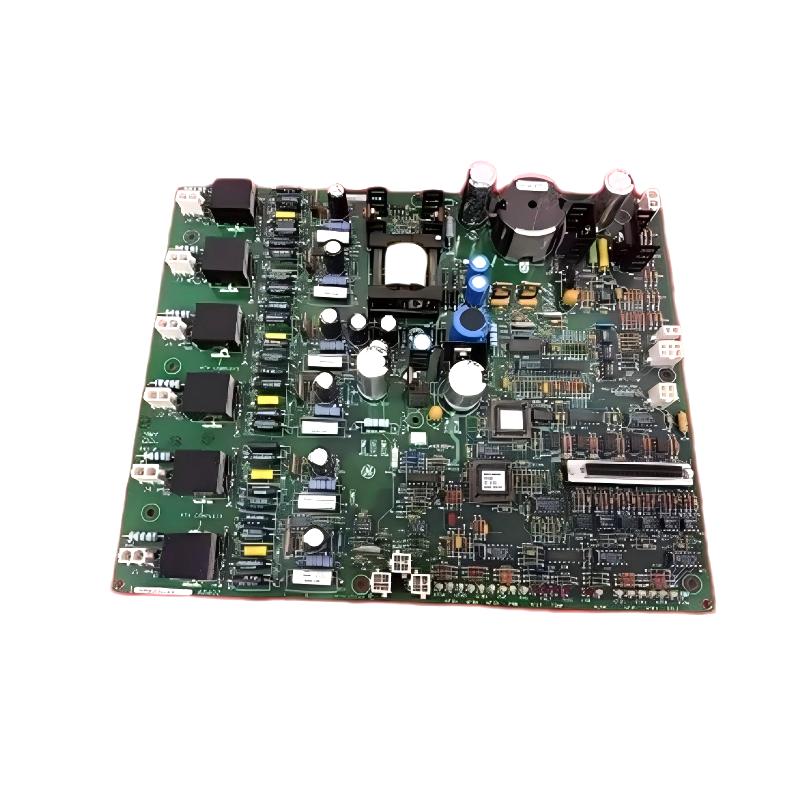

GE IS200EHPAG1ABA-5 GE IS200EHPAG1ABA-2 GE IS200EHPAG1ABA-3 GE IS200EHPAG1ABA-4

The GE IS200EHPAG1ABA is a high-performance Exciter Gate Pulse Amplifier Board used in GE EX2100 excitation control systems. It is designed to amplify and distribute precise gate firing pulses to power conversion components such as SCRs (Silicon Controlled Rectifiers), ensuring accurate excitation control for turbine generators.

In power generation environments, this module is essential for maintaining stable voltage regulation, reliable power bridge operation, and synchronized excitation performance. Its robust engineering makes it suitable for continuous operation in demanding industrial conditions where precision timing and signal integrity are critical.

Technical Specifications

Parameter	Details
Manufacturer	General Electric (GE)
Model Number	IS200EHPAG1ABA
Module Type	Exciter Gate Pulse Amplifier Board
System Series	EX2100 Excitation Control System
Function	Gate pulse amplification for SCR firing control
Controlled Devices	6 SCR power devices
Power Supply	125 VDC nominal (system supplied)
Feedback Monitoring	SCR current, temperature, airflow
Protection Features	Overtemperature alarm/trip protection
Alarm Threshold	~76°C alarm, ~87°C trip (turn0search10)
Operating Temperature	0°C to 55°C (turn0search10)
Dimensions	Approx. 160 × 160 × 120 mm (turn0search10)
Weight	~0.5 kg (turn0search10)
Installation	Rack-mounted power conversion cabinet
Cooling	Integrated airflow monitoring system

Recommended Related Models

For full EX2100 excitation system operation, the following modules are commonly paired:

IS200ESEL Exciter Selector Board
IS200EPDM Power Distribution Module
IS200EXAMG Exciter Attenuation Module
IS200EGPA / EHPAG variants

Popular GE Excitation Control Modules

Widely used components in GE turbine excitation systems include:

IS200EHPAG series gate pulse amplifiers
IS200EXAMG signal attenuation modules
IS200EGDM ground detection modules
IS200DSPX control processors
EX2100 excitation system boards

Applications

The IS200EHPAG1ABA is used in high-reliability power and industrial systems:

Gas turbine excitation systems
Steam turbine generator control
Combined-cycle power plants
Industrial power conversion systems
Grid voltage regulation and stability systems

Advantages

This module provides strong performance advantages in excitation control architecture:

Precise SCR gate pulse amplification for stable power conversion
Integrated monitoring of temperature, airflow, and conduction current
Enhanced protection against overheating and electrical faults
Reliable operation in continuous industrial environments
Tight integration with GE EX2100 excitation system architecture
Improves overall generator stability and voltage accuracy

Technical FAQs

What is the main function of IS200EHPAG1ABA?
It amplifies gate pulses used to control SCR devices in excitation systems.
Which system is it used in?
GE EX2100 excitation control system.
What devices does it control?
SCRs in the power conversion bridge.
Is it a standalone controller?
No, it is part of the excitation power conversion subsystem.
What is its operating temperature range?
0°C to 55°C (turn0search10)
What protection features does it include?
Overtemperature alarm and trip protection.
Does it monitor system conditions?
Yes, it monitors SCR current, airflow, and temperature.
What is its weight?
Approximately 0.5 kg (turn0search10)
Where is it installed?
In the power conversion cabinet of turbine control systems.
What industries use it most?
Power generation, oil & gas, and heavy industrial automation.
