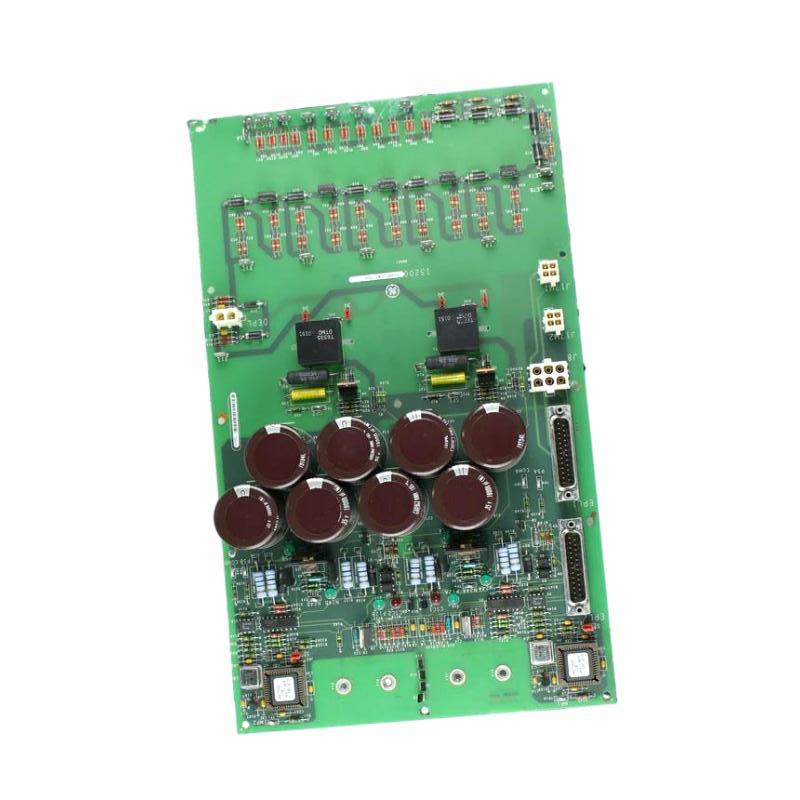

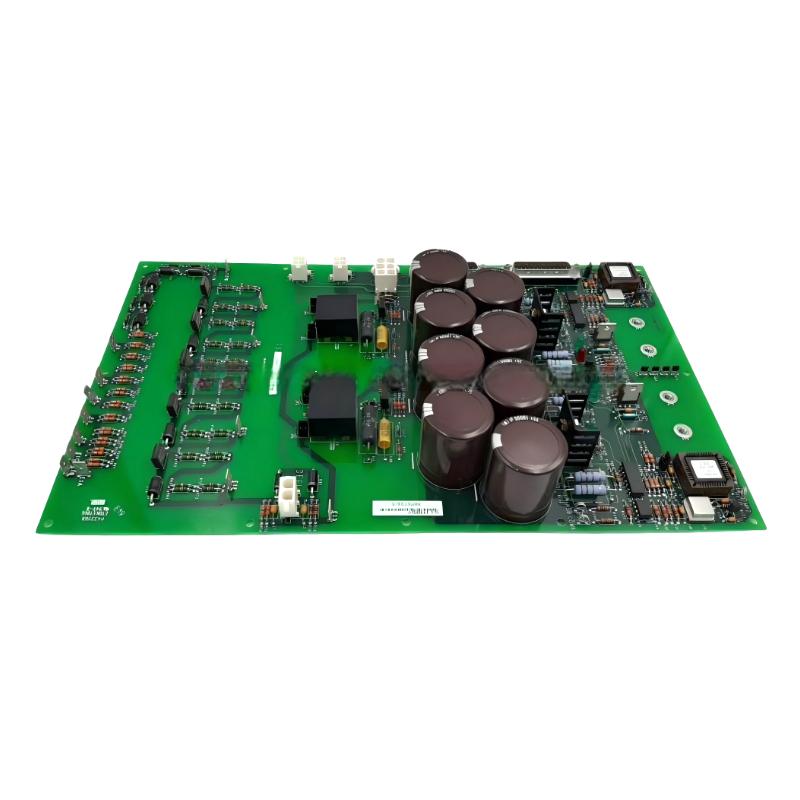

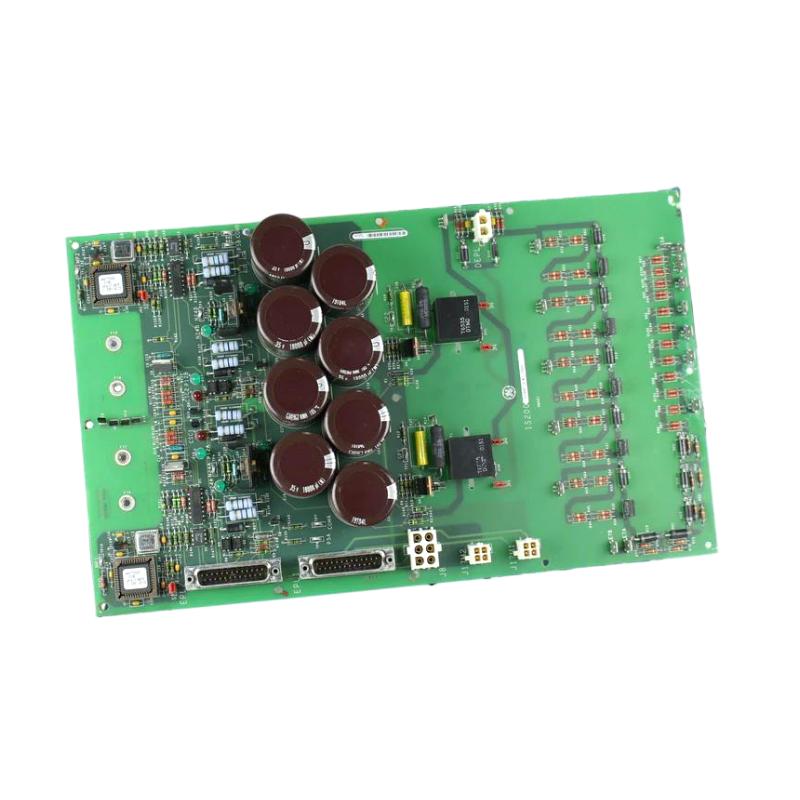

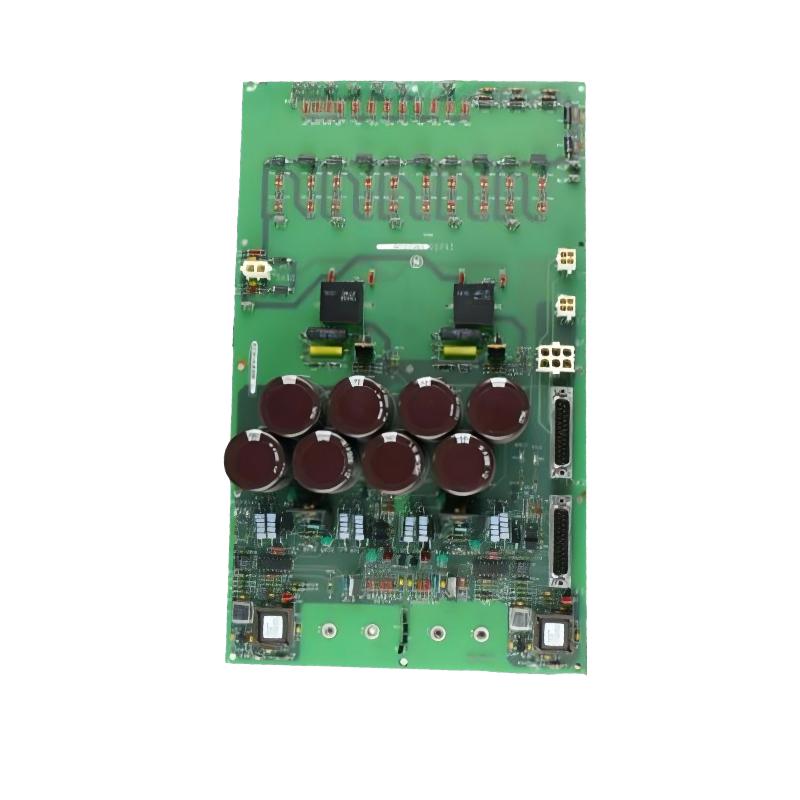

The GE IS200EDEXG1AFA is a high-reliability Exciter De-Excitation Module designed for GE EX2100 excitation control systems. It is responsible for safely dissipating stored magnetic energy in a generator field during shutdown or fault conditions, ensuring protection of turbine-generator equipment and maintaining system stability.

In industrial power plants, this module plays a critical role in rapid de-excitation control, enabling controlled SCR firing paths and ensuring that residual field energy is discharged safely and efficiently. Its robust design supports continuous operation in demanding environments such as gas turbine, steam turbine, and combined-cycle power systems.

Technical Specifications

Parameter	Details
Manufacturer	General Electric (GE)
Model Number	IS200EDEXG1AFA
Module Type	Exciter De-Excitation Board
System Series	EX2100 Excitation Control System
Function	SCR de-excitation + field energy discharge control
Control Method	SCR-based controlled discharge circuit
Input Power	24 VDC (from ESPM module)
Internal Conversion	Up to 125 VDC operating rail
Feedback System	Conduction sensing + field current monitoring
Protection Features	Overvoltage control, fault-triggered discharge
Operating Temperature	-40°C to +70°C
Dimensions	100 mm × 80 mm × 20 mm
Weight	~0.5 kg
Communication	System-level excitation control interface
Installation Type	EX2100 excitation cabinet rack module

Recommended Related Models

For complete excitation system operation, the following GE modules are typically paired with IS200EDEXG1AFA:

IS200EXAMG Exciter Attenuation Module
IS200EGDM Ground Detection Module
IS200EPDM Power Distribution Module
IS200ESEL Excitation Selector Board

Popular GE EX2100 Excitation Modules

Commonly used related components in GE turbine control systems include:

IS200EDEXG1ADA / G1AFA de-excitation boards
IS200EHPAG gate pulse amplifier modules
IS200EXAMG signal conditioning modules
IS200DSPX control processor boards
EX2100 excitation system platform hardware

Applications

The IS200EDEXG1AFA is widely used in high-energy industrial and power generation environments:

Gas turbine generator shutdown systems
Steam turbine excitation control systems
Combined-cycle power plants
Industrial generator protection systems
Grid stability and voltage control infrastructure

Advantages

This module provides strong engineering and operational benefits:

Ensures safe and rapid dissipation of generator field energy
Enhances turbine protection during shutdown and fault conditions
Supports SCR-based controlled de-excitation for precise energy handling
High reliability under continuous industrial operation
Strong integration with GE EX2100 excitation architecture
Designed for harsh environments with temperature and electrical stress resistance

Technical FAQs

What is the main function of IS200EDEXG1AFA?
It safely discharges stored energy from the generator field during shutdown or faults.
Which system is it used in?
GE EX2100 excitation control system.
How does it perform de-excitation?
Through controlled SCR firing and discharge circuits.
What happens during a turbine trip?
The module immediately triggers rapid energy discharge to protect the system.
What is its operating temperature range?
-40°C to +70°C
What are its physical dimensions?
100 mm × 80 mm × 20 mm
What is its weight?
Approximately 0.5 kg
Does it monitor system conditions?
Yes, it tracks conduction and field current behavior.
Is it suitable for harsh industrial environments?
Yes, it is designed for high-temperature and high-stress operation.
What industries use it most?
Power generation, oil & gas, and heavy industrial energy systems.
