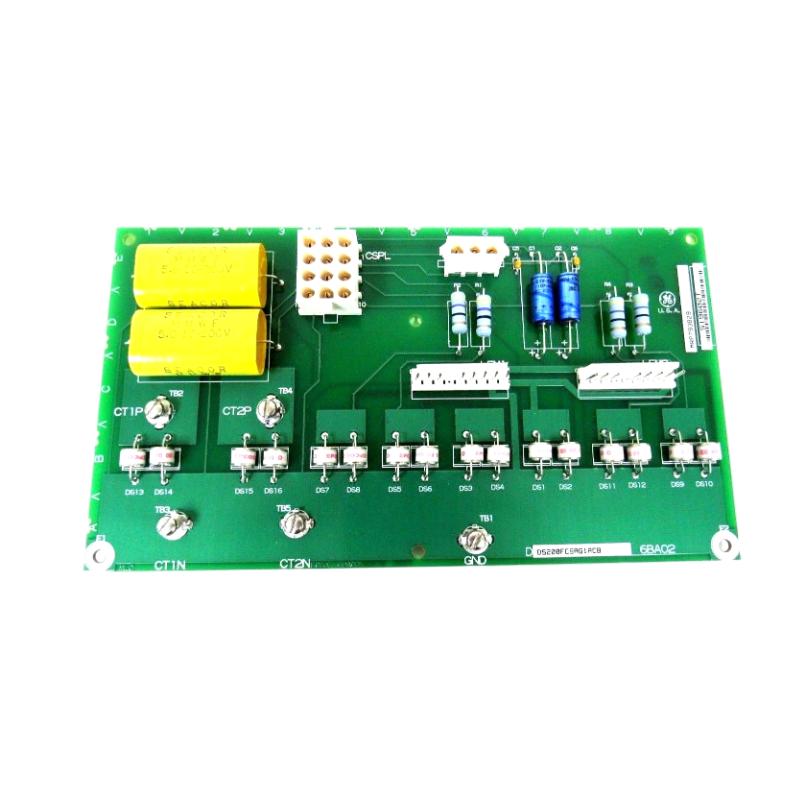

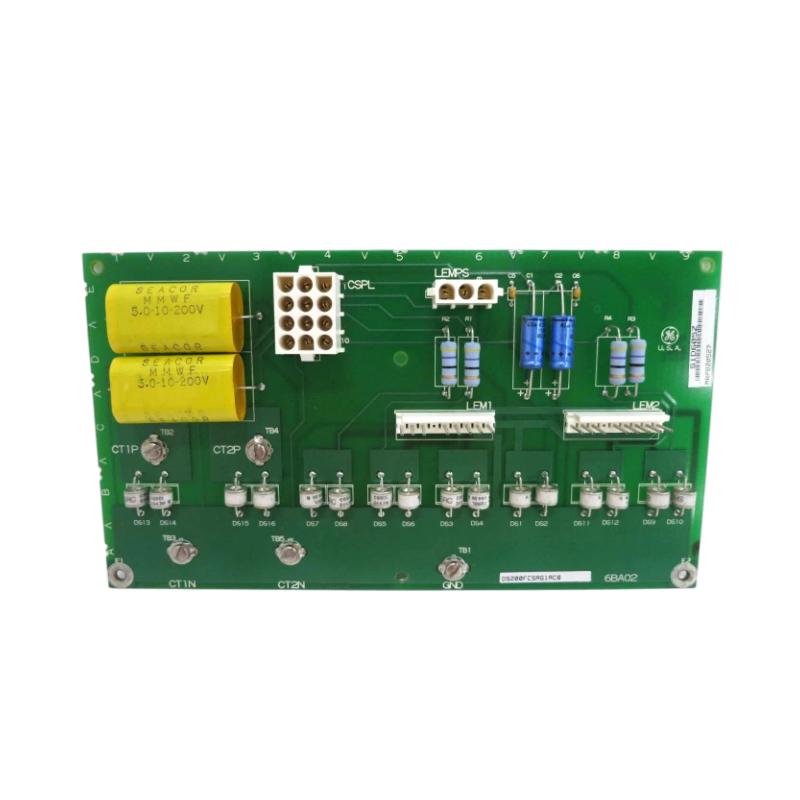

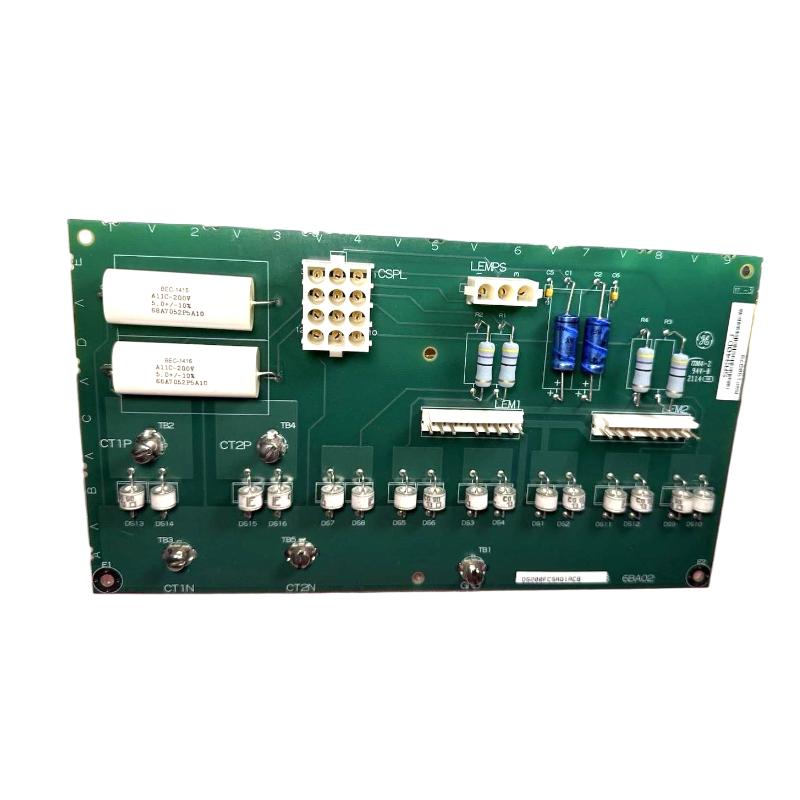

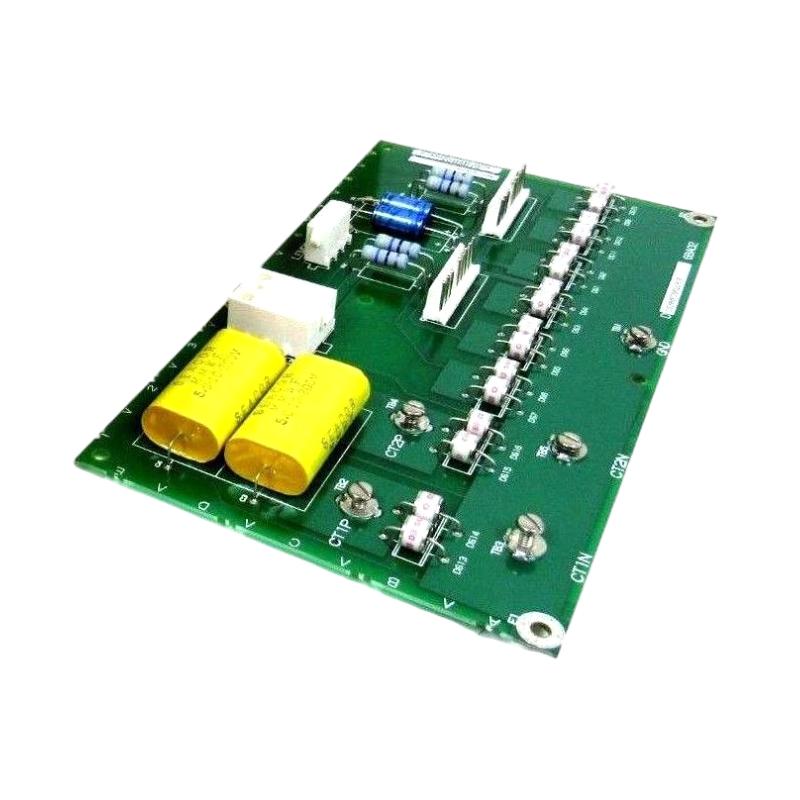

The GE DS200FCSAG1ACB is a Current Sensing Feedback Board used in GE Mark V turbine control and drive systems. It is designed to provide accurate real-time current measurement and feedback within static starter and power conversion cabinets.
In industrial gas turbine applications, this module plays an essential role in monitoring excitation and drive current levels, ensuring stable system operation, protection of power electronics, and precise control of generator starting and running conditions. Its robust design supports reliable performance in high-temperature and high-vibration environments typical of power generation facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | DS200FCSAG1ACB |
| System Series | Mark V Speedtronic Control System |
| Module Type | Current Sensing Feedback / Control Board |
| Function | Real-time current measurement and feedback control |
| Application Area | Static starter power conversion cabinet |
| Input Signals | AC/DC current sensing inputs |
| Communication | System backplane interface |
| Operating Temperature | -20°C to +60°C (turn0search0) |
| Storage Temperature | -40°C to +85°C (turn0search0) |
| Dimensions (L × W × H) | 11 cm × 6 cm × 6.7 cm (turn0search0) |
| Weight | 0.14 kg (turn0search0) |
| Material | High-grade industrial PCB with thermal conductive structure |
| Installation | Rack-mounted Mark V control cabinet module |
Recommended Related Models
For complete GE Mark V drive and turbine control systems, this module is commonly paired with:
- DS200FSAAG Field Supply Amplifier Board
- DS200EXPSG Power Supply Module
- DS200STBAG Terminal Board
- DS200FCSAG series variants
Popular GE Mark V Modules
Widely used components in GE turbine control systems include:
- DS200FCSAG current feedback boards
- DS200FSAAG field supply amplifiers
- DS200EXPSG power supply modules
- DS200DSPC processor control boards
- Mark V Speedtronic system hardware
