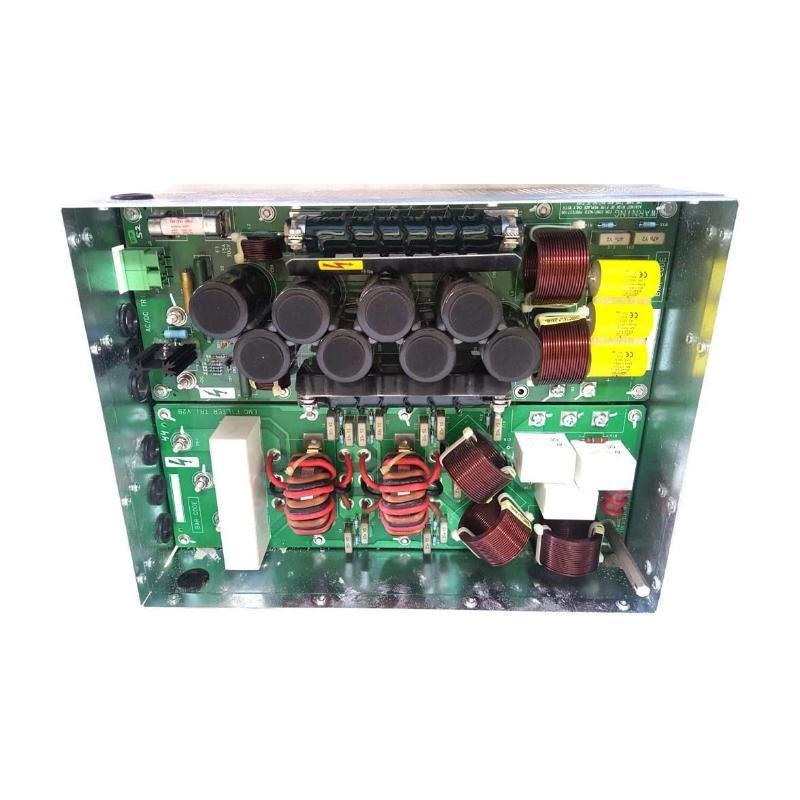

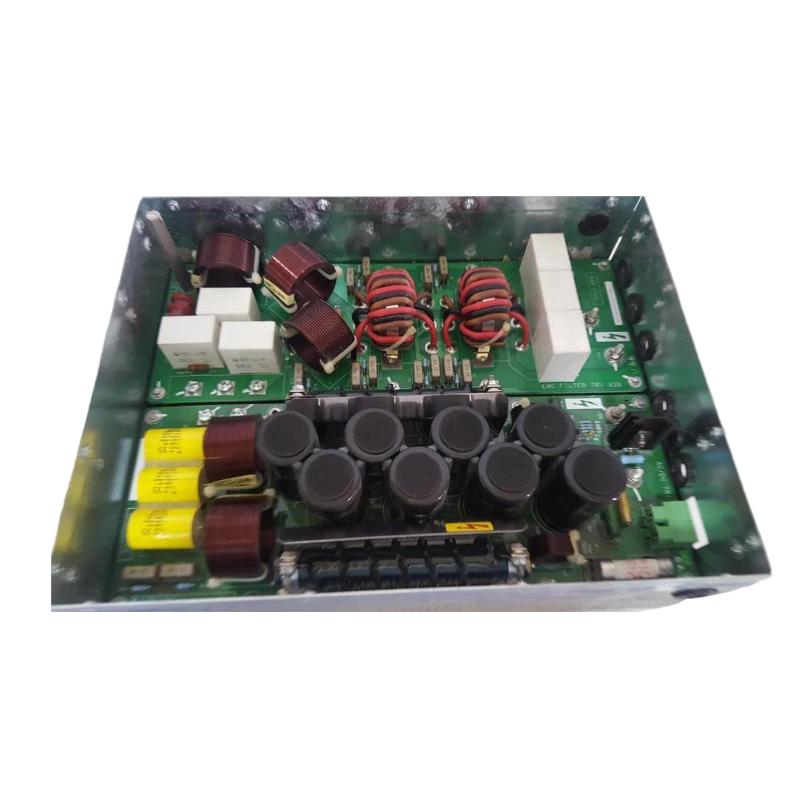

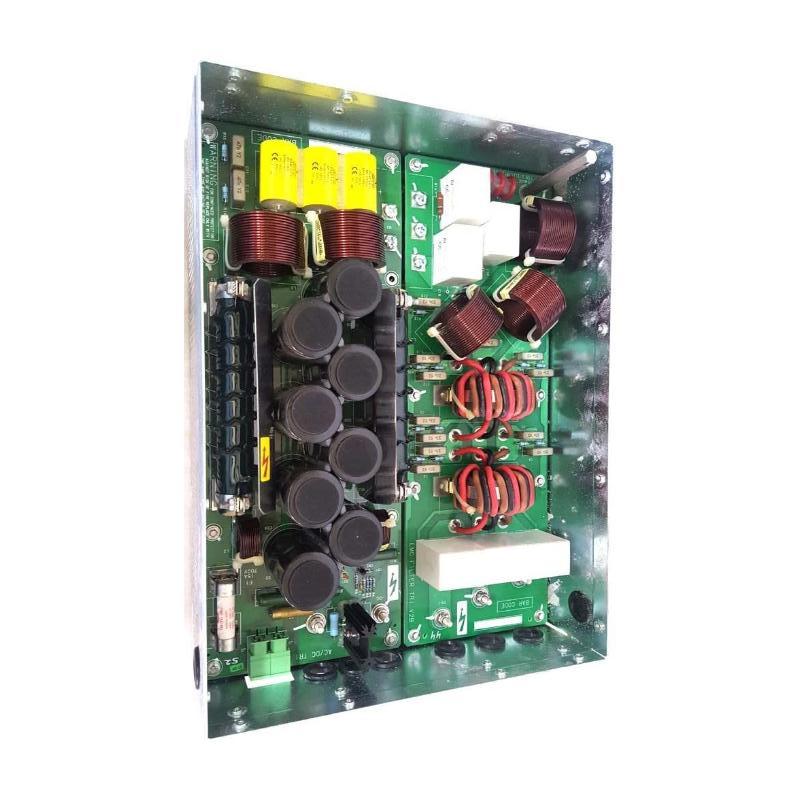

The GE 151X1207CK02SA02 is a Power Interface Board used in GE medium-voltage AC drive systems. It functions as a critical signal and power interface between the drive control processor and the power semiconductor stage, enabling precise gate control of high-power switching devices such as IGCTs or IGBTs.
In industrial drive applications, this module ensures stable power conversion, accurate switching control, and safe coordination between control logic and power electronics. It is widely used in heavy-duty systems such as compressors, pumps, and large motor drive installations in energy-intensive industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | 151X1207CK02SA02 |
| Module Type | AC Drive Power Interface Board |
| System Series | GE Medium Voltage Drive (MVW / MVX family) |
| Function | Gate drive interface + power signal transmission |
| Control Role | Links controller CPU with power switching stage |
| Signal Type | Isolated gate drive + control logic signals |
| Protection Features | Overcurrent, overvoltage, fault isolation |
| Communication | Internal drive backplane interface |
| Operating Environment | High EMI industrial drive cabinet |
