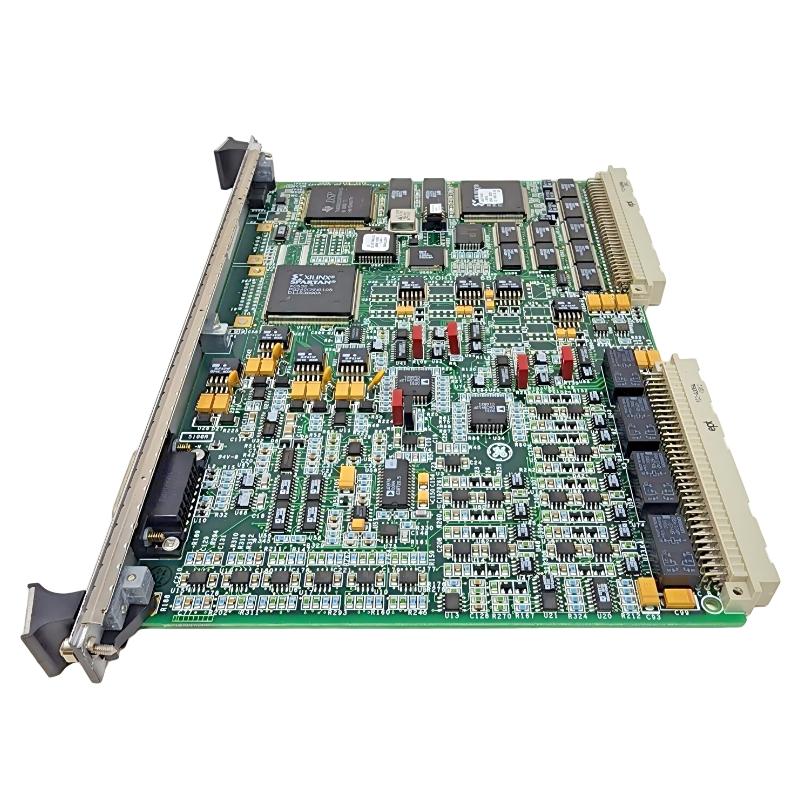

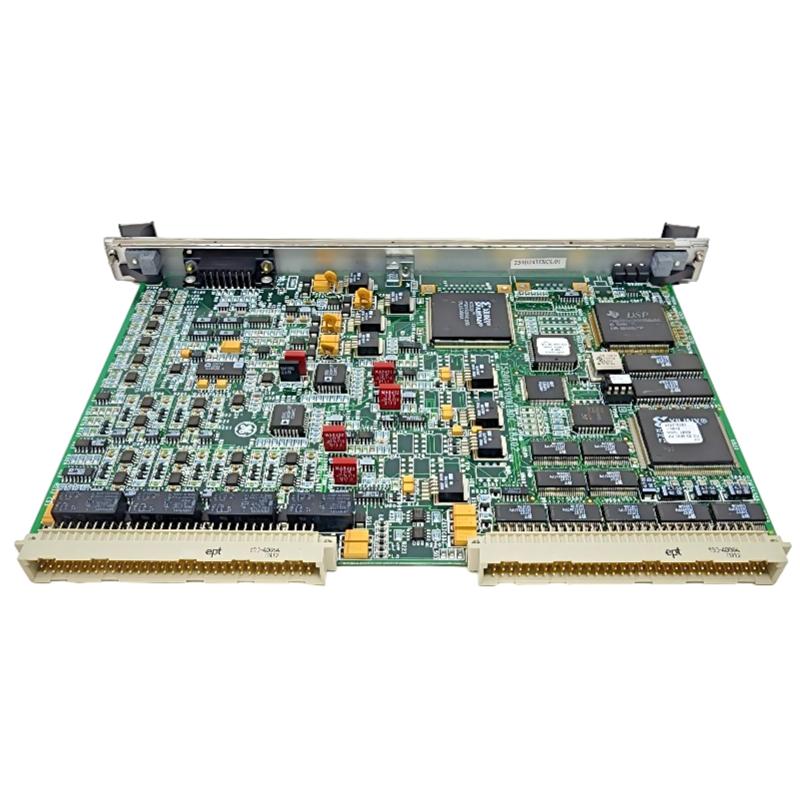

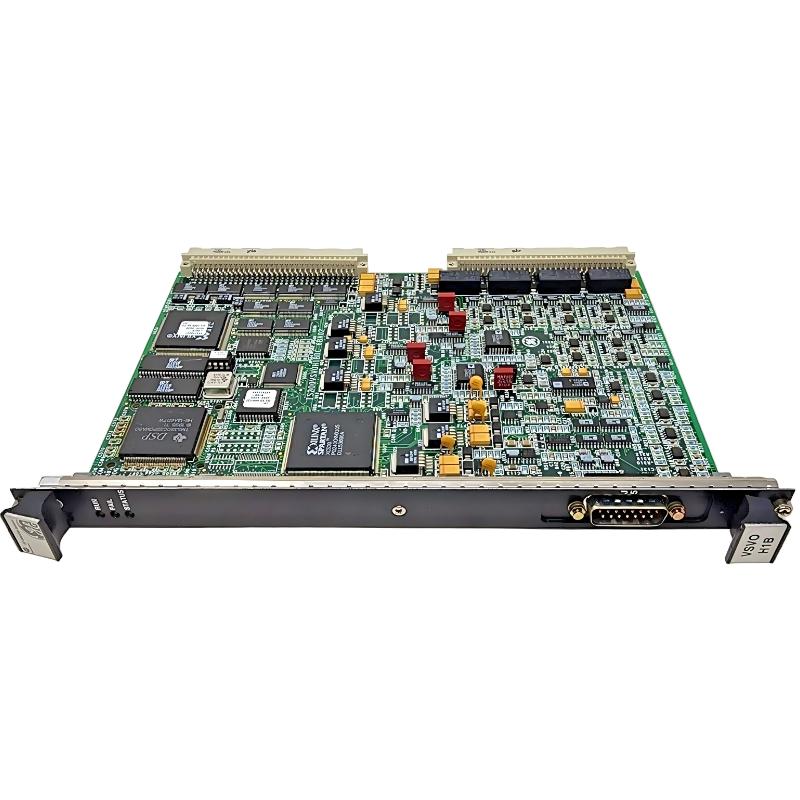

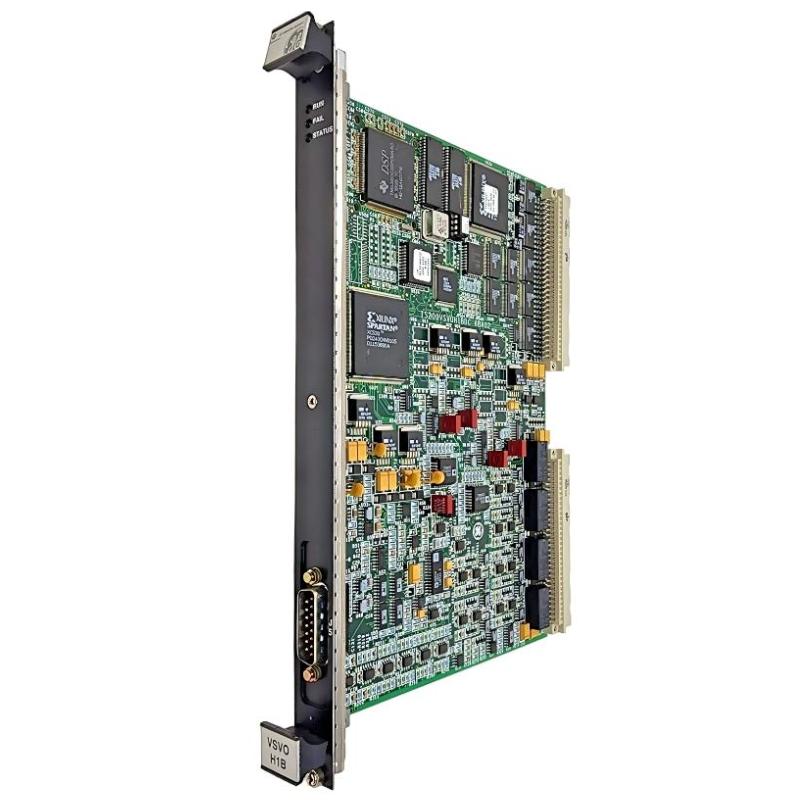

The GE IS200VSVOH1BDC is a Servo Control Board used in GE Mark VI Speedtronic turbine control systems. It is designed to manage electro-hydraulic servo valves that regulate critical turbine functions such as fuel flow, steam control, and inlet guide vane positioning.
This module executes closed-loop control algorithms, processes actuator feedback (LVDT/RVDT), and handles pulse-rate speed inputs to ensure precise mechanical positioning and stable turbine operation in high-demand power generation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | IS200VSVOH1BDC |
| System Series | Mark VI Speedtronic |
| Module Type | Servo Control / VME Interface Board |
| Function | Electro-hydraulic servo valve control + feedback processing |
| Controlled Devices | Fuel valves, steam valves, IGV actuators |
| Feedback Type | LVDT / RVDT / pulse-rate inputs |
| Control Algorithm | PID loop execution (on-board control logic support) |
| Input Frequency Range | 2 – 14 kHz pulse rate inputs |
| Redundancy | Supports simplex and TMR configurations |
| Communication | VME backplane interface |
| Indicators | RUN / FAIL / STATUS LEDs |
| Operating Environment | Industrial turbine control cabinet |
