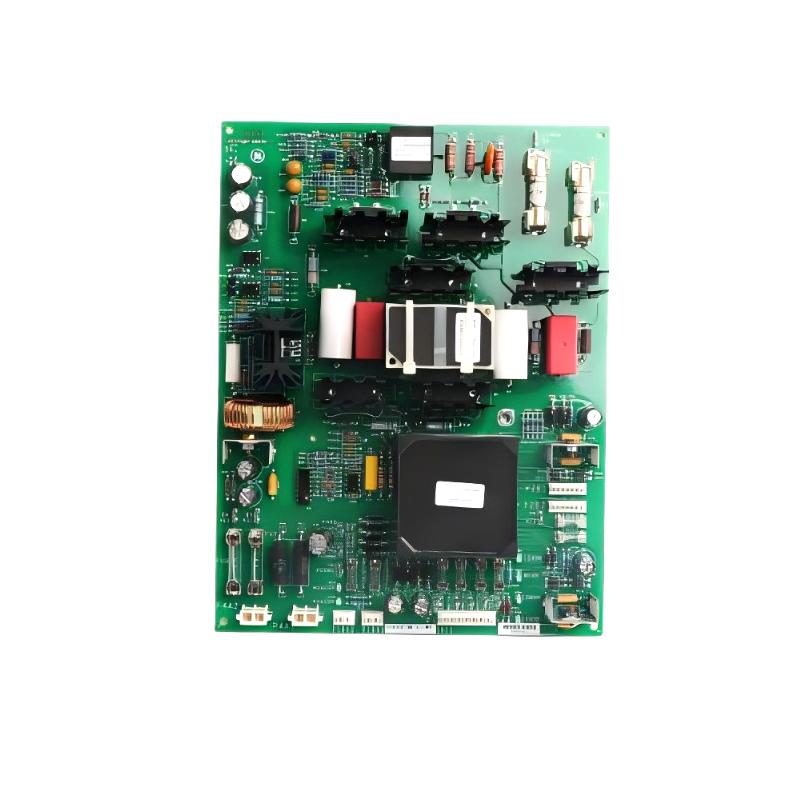

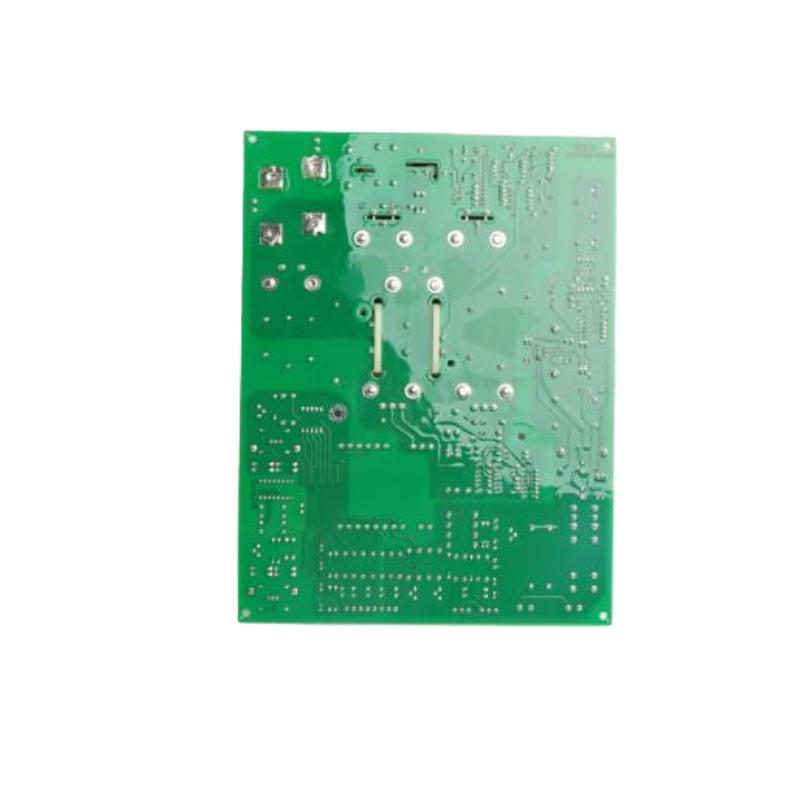

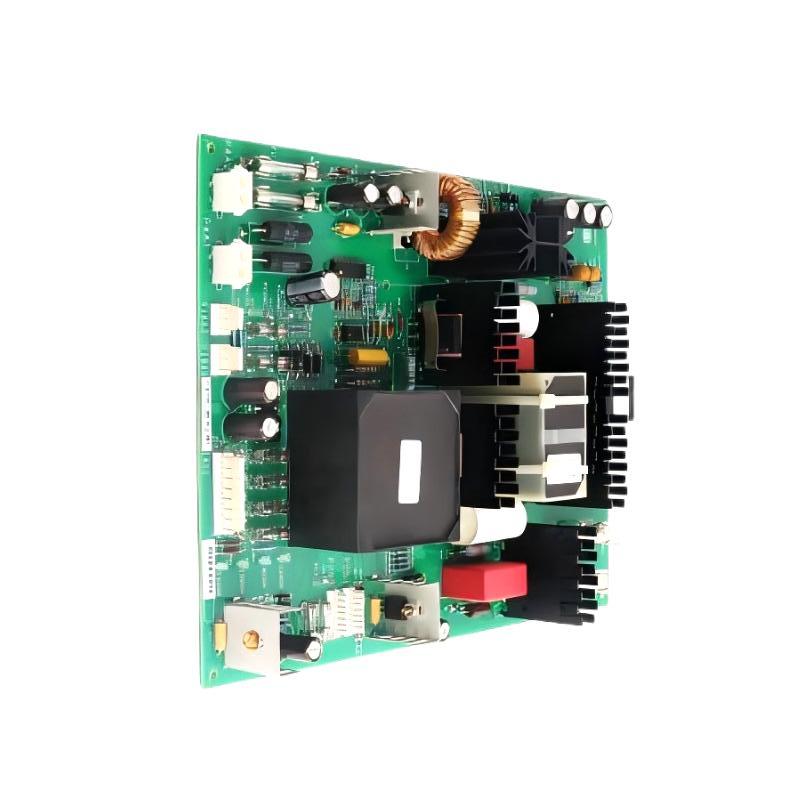

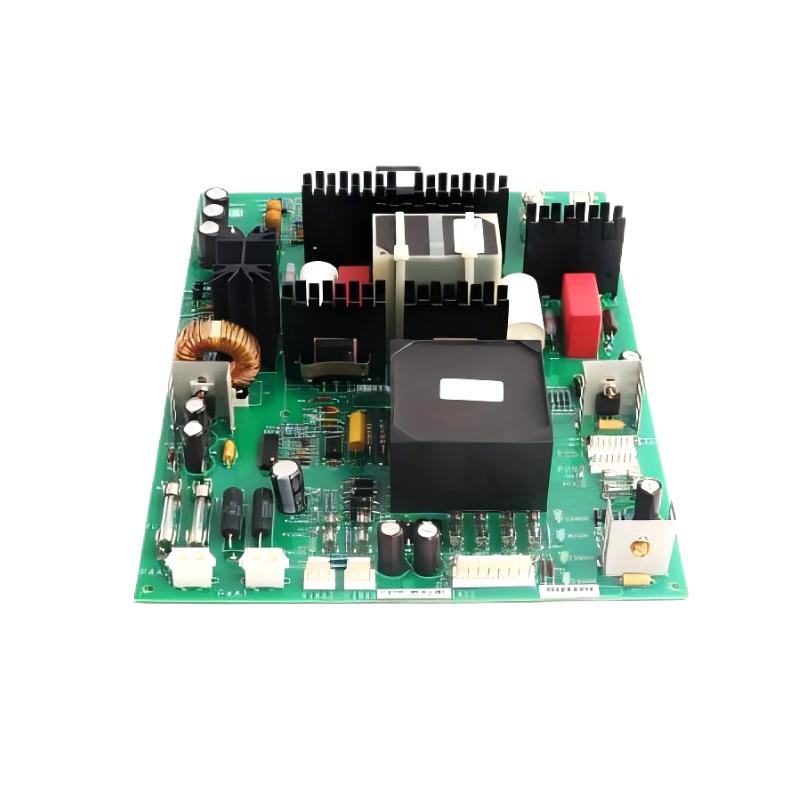

The GE 531X175SSBAYM2 is a Dual Channel BIU (Bridge Interface Unit) Control Board used in GE 531X industrial drive and automation systems, including DC300-related platforms. It functions as a key interface module that manages signal conversion, system communication, and control coordination between drive controllers and peripheral automation components.
This board is designed for legacy GE industrial drive systems where stable signal processing and reliable communication between subsystems are essential. It integrates multiple IC-based circuits, onboard switching logic, and diagnostic indicators to ensure consistent industrial performance in continuous operation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | 531X175SSBAYM2 |
| Series | GE 531X Drive / Interface Series |
| Module Type | Dual Channel BIU Control / Interface Board |
| Function | Signal interface, data processing, drive communication |
| System Compatibility | GE DC300 / 531X industrial drive systems |
| Circuit Design | ~36 integrated circuits architecture |
| Control Features | Jumper configuration, onboard switching logic |
| Indicators | LED status indicators (diagnostic monitoring) |
| Connectors | Multi-pin edge connector + terminal interface |
| Operating Environment | Industrial drive cabinet systems |
