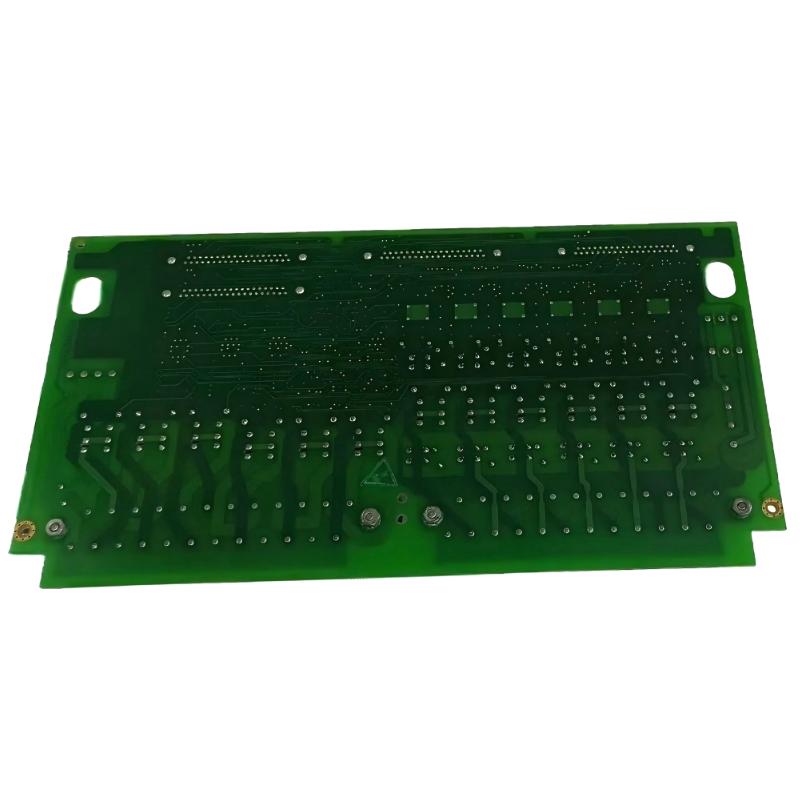

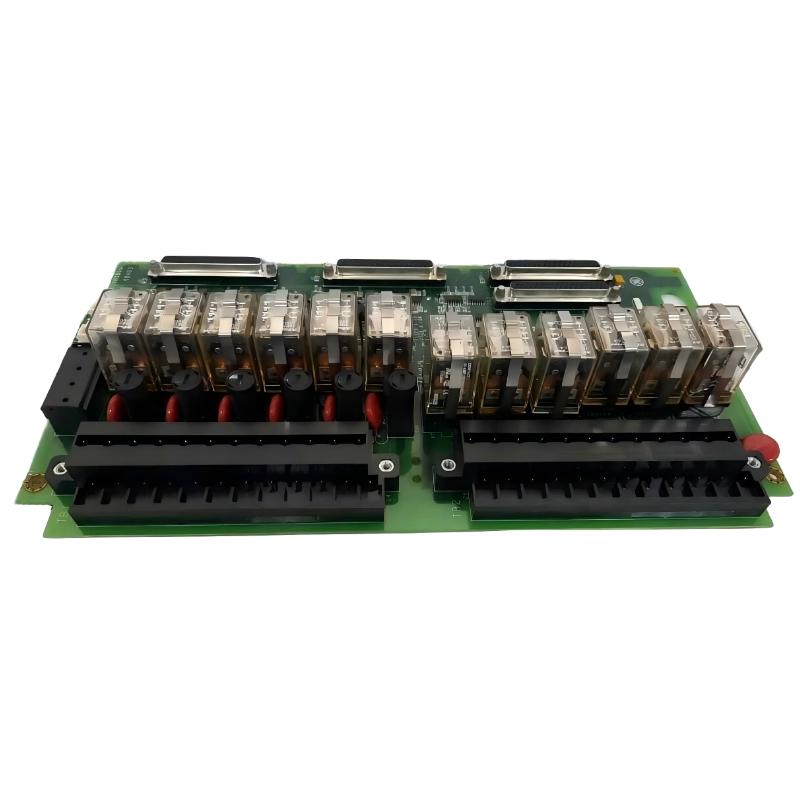

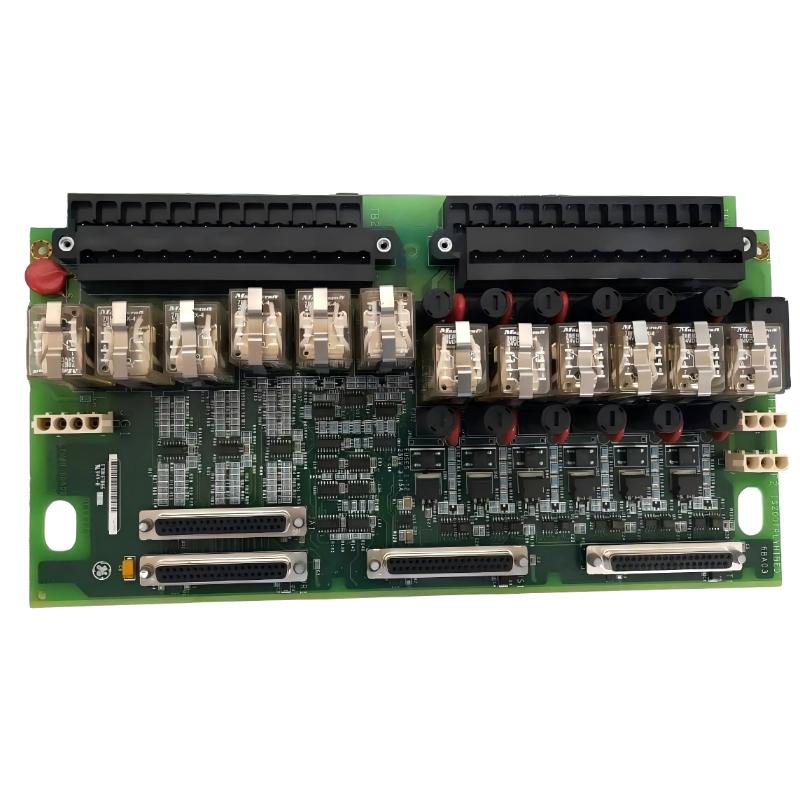

IS200TRLYH1BED-2 IS200TRLYH1BED-4 IS200TRLYH1BED-3 IS200TRLYH1BED-1

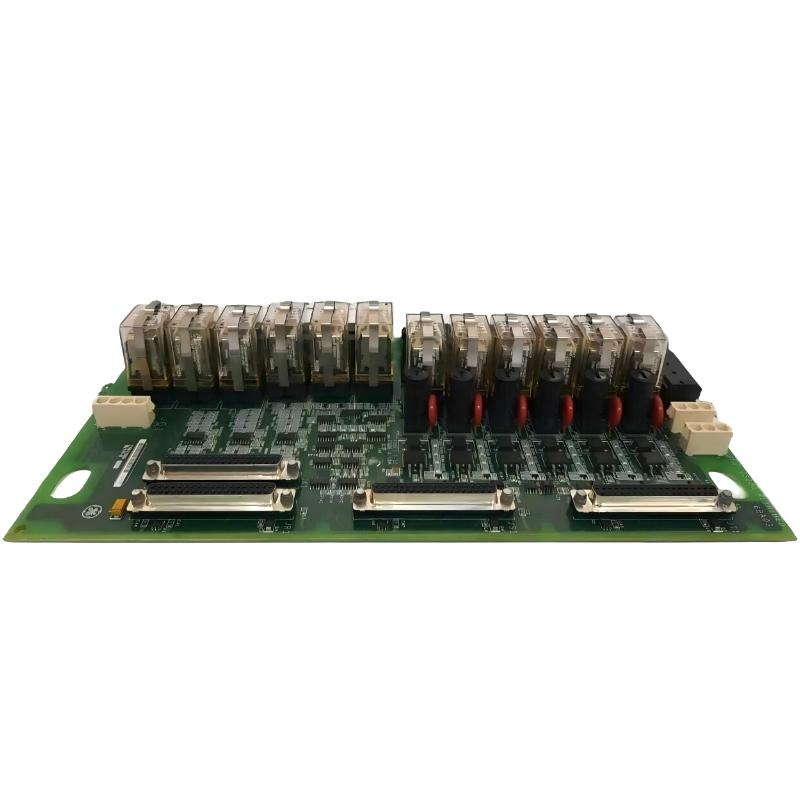

The GE IS200TRLYH1BED Relay Output Terminal Board is an enhanced configuration within the Mark VI turbine control architecture, designed to deliver precise, isolated, and configurable relay switching for industrial automation systems. It plays a key role in executing control commands such as trips, alarms, interlocks, and auxiliary equipment activation in power generation and process control environments.

With a design focused on flexibility and rugged reliability, this module supports multiple relay configurations and power options, making it well-suited for complex turbine control strategies where safety and operational precision are essential.

Technical Specifications

Parameter	Details
Manufacturer	General Electric (GE)
Model	IS200TRLYH1BED
Series	Mark VI Speedtronic
Module Type	Relay Output Terminal Board
Relay Capacity	Up to 12 plug-in magnetic relays
Output Configuration	Dry contact / Form-C selectable
Power Options	24 VDC / 125 VDC / 115–230 VAC
Circuit Protection	On-board fusing & suppression
Control Interface	Mark VI system backplane
Wiring Method	Terminal block / plug-in relay sockets
Operating Environment	Industrial-grade turbine control systems
Dimensions	Approx. 160 × 160 × 120 mm
Weight	Approx. 0.8 kg

This model is designed with jumper-configurable relay circuits, allowing engineers to tailor outputs based on application requirements.

Recommended Related Modules

For full system integration within Mark VI architectures, the following modules are commonly paired:

IS200TREGH1B Trip Emergency Termination Board
IS200TRLYH1B Standard Relay Output Board
IS200TBCIH1C Discrete Input Terminal Board
IS200VAICH1C Analog Input Board
IS215UCVEM06A Control Processor Module

These components collectively ensure coordinated input processing, logic execution, and output actuation.

Popular GE Mark VI System Modules

Engineers frequently deploy these alongside the TRLYH1BED platform:

IS200TSVOH1B Servo Terminal Board
IS200TTURH1B Turbine Control Board
IS200VAICH1D Analog Input Module
IS200DIOH1 Digital I/O Module
IS200TVIBH2BBB Vibration Monitoring Board

Each module contributes to a layered control system architecture designed for high-reliability industrial automation.

Industrial Applications

The IS200TRLYH1BED is widely used in high-demand industrial environments, including:

Gas and steam turbine control systems
Power generation plants
Oil & gas production facilities
Petrochemical processing systems
Industrial automation and safety interlock systems

Its configurable relay architecture enables both control execution and safety logic implementation across critical infrastructure.

Key Advantages

Supports up to 12 configurable relay channels for flexible control
Multiple power input options for system adaptability
On-board protection enhances operational safety
Designed for high-reliability turbine environments
Easy integration with Mark VI control architecture
Supports both dry contact and energized relay configurations

This combination of flexibility and robustness makes it a preferred solution for engineered safety and control systems.

Technical FAQs

1. What is the main function of IS200TRLYH1BED?
It provides configurable relay outputs for turbine and industrial control systems.

2. How many relays does it support?
It can accommodate up to 12 plug-in magnetic relays.

3. Can it switch both AC and DC loads?
Yes, depending on configuration, it supports AC and DC power sources.

4. What types of outputs does it provide?
Dry contact and Form-C relay outputs.

5. Is it suitable for turbine protection systems?
Yes, it is widely used in Mark VI turbine control applications.

6. Does it include built-in protection features?
Yes, it includes fusing and suppression for circuit protection.

7. What is the mounting method?
It is installed in control cabinets using terminal and plug-in relay sockets.

8. Can relay circuits be configured differently?
Yes, jumper settings allow flexible circuit configuration.

9. What industries use this module?
Power generation, oil & gas, and heavy industrial automation.

10. What makes this version different from standard TRLY modules?
The BED variant offers expanded configuration flexibility and multi-voltage support for broader industrial use.
