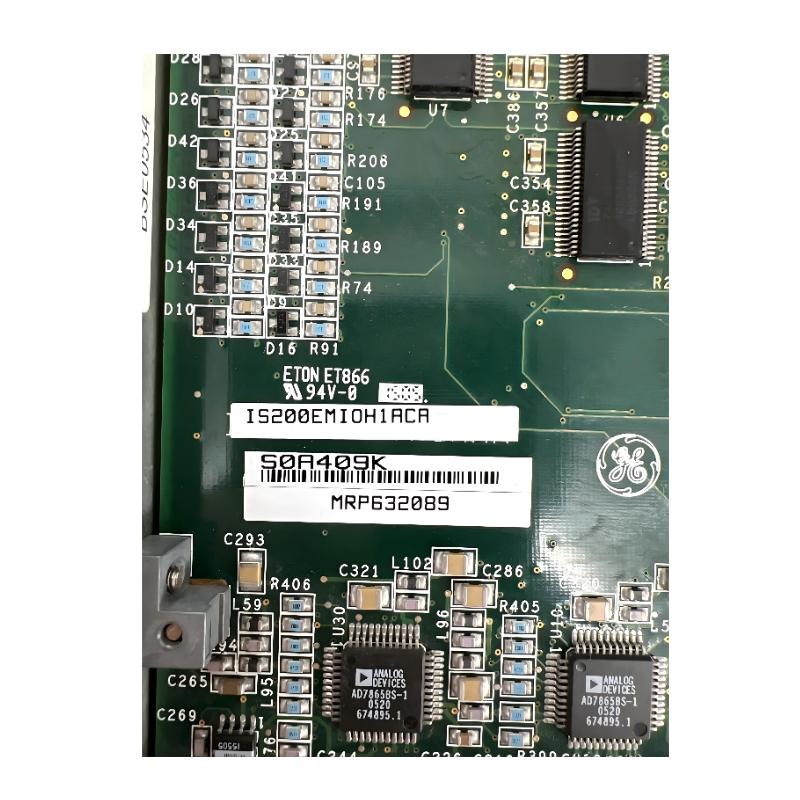

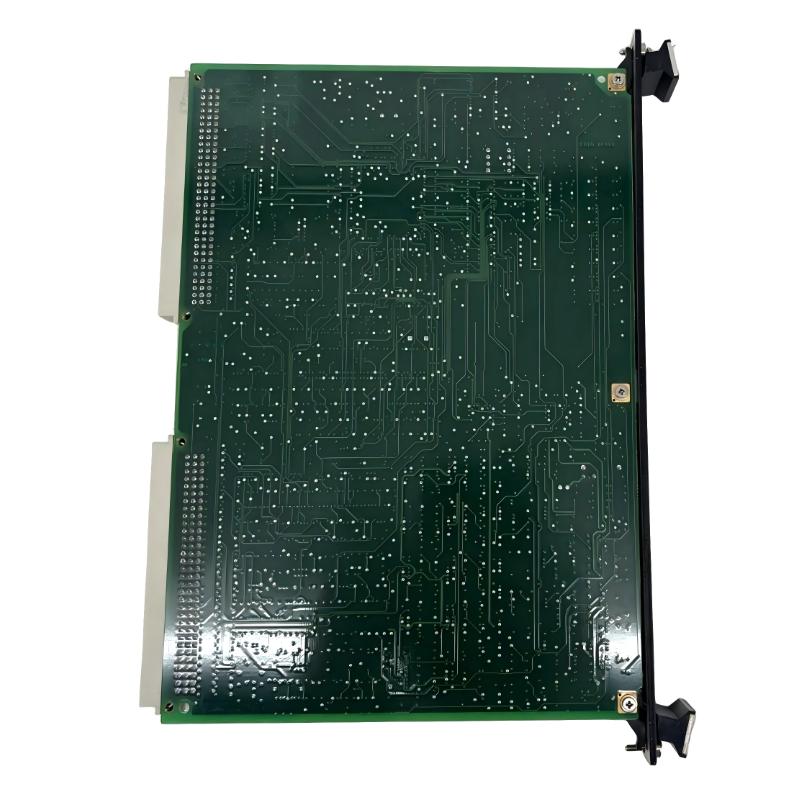

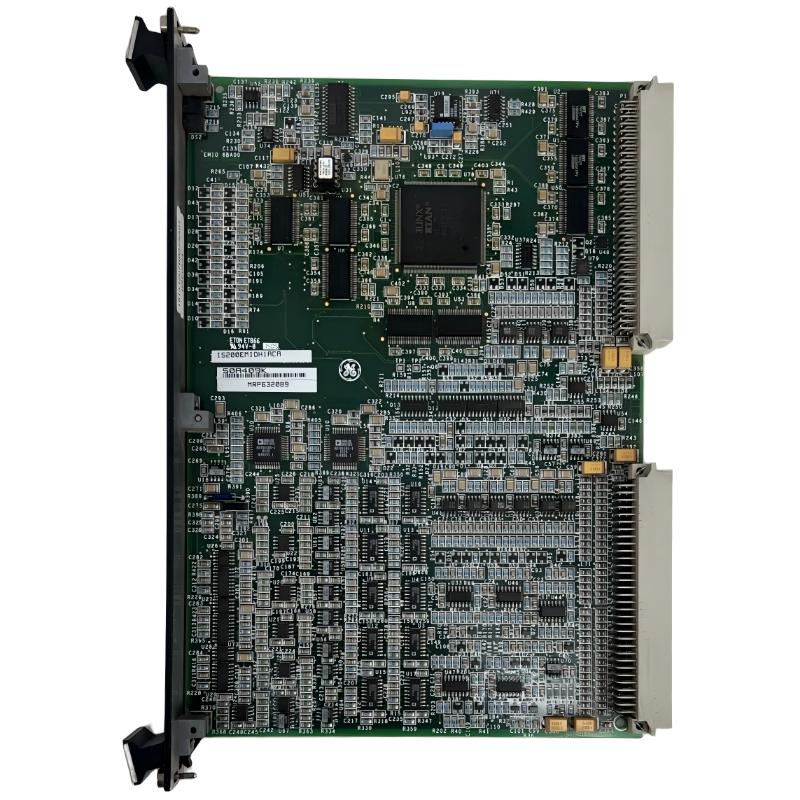

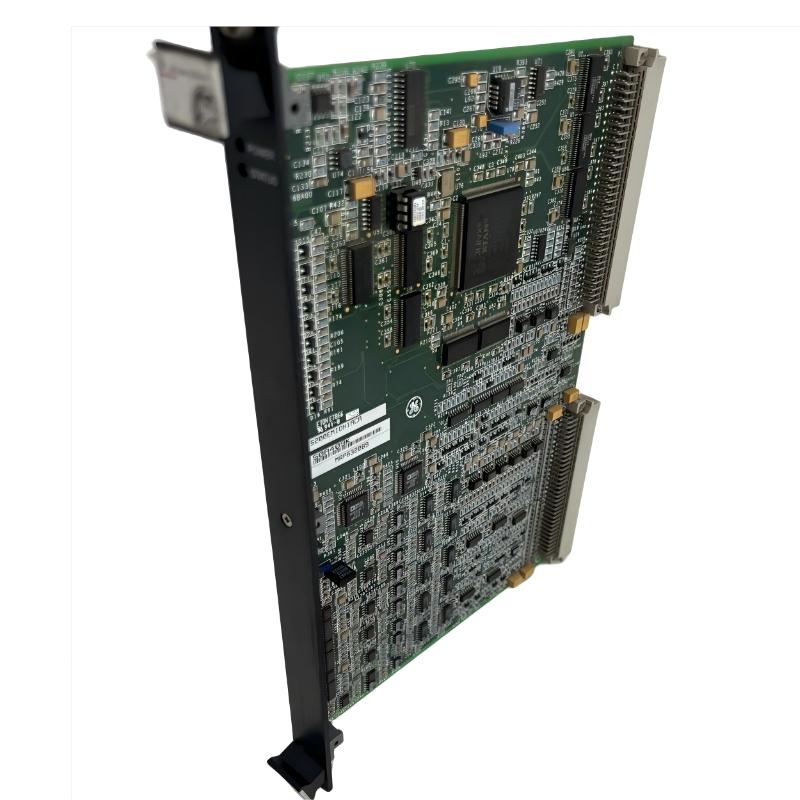

The GE IS200EMIOH1ACA is an Exciter Main I/O (EMIO) Control Board used in GE EX2100 excitation systems within Mark VI turbine control architectures. It serves as the primary interface between field terminal boards and the DSPX control processor, managing high-density analog, digital, and protection-related signal routing.
In industrial turbine excitation systems, this module is essential for coordinating signal flow between external instrumentation and internal control logic, ensuring stable generator excitation, accurate protection response, and seamless system communication.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200EMIOH1ACA |
| Series | EX2100 / Mark VI Excitation System |
| Module Type | Exciter Main I/O Control Board (EMIO) |
| Function | Signal interface & I/O management |
| System Role | Interface between terminal boards & DSPX |
| Input Signal Types | PT, CT, contact inputs |
| Output Functions | Relay drivers, gate pulse signals |
| Connected Terminal Boards | EXTB, EACF, ECTB, EPCT |
| Processor Interface | DSPX excitation controller |
| Communication | Backplane VME / internal system bus |
| Indicator Status | Front panel LED diagnostics |
| Power Supply | 5 VDC via system backplane |
| Operating Temperature | 0°C to 60°C |
| Mounting Type | Single-slot, double-height VME board |
| Dimensions | ~16 × 16 × 12 cm |
| Weight | ~0.3–0.8 kg |
This board is widely recognized as a central signal aggregation node in GE excitation systems, handling both control and protection-level I/O traffic.
System Role & Functional Behavior
The IS200EMIOH1ACA operates as the main communication and signal routing hub inside the excitation control rack:
- Aggregates input signals from multiple terminal boards (EXTB, ECTB, EACF, EPCT)
- Routes PT/CT and contact signals into DSPX processing units
- Sends gate pulse signals to excitation power conversion systems
- Manages relay outputs and pilot trip control logic
- Supports system-level diagnostics through LED indicators
- Ensures coordination between protection, excitation, and control layers
In practice, it acts as the “traffic controller” of excitation system I/O, ensuring every signal reaches the correct processing path without delay or interference.
Recommended Related Modules
For a complete GE EX2100 excitation control architecture, IS200EMIOH1ACA is typically paired with:
- IS200DSPXH1A Excitation Processor Module
- IS200EGPA Gate Pulse Amplifier Board
- IS200EPDMG1ABA Power Distribution Module
- IS200EISBH1AAA ISBus Communication Board
- IS200EXTB Excitation Terminal Board
These modules together form a complete excitation ecosystem covering power, control, communication, and protection.
Common GE Excitation System Modules
Frequently used alongside EMIO boards:
- IS200EACM Analog Control Module
- IS200EDCF Field Interface Board
- IS200EXAM Excitation Assembly Module
- IS200VAICH1C Analog Input Board
- IS200TRLYH1B Relay Output Module
Each contributes to signal acquisition, processing, and actuation in turbine excitation systems.
