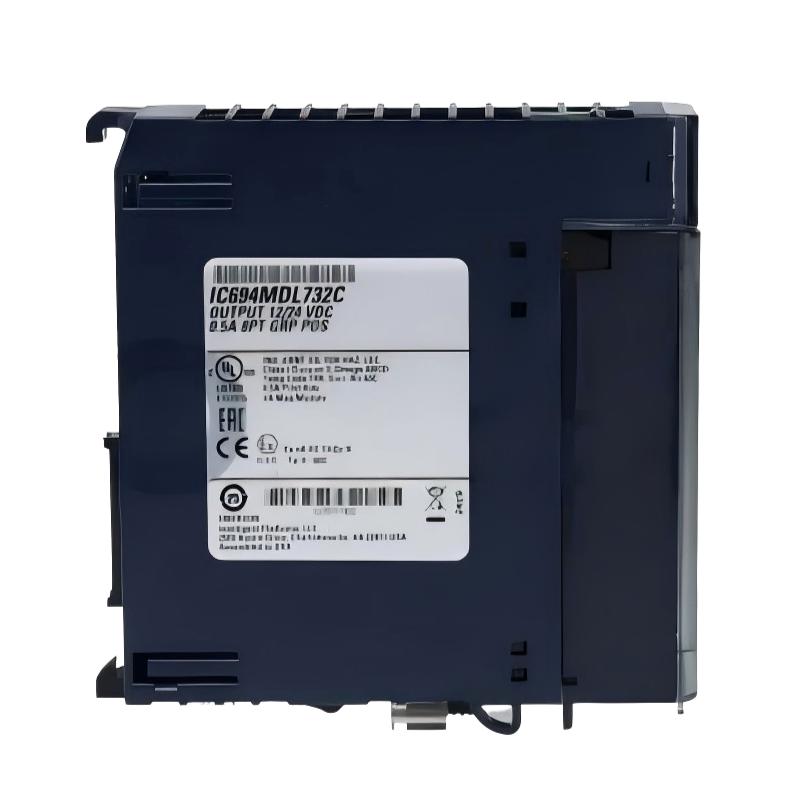

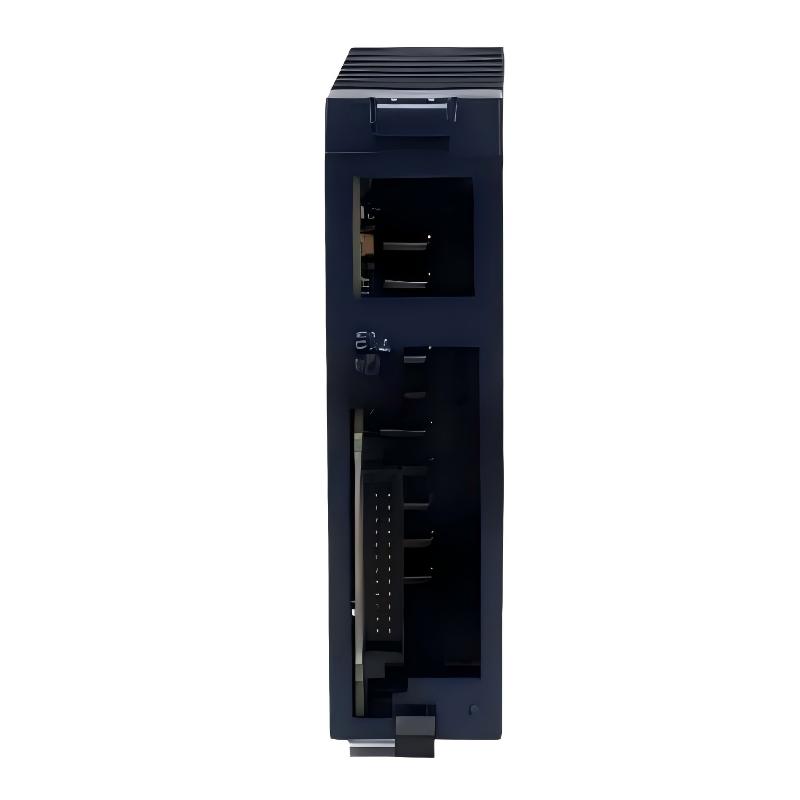

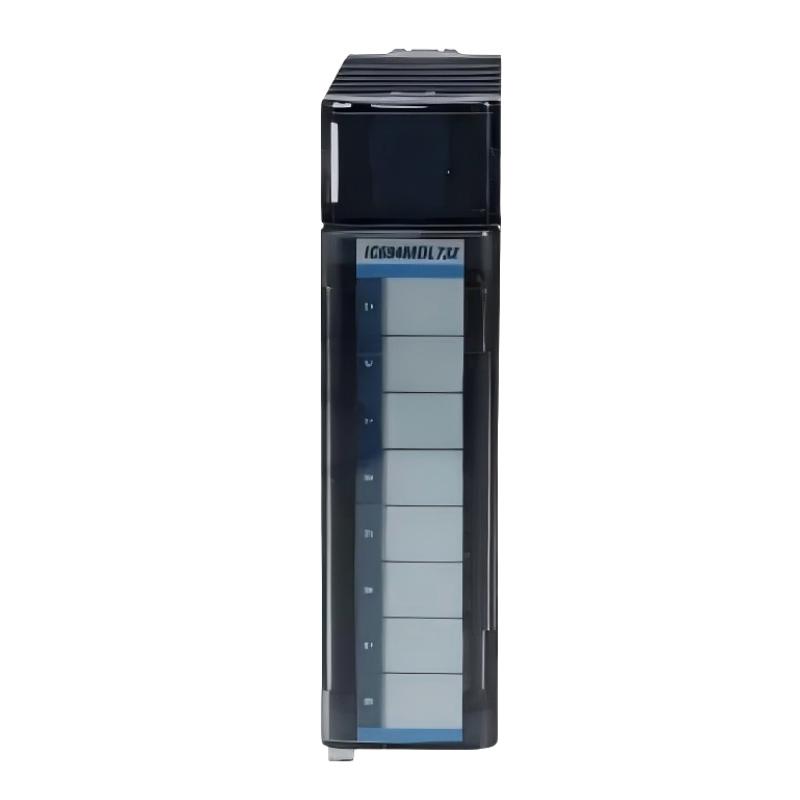

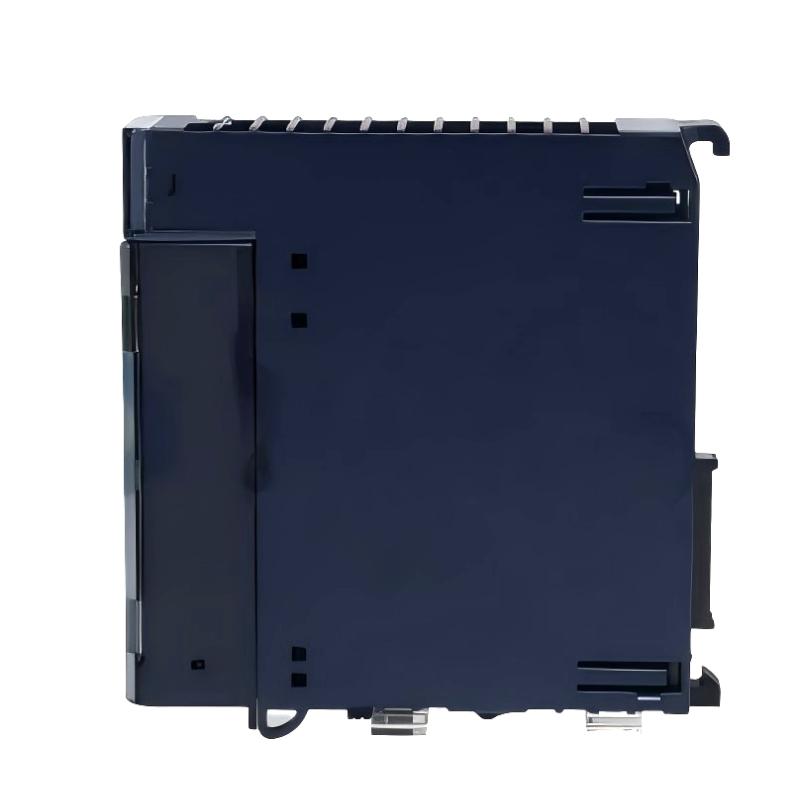

The GE IC694MDL732 is a PACSystems RX3i discrete output module engineered for reliable control of field devices in industrial automation environments. With 8 positive logic DC output channels, it delivers stable switching performance for actuators such as relays, solenoids, and motor starters.
Designed for flexibility and durability, this module is widely used in medium-density control systems where precision, reliability, and easy integration are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | General Electric (GE Fanuc) |
| Model | IC694MDL732 |
| Series | PACSystems RX3i |
| Module Type | Discrete Output Module |
| Output Channels | 8 points (single group) |
| Output Type | Positive logic (sourcing) |
| Rated Voltage | 12 / 24 VDC |
| Voltage Range | 12–24 VDC (+20%, -15%) |
| Output Current | 0.5 A per point / 2 A per common |
| Inrush Current | 4.78 A (10 ms) |
| Output Voltage Drop | Max 1 V |
| Leakage Current | Max 1 mA |
| Response Time | 2 ms ON / 2 ms OFF |
| Isolation | Optical, 250 VAC continuous / 1500 VAC surge |
| Backplane Current | ~50 mA |
| LED Indicators | Per-channel output status |
| Installation | Any RX3i I/O slot |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | 145 × 34 × 140 mm |
| Weight | ~1.3 – 1.36 kg |
The slim modular form factor allows easy installation in high-density RX3i racks while maintaining efficient heat dissipation.
System Role & Functional Behavior
The IC694MDL732 operates as a field output execution module:
- Converts PLC logic commands into 12/24 VDC output signals
- Drives industrial loads such as solenoids, relays, and indicators
- Provides sourcing outputs from a common positive power bus
- Supports hot-swapping for maintenance without system shutdown
- Offers LED-based diagnostics for real-time channel monitoring
- Ensures stable switching even in electrically noisy environments
It acts as the final control layer between PLC logic and physical equipment.
