Honeywell 05701-A-0511 rack faults are often misdiagnosed as sensor or card failures. Field experience shows most issues come from power instability, backplane wear, or grounding loops.

Fault Symptoms

• Multiple channels triggering false alarms
• Intermittent FAULT LEDs across cards
• Random channel resets
• Communication instability with engineering card
• Drift in analog readings across loops

Case Example: Six channels simultaneously triggered alarms during compressor startup, initially misattributed to sensor failure.

Field Dia

1. DC Power Analysis

• Stable 24 V DC → healthy
• Voltage dips → supply or connection issues
• Ripple >300 mV → EMI or shared load problem

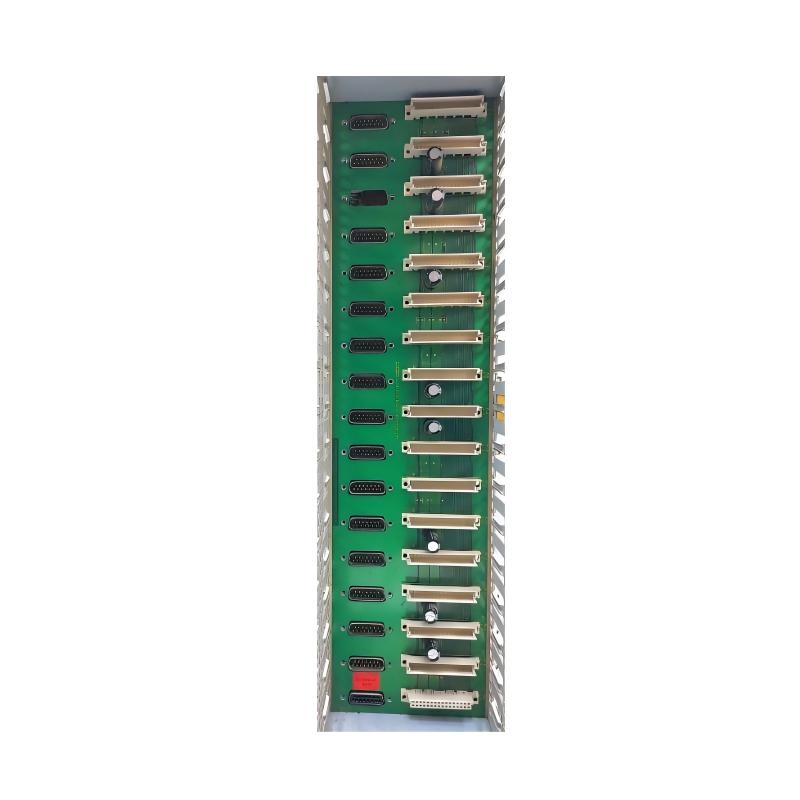

2. Backplane Check

• Inspect connectors for wear or oxidation
• Verify card insertion and latch engagement
• Ensure mechanical locking

Observation: 0.3 mm misalignment caused intermittent faults across multiple channels.

3. Grounding Analysis

• Use single-point grounding
• Separate signal and power grounds
• Ground potential difference <1 Ω

After correcting grounding topology, false alarm rate dropped ~95%.

Common Field Failure Modes

• Power Distribution Instability: multi-channel alarms, system resets → replace PSU/re-terminate wiring
• Backplane Contact Degradation: intermittent channel loss → clean contacts or replace rack
• EMI Coupling: synchronized alarm spikes → reroute cables and shield

Field Recovery Case Study

Scenario: 5–8 channels triggered A2 alarms simultaneously while process stable.

Diagnosis:

• DC bus sag (24.0 V → 22.7 V)
• Shared supply with heavy motor loads
• Rack grounding not isolated

Actions:

• Dedicated DC supply installed
• Single-point grounding implemented
• Cards re-seated and secured

Result: System stabilized; no false alarms under full load.
