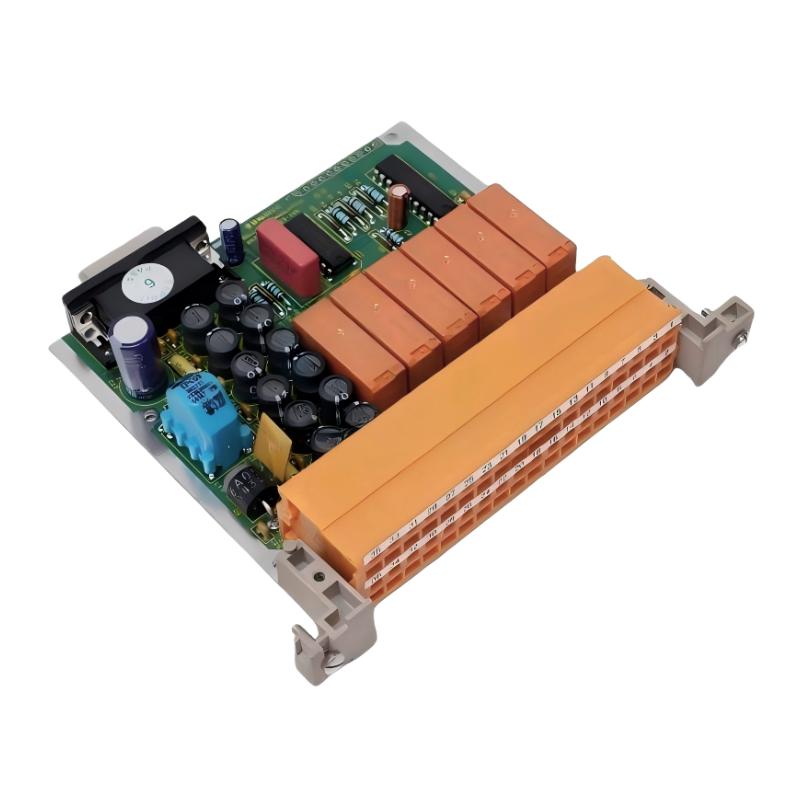

Honeywell 05704-A-0123 faults are often misdiagnosed as base relay or control card issues. Field evidence shows most failures originate from expansion mapping errors, incorrect slot installation, or relay wiring misconfiguration.

Fault Symptoms in Field Operation

• Partial alarm outputs not activating
• Expansion relays not responding while base relays work
• Incorrect shutdown logic execution
• Intermittent relay switching under vibration
• ESD system not receiving full alarm set

In one chemical plant, only 50% of expected shutdown signals were triggering, initially suspected as control card failure.

Field Diagnostic Method

1. Expansion Slot Verification

• Confirm correct physical slot pairing
• Check adjacency to base relay card
• Inspect backplane connector seating

A 0.2–0.3 mm misalignment caused intermittent relay mapping failure in a live system.

2. Relay Mapping Configuration Check

• Verify software configuration table
• Ensure correct assignment of A1/A2/A3/fault signals
• Check for duplicated output mapping

Incorrect mapping caused missing shutdown signals in multiple field cases.

3. Electrical Load and Contact Inspection

• Measure relay continuity under load
• Check for contact wear or oxidation
• Verify voltage stability on DC supply

Voltage dips during motor start can cause relay dropout in marginal systems.

Common Field Failure Modes

Expansion Misconfiguration (Most Frequent)

• Symptoms: missing relay outputs
• Fix: reconfigure mapping and verify pairing

Mechanical Seating Issues

• Symptoms: intermittent output loss
• Fix: reseat card and tighten mounting

Electrical Noise Interference

• Symptoms: relay chatter or unstable switching
• Fix: add suppression, improve grounding

Field Recovery Case Study

Scenario: Emergency shutdown signal not reaching ESD system.

Diagnosis:

• Base relay outputs functional
• Expansion relay (05704-A-0123) not triggering
• Incorrect slot pairing found between base and expansion cards

Corrective Actions:

• Reinstalled expansion card in correct slot
• Rebuilt relay mapping table
• Verified full alarm chain response

Result:
Full shutdown logic restored; system passed functional safety test.
