Schneider ATV650D90N4E variable speed drive installation problems are usually caused by incorrect motor data configuration, unsuitable cable selection, poor grounding, insufficient ventilation, or improper control settings rather than drive hardware failure. In industrial process applications, a VSD can complete startup checks successfully while still producing unstable motor operation because the commissioning parameters do not match the actual pump, fan, or process load.

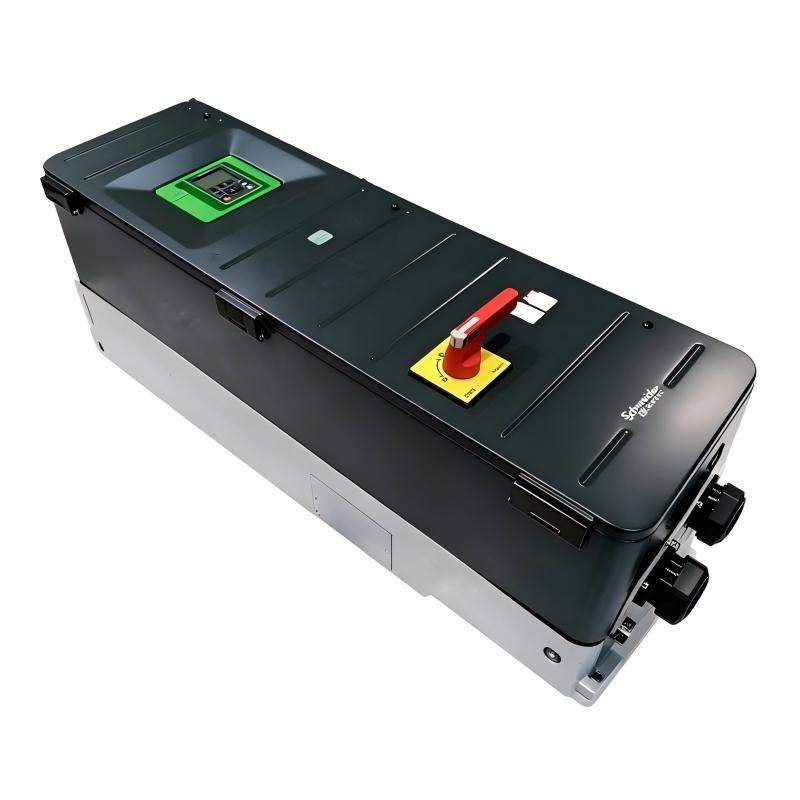

The Schneider ATV650D90N4E Variable Speed Drive is part of the Altivar Process ATV600 series and is designed for demanding industrial motor control applications. It supports three-phase 380–480 V AC systems and is rated for 90 kW normal-duty motor applications, with IP55 protection and integrated process control functions.

Schneider ATV650D90N4E Variable Speed Drive Application Overview

The ATV650D90N4E controls motor speed by converting fixed-frequency AC power into adjustable-frequency output power, allowing industrial equipment to operate according to process requirements.

Typical system structure:

Three Phase AC Power Supply
            |
            |
Schneider ATV650D90N4E Variable Speed Drive
            |
            |
Three Phase AC Motor
            |
            |
Pump / Fan / Compressor / Process Equipment

Main functions:

• Variable motor speed control
• Energy optimization
• Motor protection
• Process monitoring
• Industrial automation integration

Typical applications:

• Water treatment pumps
• HVAC systems
• Industrial fans
• Process circulation systems
• Compressor applications

The ATV650D90N4E is commonly used where stable speed regulation, process monitoring, and reliable motor protection are required.

In one industrial pumping station commissioning project, engineers installed an ATV650D90N4E to replace a fixed-speed motor starter.

During initial startup:

• Drive power status: Normal
• Display operation: Normal
• Motor speed: Unstable
• Pump pressure: Fluctuating

The engineering team first suspected a motor mechanical issue.

Field investigation included:

• Checking motor wiring
• Reviewing drive parameters
• Measuring motor current
• Testing speed reference signals

Measured condition:

Before correction:

• Supply voltage: 400 VAC
• Motor current fluctuation: High
• Speed command: Unstable
• Pump output pressure: Variable

The investigation found that the analog reference signal was affected by incorrect cable routing.

After correcting the control wiring:

• Speed command became stable
• Motor current decreased
• Pump operation returned to normal

The problem was caused by installation practice, not drive failure.

Schneider ATV650D90N4E Installation Preparation and Engineering Planning

Before installing the ATV650D90N4E, engineers should evaluate the complete motor-drive-process system.

Preparation requirements:

• Confirm motor rated voltage
• Verify motor full-load current
• Check power capacity
• Review cabinet installation conditions
• Prepare control wiring diagrams

Installation checklist:

A common field mistake is selecting a VSD only according to motor power.

Engineers should also consider:

• Load torque characteristics
• Starting requirements
• Continuous operating speed
• Environmental conditions

For example:

Pump applications usually require:

• Smooth acceleration
• Stable low-speed operation
• Energy-saving control

Heavy process equipment may require:

• Higher torque capability
• Different acceleration settings
• Additional protection adjustments

Schneider ATV650D90N4E Electrical Wiring Installation

Correct electrical installation directly affects drive reliability.

Power Input Wiring

Engineers should verify:

• Three-phase input connection
• Correct voltage level
• Protective devices
• Terminal tightening

Motor Output Wiring

Check:

• U/V/W motor connection
• Motor grounding
• Cable insulation

Control Wiring

Verify:

• Start and stop commands
• Analog input signals
• Communication connections
• Safety control circuits

During one field installation:

Initial condition:

• Drive started normally
• Motor operation unstable at low speed

Inspection results:

• Power wiring: Correct
• Motor wiring: Correct
• Control cable installation: Incorrect

The signal cable was installed close to high-current power cables.

After correction:

• Signal interference disappeared
• Speed regulation improved
• Process output became stable

Schneider ATV650D90N4E Setup and System Configuration

The commissioning stage determines the final performance of the variable speed drive.

Important parameters include:

• Motor voltage
• Motor current
• Motor frequency
• Acceleration time
• Deceleration time
• Control mode
• Speed reference source

Typical commissioning logic:

IF Motor_Data = Correct
AND Wiring_Check = Passed
AND Control_Command = Valid

THEN

Enable Motor Control

Engineers should verify:

• Motor rotation direction
• Running current
• Speed response
• Protection functions

A common commissioning mistake is using default parameters without entering actual motor nameplate data.

Incorrect motor data may cause:

• Poor torque performance
• Excessive current
• Speed instability
• Protection trips

Schneider ATV650D90N4E Commissioning Validation and Performance Testing

Final commissioning should include complete operational testing.

Motor Running Test

Verify:

• Start command response
• Acceleration performance
• Speed stability
• Stop operation

Process Performance Test

Check:

• Pump flow
• Fan airflow
• Pressure stability
• Energy consumption

Example commissioning results:

Before optimization:

• Motor current variation: High
• Process output: Unstable
• Speed control response: Slow

After optimization:

• Stable motor current
• Accurate speed control
• Continuous process operation

A successful Schneider ATV650D90N4E installation requires correct wiring, accurate parameter configuration, and field-based commissioning validation.
