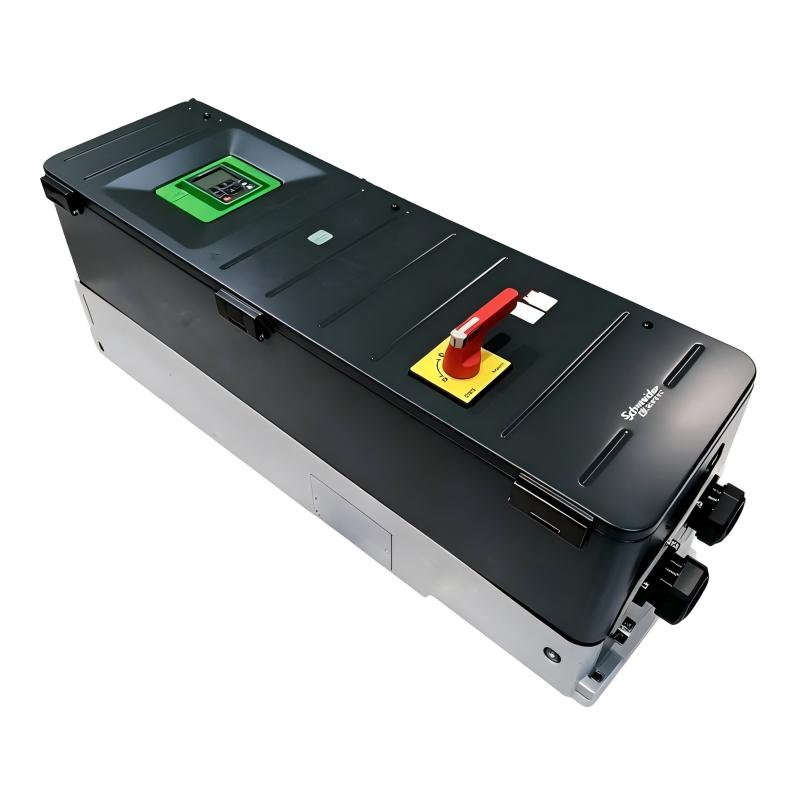

Schneider ATV650D90N4E variable speed drive faults are commonly caused by motor overload, incorrect acceleration settings, poor cooling conditions, unstable power supply, or mechanical system problems rather than immediate drive hardware damage. In industrial troubleshooting, engineers should analyze the complete motor-drive-load system before replacing the VSD.

This article describes a field case where an ATV650D90N4E repeatedly stopped during high-demand pump operation.

Schneider ATV650D90N4E Variable Speed Drive Fault Symptoms

Typical fault symptoms include:

• Drive trips during operation
• Motor speed decreases unexpectedly
• Overcurrent alarm appears
• Process output becomes unstable
• Manual reset is required

Field case:

A factory cooling water system experienced repeated drive shutdowns during peak production periods.

Initial observations:

• PLC command signal: Normal
• Drive display: Active
• Motor stopped after increasing load

The maintenance team suspected:

• Drive power section failure
• Motor insulation problem
• Control board fault

Engineers started troubleshooting from the entire system.

Schneider ATV650D90N4E Fault Diagnosis Process and System Analysis

Troubleshooting path:

Power Supply
      |
      |
ATV650D90N4E Variable Speed Drive
      |
      |
AC Motor
      |
      |
Pump Load

Engineers checked:

• Input voltage stability
• Drive fault records
• Motor current
• Mechanical load condition

Diagnostic results:

• Supply voltage: Normal
• Drive cooling: Normal
• Motor current: Increased during high load

The fault was related to application conditions.

Schneider ATV650D90N4E Overcurrent Fault Investigation

Field measurements:

Before repair:

• Supply voltage: 400 VAC
• Motor current: 145% rated current
• Operating frequency: 50 Hz
• Fault occurrence: Several times per week

Engineers analyzed:

• Motor nameplate information
• Drive current settings
• Pump operating condition

The investigation found:

• Pump system resistance increased
• Mechanical load was higher than original commissioning conditions

The drive protection function operated correctly.

Schneider ATV650D90N4E Root Cause Analysis and Recovery

The final root cause was increased mechanical load combined with unchanged drive settings.

Original condition:

• Pump operated under normal flow conditions
• Drive parameters matched the application

New condition:

• Pipeline resistance increased
• Pump required higher torque

Failure pattern:

Normal operation:

• Motor current within range

Fault condition:

• Increased load demand
• Higher output current
• Drive protection activated

Engineering conclusion:

The issue was caused by application changes, not VSD hardware failure.

Schneider ATV650D90N4E Troubleshooting Repair and System Recovery

Corrective actions:

Drive Parameter Optimization

Performed:

• Reviewed motor data
• Adjusted acceleration settings
• Verified current limits

Mechanical System Inspection

Checked:

• Pump condition
• Valve operation
• Pipeline resistance

Final results:

Before repair:

• Drive trips: Multiple weekly events
• Production interruption: Frequent

After repair:

• Stable pump operation
• No overcurrent trips
• Continuous operation restored

Schneider ATV650D90N4E Common Fault Patterns and Diagnostic Methods

Overcurrent Fault

Symptoms:

• Drive stops during heavy load
• Motor current increases rapidly

Diagnosis:

• Measure motor current
• Check mechanical load
• Review acceleration settings

Overvoltage Fault

Symptoms:

• Drive trips during deceleration
• DC bus voltage increases

Diagnosis:

• Increase deceleration time
• Check load inertia
• Review braking requirements

Overtemperature Fault

Symptoms:

• Drive stops after long operation
• Temperature warning appears

Diagnosis:

• Check cabinet ventilation
• Inspect cooling airflow
• Verify ambient temperature

Schneider ATV650D90N4E Long-Term Maintenance Strategy

For reliable operation:

• Record drive fault history
• Monitor motor current trends
• Maintain cooling conditions
• Check power connections
• Backup configuration parameters

A practical engineering rule:

“When an ATV650D90N4E fault occurs, diagnose the complete motor-drive-process system before replacing the variable speed drive.”

Recommended troubleshooting sequence:

Power supply inspection → Fault history review → Motor condition check → Parameter verification → Mechanical load analysis → Final operation test.
